S321M-ZPGZ (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015
Engine KFDET
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1504)4FC..PS1

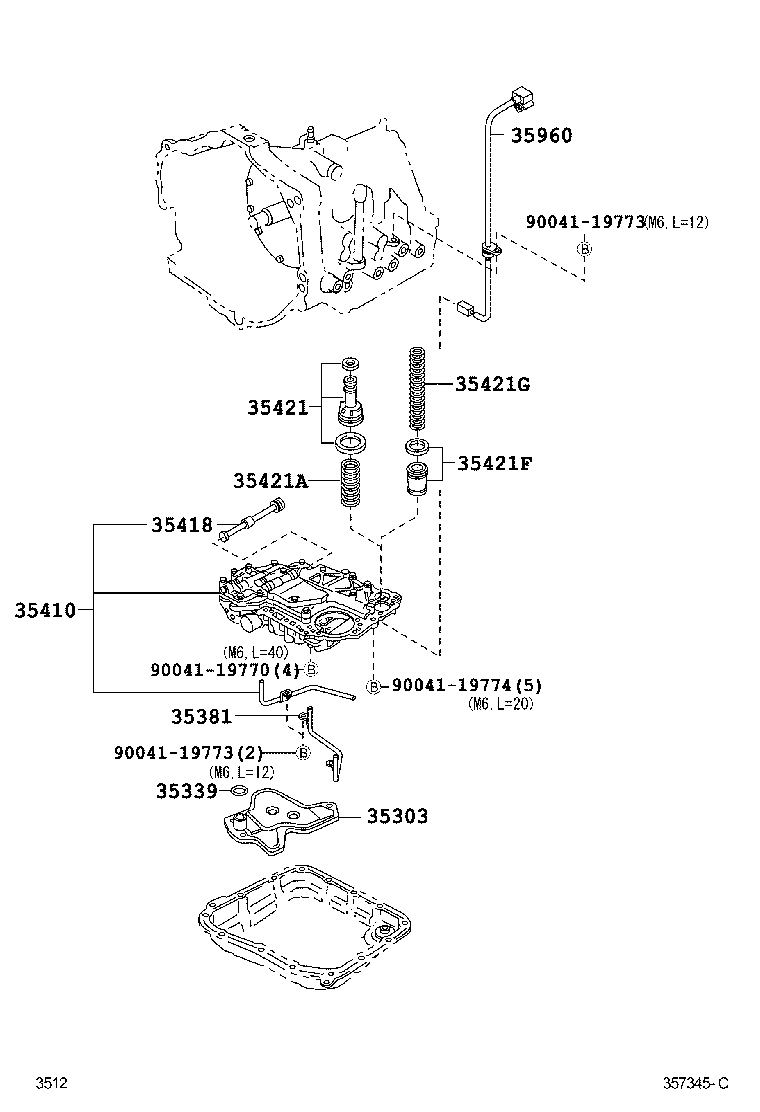

Click highlighted areas on diagram

diagram 35303 35339 35381 35410 35418 35421 35421A 35421F 35421G 35960 9004119770 9004119773 9004119773 9004119774
Part # Description Qty Price
35303 - STRAINER SUB-ASSY, OIL
35303-87402

S321,331..4FC..PS1

 1
35339 - GASKET, OIL STRAINER
96723-24020

S321,331..4FC..PS1

 1
35381 - TUBE, VALVE BODY
35381-87402

S321,331..4FC..PS1

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-B5060

S321,331..4FC..TBO..PS1

 1
35418 - VALVE, MANUAL
35418-97204

S321,331..4FC..PS1

 1
35421 - PISTON, ACCUMULATOR, NO.1
35407-B2010

S321,331..4FC..PS1

 1
35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
90045-01715

S321,331..4FC..PS1

 1
35421F - PISTON, ACCUMULATOR, NO.2
35405-B2010

S321,331..4FC..PS1

 1
35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
90045-01714

S321,331..4FC..PS1

 1
35960 - WIRE, SOLENOID
35960-97502

S321,331..4FC..PS1

 1
Common parts
90041-19770
90041-19773
90041-19774
