S321M-ZPGZ (2011)
Toyota Pixis Van
Production
Dec 2011
-
Apr 2015
Engine
KFDET
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1504)4FC..PS1

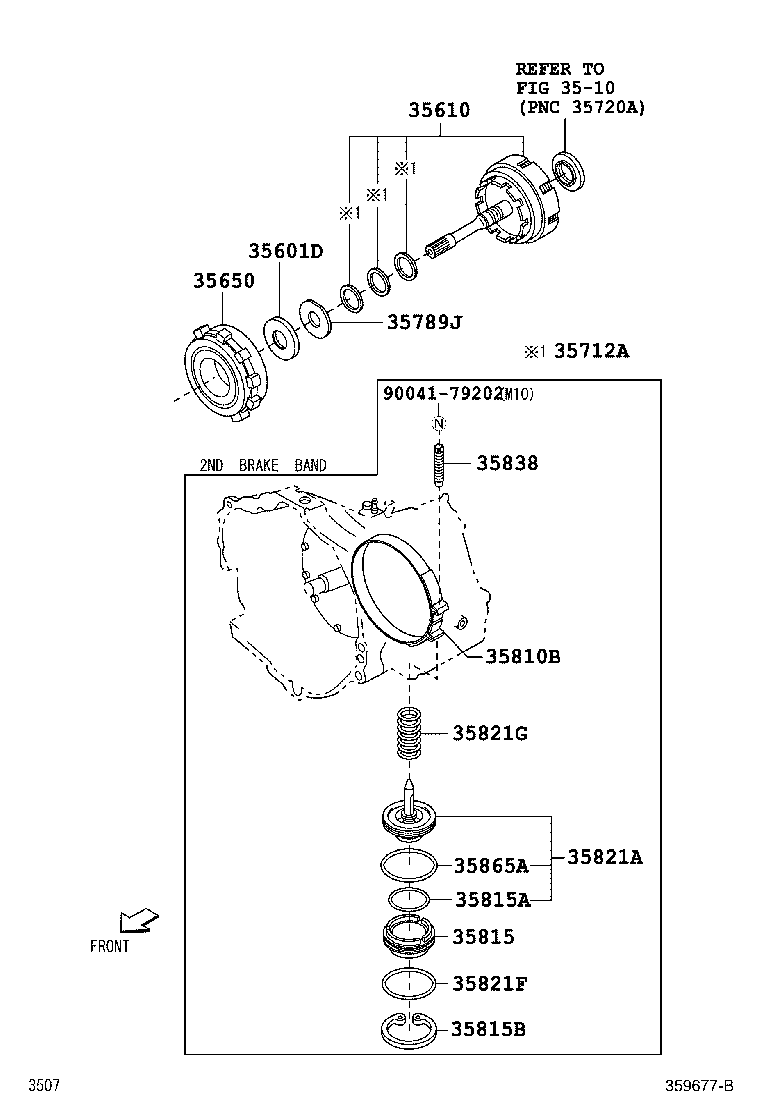

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35601D - BEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM) | ||||
| 90043-74041 |
S321,331..4FC..PS1 |
1 | ||
| 35610 - CLUTCH ASSY, FRONT MULTIPLE DISC | ||||
| 35610-87403 |
S321,331..4FC..PS1 |
1 | ||
| 35650 - CLUTCH ASSY, REAR MULTIPLE DISC | ||||
| 35650-87503 |
S321,331..4FC..PS1 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-87202 |
S321,331..4FC..PS1 |
3 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-87209 |
S321,331..4FC..PS1 厚さ=2.0,外径=53,内径=21.4 |
1 | ||
| 35789-87210 |
S321,331..4FC..PS1 厚さ=2.4,外径=53,内径=21.4 |
1 | ||
| 35789-87208 |
S321,331..4FC..PS1 厚さ=1.6,外径=53,内径=21.4 |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-97202 |
S321,331..4FC..PS1 |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35847-87202 |
S321,331..4FC..PS1 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 35866-87201 |
S321,331..4FC..PS1 |
1 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90045-21133 |
S321,331..4FC..PS1 |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35820-87202 |
S321,331..4FC..PS1 |
1 | ||
| 35821F - RING, O (FOR SERVO PISTON TO SERVO BODY) | ||||
| 90043-01283 |
S321,331..4FC..PS1 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90045-01683 |
S321,331..4FC..PS1 |
1 | ||
| 35838 - BOLT, BRAKE BAND ANCHOR | ||||
| 35838-97202 |
S321,331..4FC..PS1 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-87202 |
S321,331..4FC..PS1 |
1 | ||
| Common parts | ||||
| 90041-79202 | ||||
| Linked diagrams | ||||
| 3510 | ||||
