S321M-ZPDF (2011)
Toyota Pixis Van
Production
Dec 2011
-
Apr 2015
Engine
KFVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1504)4FC..PS1

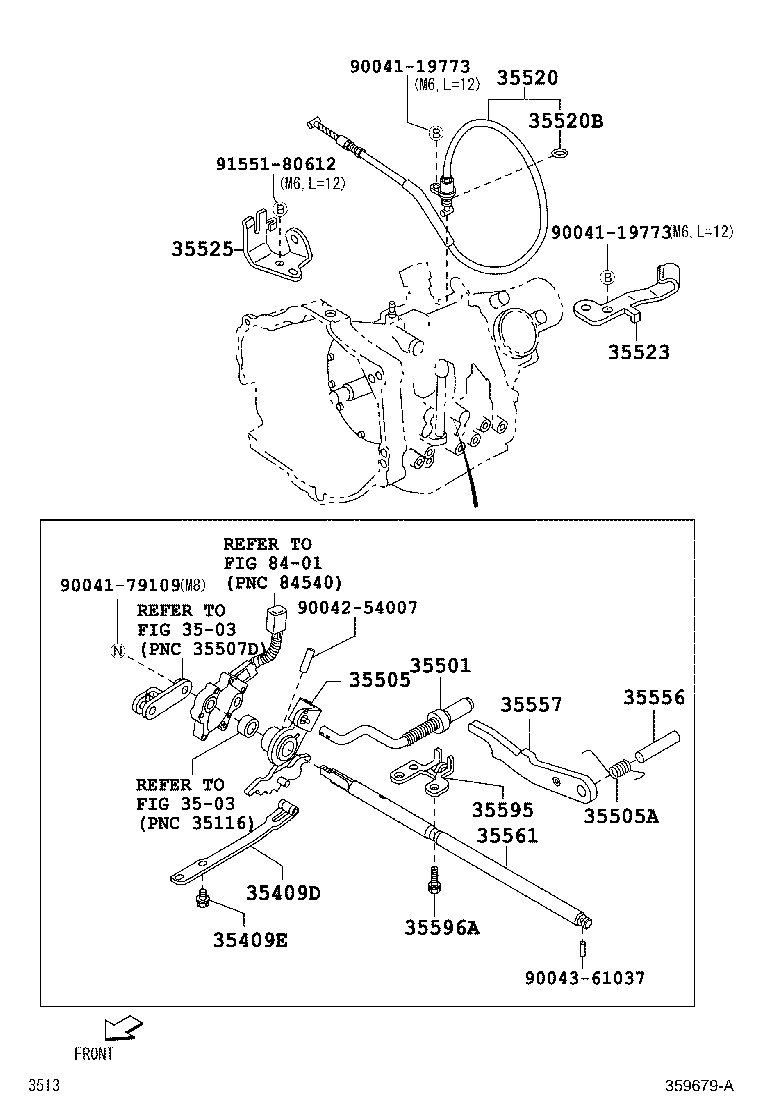

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-87505 |
S321,331..4FC..PS1 |
1 | ||
| 35409E - BOLT(FOR MANUAL DETENT SPRING) | ||||
| 90041-05291 |
S321,331..4FC..PS1 M6,L=10 |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-87503 |
S321,331..4FC..PS1 |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-87505 |
S321,331..4FC..PS1 |
1 | ||
| 35505A - SPRING, TORSION (FOR MANUAL VALVE LEVER) | ||||
| 90045-08372 |
S321,331..4FC..PS1 |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-B5010 |
S321,331..4FC..PS1 |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90043-01318 |
S321,331..4FC..PS1 |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-87501 |
S321,331..4FC..PS1 |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-B5020 |
S321,331..4FC..PS1 |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-87502 |
S321,331..4FC..PS1 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-87503 |
S321,331..4FC..PS1 |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-87504 |
S321,331..4FC..PS1 |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-87503 |
S321,331..4FC..PS1 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90041-19916 |
S321,331..4FC..PS1 M6,L=20 |
3 | ||
| Common parts | ||||
| 90041-19773 | ||||
| 90041-79109 | ||||
| 90042-54007 | ||||
| 90043-61037 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 8401 | ||||
