S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

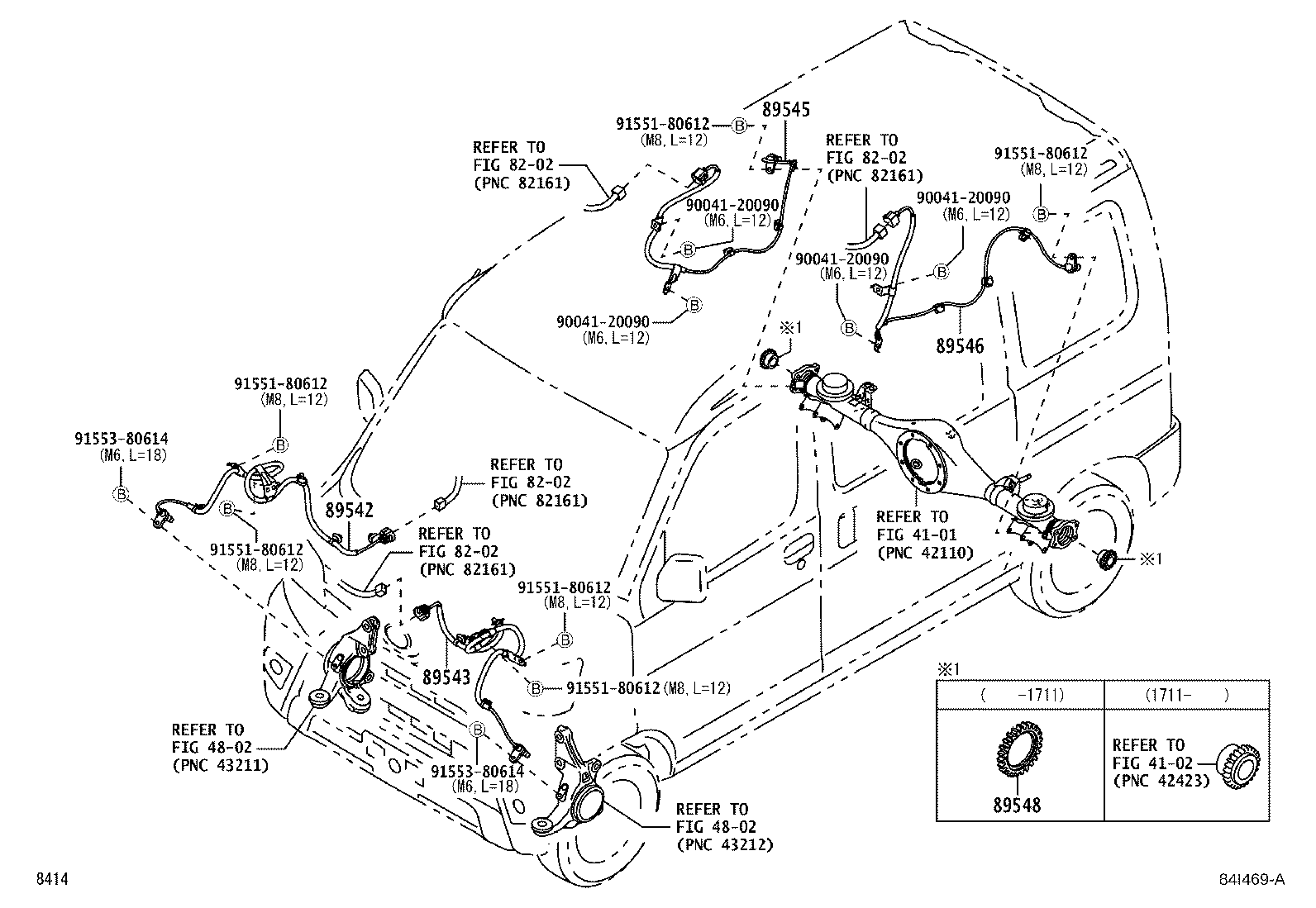

Click highlighted areas on diagram

diagram 4101 4102 4802 4802 8202 8202 8202 8202 89542 89543 89545 89546 89548 9004120090 9004120090 9004120090 9004120090 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155380614 9155380614
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-B5060

S321,331

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B5080

S321,331

 1
89545 - SENSOR, SPEED, REAR RH
89545-B5090

S321,331

 1
89546 - SENSOR, SPEED, REAR LH
89546-B5090

S321,331

 1
Common parts
90041-20090
91551-80612
91553-80614
Linked diagrams
4101
4102
4802
8202
