S321M-ZMRF4 (2017)
Toyota Pixis Van
ILLUST NO. 1 OF 8(1711- )NTBO
ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 89630-B5010 |
S321,331 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-B4010 |
S321,331..5F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
S321,331 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B5030 |
S321,331..NTBO |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B5090 |
S321,331..TBO |
1 | ||
| 89465-B5070 |
S321,331..NTBO |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B5100 |
S321,331..NTBO |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
S321,331 |
1 | ||
| Common parts | ||||
| 84540-B5011 | ||||
| 90041-19865 | ||||
| 90044-30186 | ||||
| 90044-30315 | ||||
| 91551-80830 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 8(1711- )TBO
ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 89630-B5010 |
S321,331 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-B4010 |
S321,331..5F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
S321,331 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B5090 |
S321,331..TBO |
1 | ||
| 89465-B5070 |
S321,331..NTBO |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B5100 |
S321,331..NTBO |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
S321,331 |
1 | ||
| Common parts | ||||
| 84540-B5011 | ||||
| 90041-19865 | ||||
| 90044-30186 | ||||
| 90044-30315 | ||||
| 91551-80830 | ||||
| Linked diagrams | ||||
| 8202 | ||||

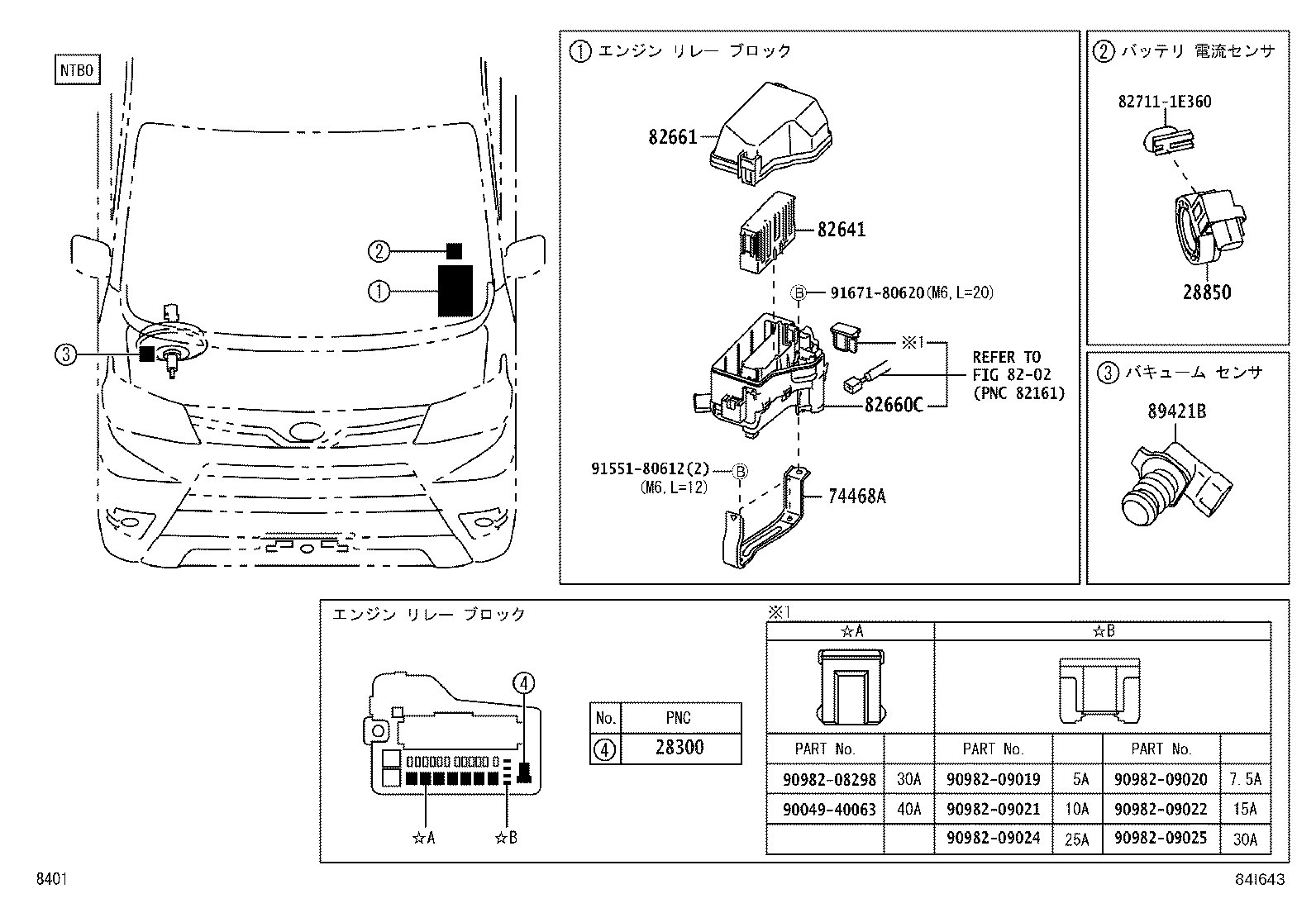

ILLUST NO. 2 OF 8(1711- )NTBO
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88004 |
KF#..S321,331 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-B5010 |
KFVE..S321,331 |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B5090 |
S321,331..TBO |
1 | ||
| 74468-B5080 |
S321,331..NTBO |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-B2030 |
S321,331 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-B5050 |
S321,331 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B2520 |
S321,331 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-B2030 |
S321,331 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90049-40063 | ||||
| 90982-08298 | ||||
| 90982-09019 | ||||
| 90982-09020 | ||||
| 90982-09021 | ||||
| 90982-09022 | ||||
| 90982-09024 | ||||
| 90982-09025 | ||||
| 91551-80612 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 8(1711- )TBO
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88004 |
KF#..S321,331 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-B5010 |
KFVE..S321,331 |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B5090 |
S321,331..TBO |
1 | ||
| 74468-B5080 |
S321,331..NTBO |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-B2030 |
S321,331 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-B5050 |
S321,331 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B2520 |
S321,331 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-B2030 |
S321,331 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90049-40063 | ||||
| 90982-08298 | ||||
| 90982-09019 | ||||
| 90982-09020 | ||||
| 90982-09021 | ||||
| 90982-09022 | ||||
| 90982-09024 | ||||
| 90982-09025 | ||||
| 91551-80612 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 8(1711- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B2090 |
S321,331 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B5030 |
S321,331 |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-B1030 |
S321,331 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-B5040 |
S321,331 ﾘﾔﾋｰﾀｰ有り |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-B1020 |
S321,331 ﾘﾔ ﾃﾞﾌｫｶﾞ&ｴｱｺﾝ ｽｲｯﾁ |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
S321,331 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-B2040 |
S321,331..HRF ｱｸｾｻﾘ ｺﾈｸﾀ有り(B+ｲﾝﾊﾟﾈ100V:60W電源) |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 8(1711- )
ﾄﾞｱ&ｼｰﾄ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-B2130 |
S321,331 |
2 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-97401 |
S321,331 |
2 | ||
| Common parts | ||||
| 90901-48003 | ||||
| 93540-13012 | ||||
ILLUST NO. 7 OF 8(1711- )
ﾄﾞｱ&ｼｰﾄ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B5010 |
S321,331 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-B5040 |
S321,331..DLX,SPL ﾋﾟﾗｰ側 |
2 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-B5060 |
S321,331..DLX,SPL ｽﾗｲﾄﾞﾄﾞｱ側 |
1 | ||
| 84262E - JUNCTION, SLIDE DOOR CONTROL FEMALE, NO.2 | ||||
| 84262-B5050 |
S321,331..DLX,SPL ｽﾗｲﾄﾞﾄﾞｱ側 |
1 | ||
| Common parts | ||||
| 83161-B5010 | ||||
| 90041-20272 | ||||
ILLUST NO. 3 OF 8(1711- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
S321,331 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-B5020 |
S321,331 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90049-88004 |
S321,331..HRF ｱｸｾｻﾘ ｺﾈｸﾀ有り(B+ｲﾝﾊﾟﾈ100V:60W電源) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-B5010 |
S321,331..HRF ｱｸｾｻﾘ ｺﾈｸﾀ有り(B+ｲﾝﾊﾟﾈ100V:60W電源) |
1 | ||
| Common parts | ||||
| 90041-20197 | ||||
| 90041-20283 | ||||
| 90159-70003 | ||||
| 90982-08298 | ||||
| 90982-09019 | ||||
| 90982-09020 | ||||
| 90982-09021 | ||||
| 90982-09022 | ||||
| 90982-09023 | ||||
| 90982-09024 | ||||
| 90982-09025 | ||||
ILLUST NO. 8 OF 8(1711- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-B2030 |
S321,331 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B2130 |
S321,331 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-B5050 |
S321,331 古河電気 |
1 | ||
| Common parts | ||||
| 90041-05485 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 8(1711- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-B5080 |
S321,331..5F..TBO;S321,331..5F..NTBO..(PS3,PS4,PS5) |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
S321,331 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2050 |
S321,331 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
S321,331 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-B5011 |
S321,331 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-97202 |
S321,331..5F |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 84520-B5010 |
S321,331..5F..TBO;S321,331..5F..NTBO..(PS3,PS4,PS5) |
1 | ||
| Common parts | ||||
| 90041-05485 | ||||
| 90041-70330 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8202 | ||||
