S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

Click highlighted areas on diagram

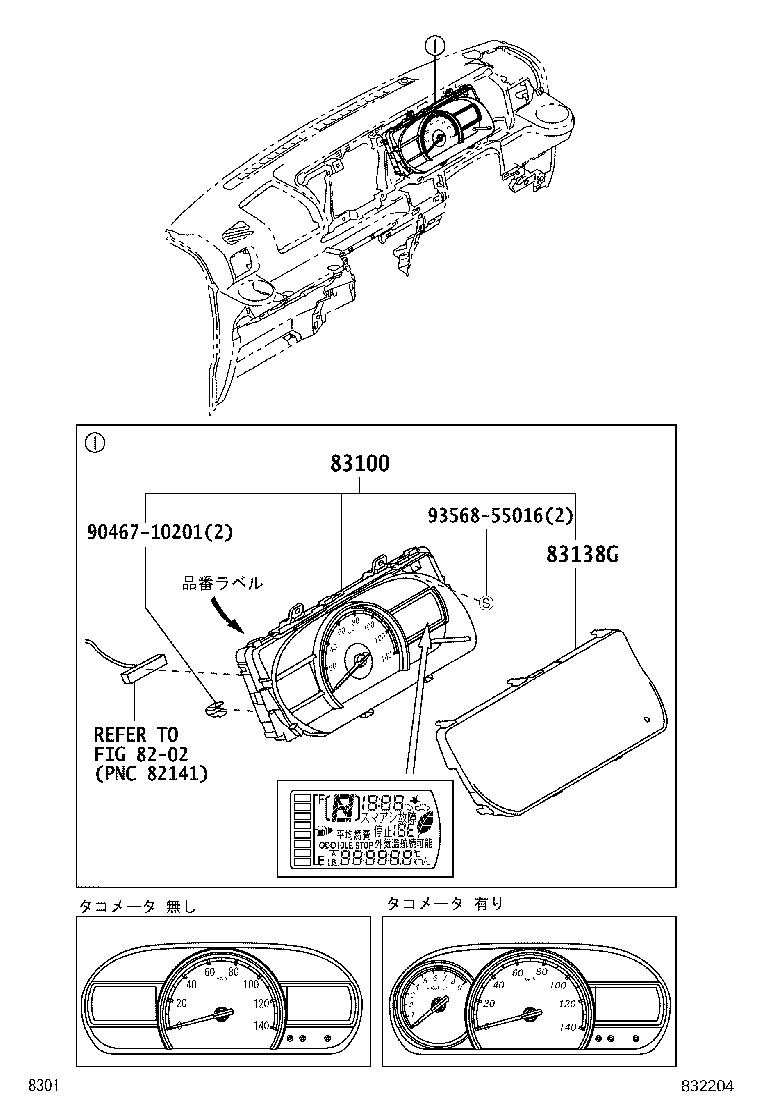

diagram 8202 83100 83138G 9046710201 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-B5750

S321,331..5F

YAZAKI,品番ﾗﾍﾞﾙ有り

 1
83138G - GLASS, COMBINATION METER
83852-B5750

S321,331..5F

 1
Common parts
90467-10201
93568-55016
Linked diagrams
8202
