S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

Click highlighted areas on diagram

diagram 82121 82141 82161
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-B5D80

S321,331..5F

品番ﾗﾍﾞﾙ有り

 1
82141-B5D81

S321,331..5F

品番ﾗﾍﾞﾙ有り

 1
82161 - WIRE, FLOOR
82161-B5X70

S321,331..5F..NTBO

LEDﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り

 1
82161-B5K90

S321,331..5F..NTBO

品番ﾗﾍﾞﾙ有り

 1
82199-B5120

S321,331..5F..TBO

 1
82161-B5Y10

S321,331..5F..TBO

LEDﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り

 1

ILLUST NO. 2 OF 7(1711-1804)NTBO

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

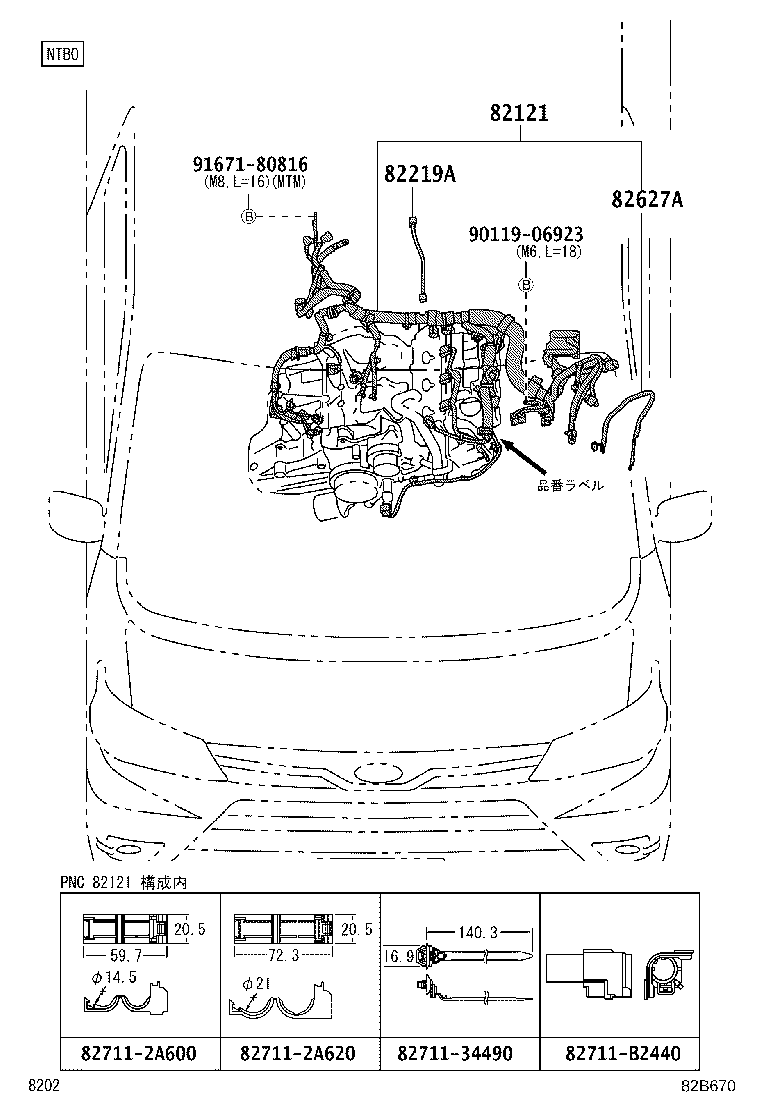

diagram 82121 82219A 82627A 827112A600 827112A620 8271134490 82711B2440 9011906923 9167180816
Part # Description Qty Price
82219A - WIRE, SENSOR
82219-B5010

S321,331

 1
82627A - WIRE, FUSIBLE LINK
82627-B5070

S321,331..NTBO

 1
82627-B5080

S321,331..TBO

 1
Common parts
82711-2A600
82711-2A620
82711-34490
82711-B2440
90119-06923
91671-80816

ILLUST NO. 2 OF 7(1711-1804)TBO

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82219A 82627A 827112A600 827112A620 8271134490 82711B5040 9011906923 9167180816
Part # Description Qty Price
82219A - WIRE, SENSOR
82219-B5010

S321,331

 1
82627A - WIRE, FUSIBLE LINK
82627-B5070

S321,331..NTBO

 1
82627-B5080

S321,331..TBO

 1
Common parts
82711-2A600
82711-2A620
82711-34490
82711-B5040
90119-06923
91671-80816

ILLUST NO. 4 OF 7(1711- )

Click highlighted areas on diagram

ﾄﾞｱ&ﾙｰﾌ

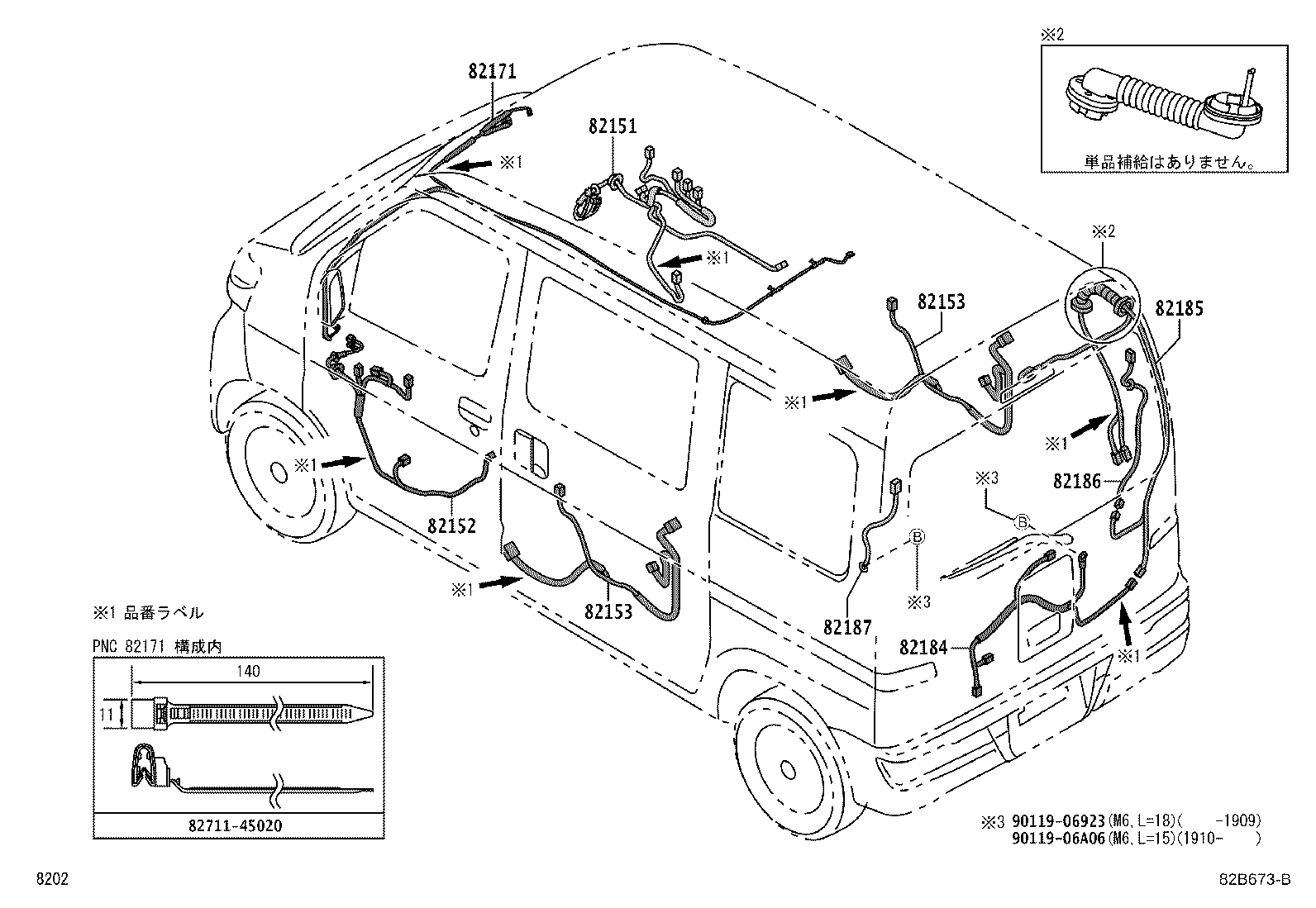

diagram 82151 82152 82153 82153 82171 82184 82185 82186 82187 8271145020 9011906923 9011906A06
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-B5060

S321,331..SPL

 1
82152 - WIRE, FRONT DOOR, LH
82152-B5040

S321,331..SPL

 1
82153 - WIRE, REAR DOOR, NO.1
82153-B5010

S321,331..DLX,SPL

 2
82153 - WIRE, REAR DOOR, NO.1
82153-B5010

S321,331..DLX,SPL

 2
82171 - WIRE, ROOF, NO.1
82171-B5021

S321,331..5F..(DLX,SPL)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-B5010

S321,331

 1
82185 - WIRE, BACK DOOR, NO.2
82185-B5050

S321,331..HRF

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-B5010

S321,331

ﾃﾞﾌｫｯｶﾞ(+)

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-B5010

S321,331

ﾃﾞﾌｫｯｶﾞ(−)

 1
Common parts
82711-45020
90119-06923
90119-06A06

ILLUST NO. 6 OF 7(1711- )

Click highlighted areas on diagram

ﾌｭｰｴﾙ

diagram 82415
Part # Description Qty Price

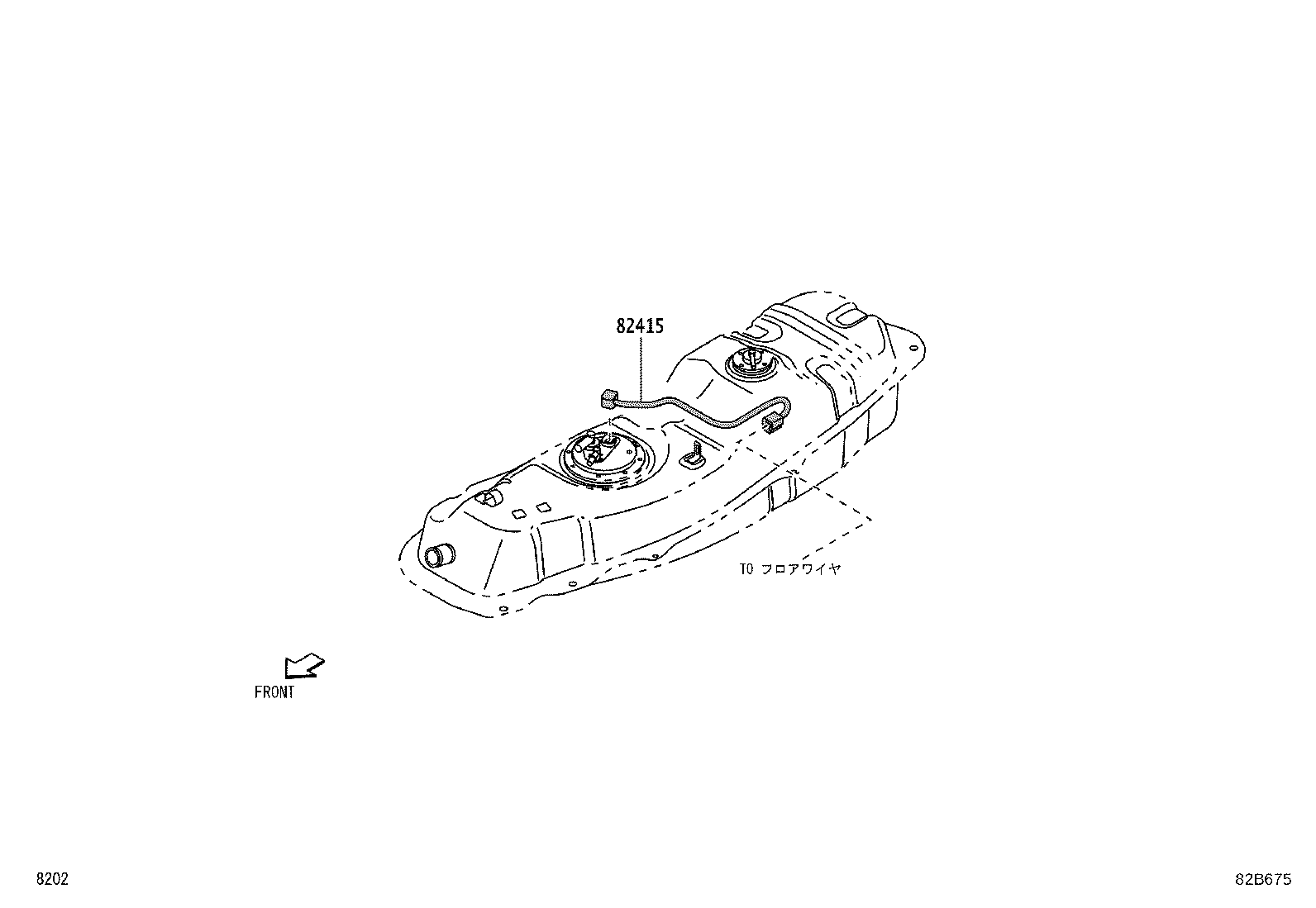

82415 - WIRE, FUEL PUMP
82415-B5010

S321,331

 1

ILLUST NO. 5 OF 7(1711- )

Click highlighted areas on diagram

ﾌﾛｱ

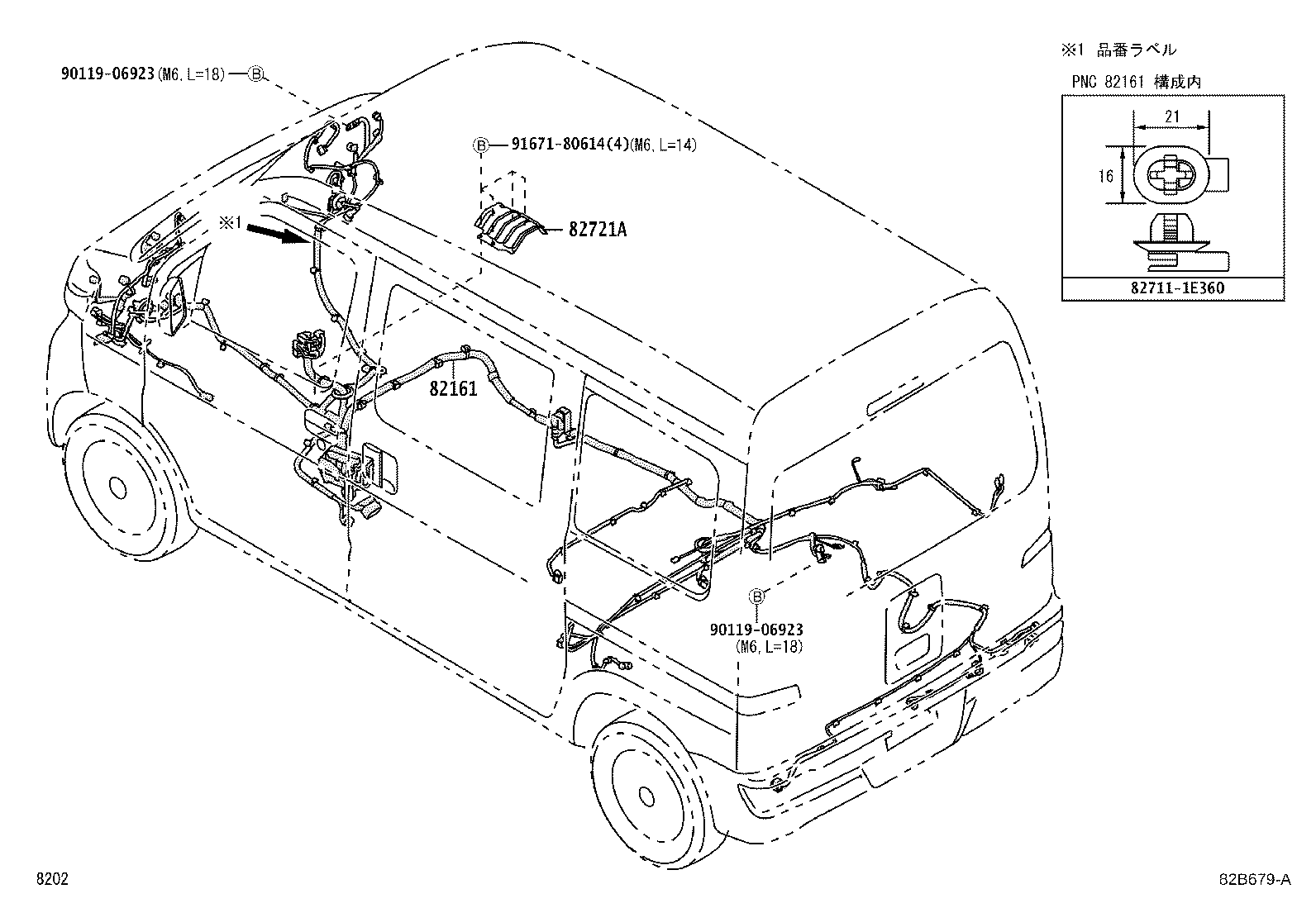

diagram 82161 827111E360 82721A 9011906923 9011906923 9167180614
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-B5X70

S321,331..5F..NTBO

LEDﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り

 1
82161-B5K90

S321,331..5F..NTBO

品番ﾗﾍﾞﾙ有り

 1
82199-B5120

S321,331..5F..TBO

 1
82161-B5Y10

S321,331..5F..TBO

LEDﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り

 1
82721A - BRACKET, WIRING HARNESS, NO.2
58256-B5020

S321,331

 1
Common parts
82711-1E360
90119-06923
91671-80614

ILLUST NO. 7 OF 7(1711- )

Click highlighted areas on diagram

ｺﾈｸﾀ

diagram 82824B2060 9004875328 9098010619 9098010735 9098010942 9098011019 9098011149 9098011156 9098011194 9098012A37 90980WA052
Part # Description Qty Price
Common parts
82824-B2060
90048-75328
90980-10619
90980-10735
90980-10942
90980-11019
90980-11149
90980-11156
90980-11194
90980-12A37
90980-WA052

ILLUST NO. 2 OF 7(1804- )NTBO

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

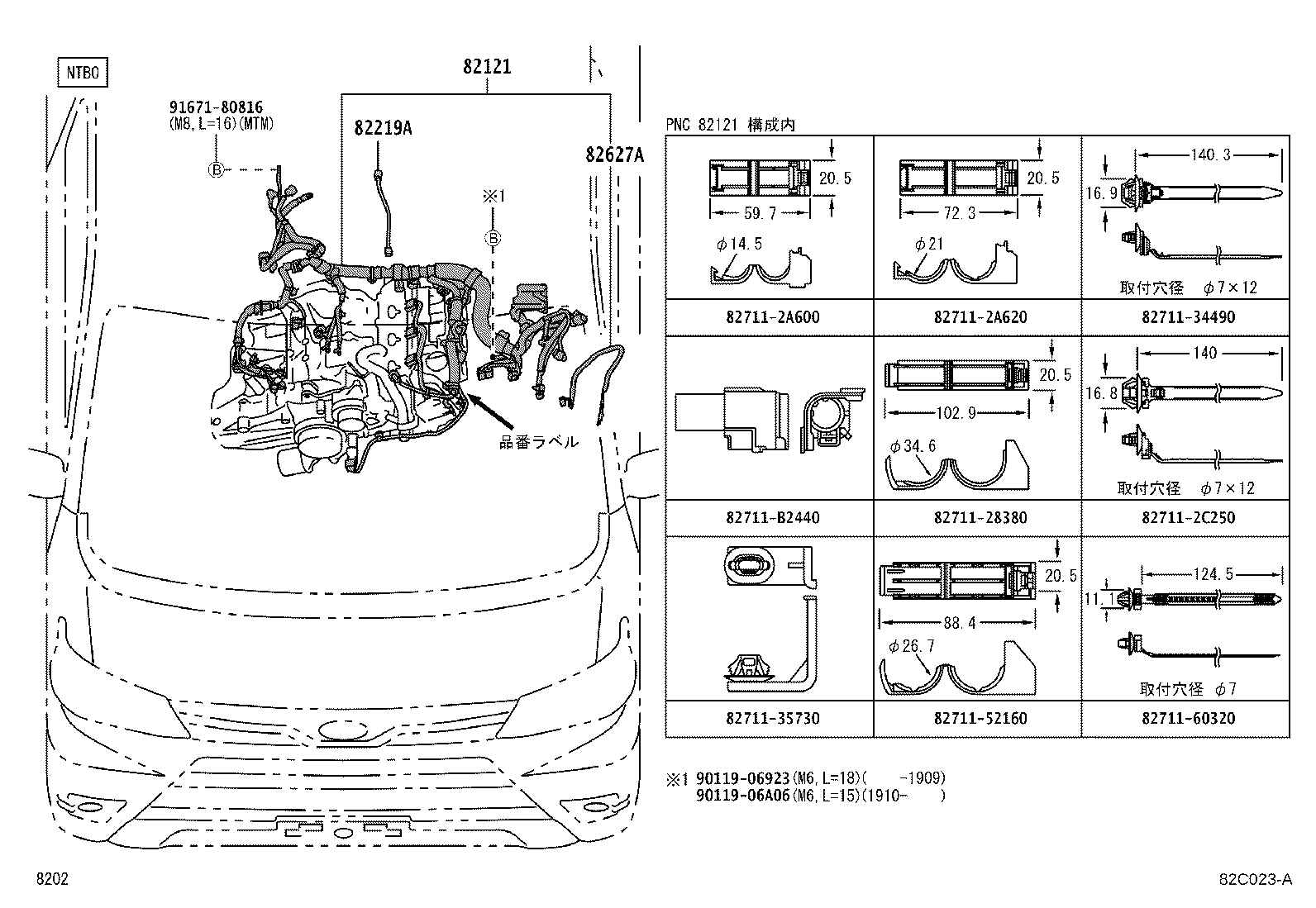

diagram 82121 82219A 82627A 8271128380 827112A600 827112A620 827112C250 8271134490 8271135730 8271152160 8271160320 82711B2440 9011906923 9011906A06 9167180816
Part # Description Qty Price
82219A - WIRE, SENSOR
82219-B5010

S321,331

 1
82627A - WIRE, FUSIBLE LINK
82627-B5070

S321,331..NTBO

 1
82627-B5080

S321,331..TBO

 1
Common parts
82711-28380
82711-2A600
82711-2A620
82711-2C250
82711-34490
82711-35730
82711-52160
82711-60320
82711-B2440
90119-06923
90119-06A06
91671-80816

ILLUST NO. 2 OF 7(1804- )TBO

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82219A 82627A 8271128380 827112A600 827112A620 827112C250 8271134490 8271135730 8271152160 8271160320 82711B5040 9011906923 9011906A06 9167180816
Part # Description Qty Price
82219A - WIRE, SENSOR
82219-B5010

S321,331

 1
82627A - WIRE, FUSIBLE LINK
82627-B5070

S321,331..NTBO

 1
82627-B5080

S321,331..TBO

 1
Common parts
82711-28380
82711-2A600
82711-2A620
82711-2C250
82711-34490
82711-35730
82711-52160
82711-60320
82711-B5040
90119-06923
90119-06A06
91671-80816

ILLUST NO. 3 OF 7(1711- )

Click highlighted areas on diagram

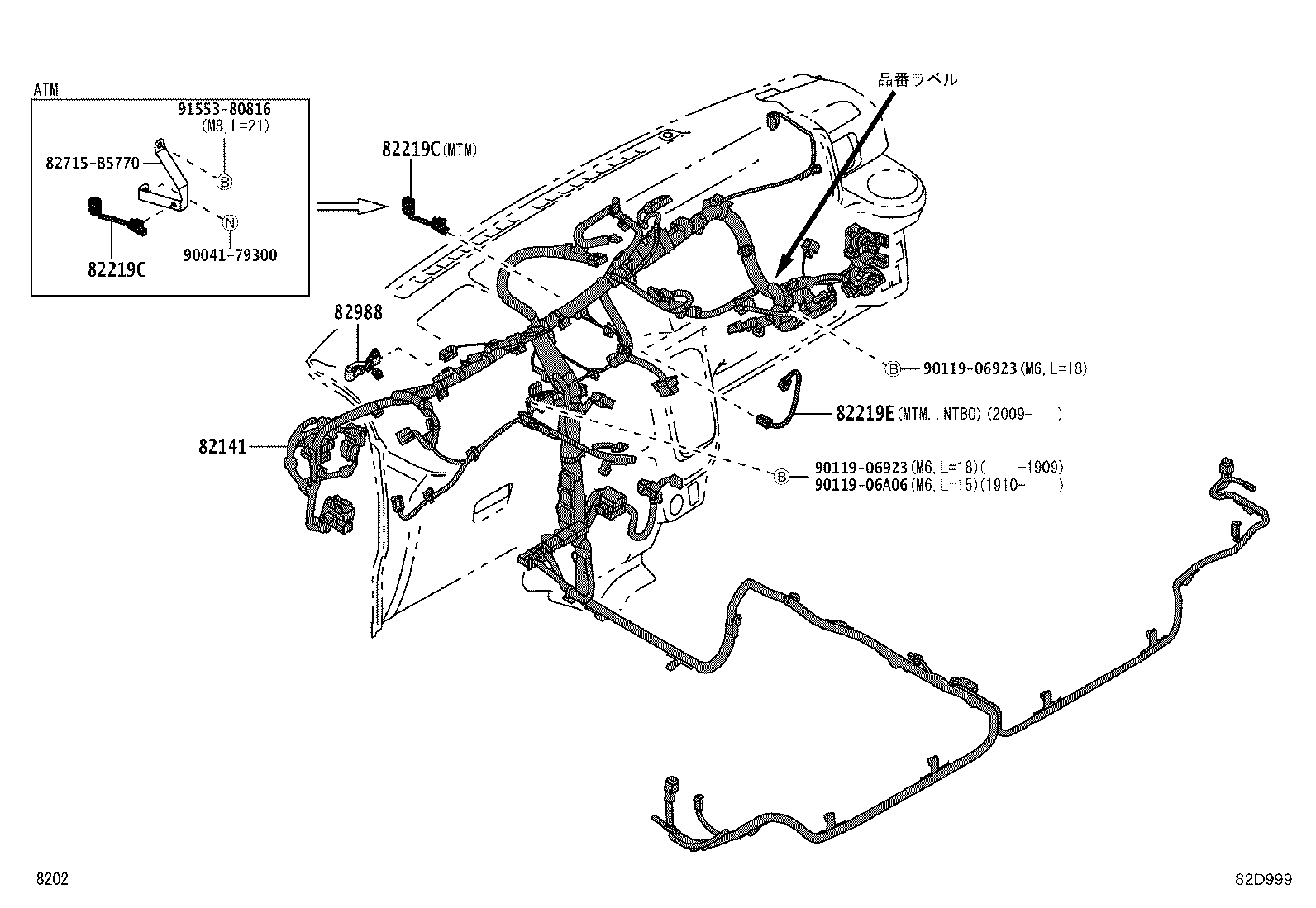

ｲﾝｽﾄﾙﾒﾝﾄﾊﾊﾟﾈﾙ

diagram 82141 82219C 82219C 82219E 82715B5770 82988 9004179300 9011906923 9011906923 9011906A06 9155380816
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-B5D80

S321,331..5F

品番ﾗﾍﾞﾙ有り

 1
82141-B5D81

S321,331..5F

品番ﾗﾍﾞﾙ有り

 1
82219C - WIRE, SENSOR
82219-B5040

S321,331

 1
82219C - WIRE, SENSOR
82219-B5040

S321,331

 1
82988 - WIRE, AIR BAG REPAIR
89171-B5010

S321,331

 1
Common parts
82715-B5770
90041-79300
90119-06923
90119-06A06
91553-80816
