S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

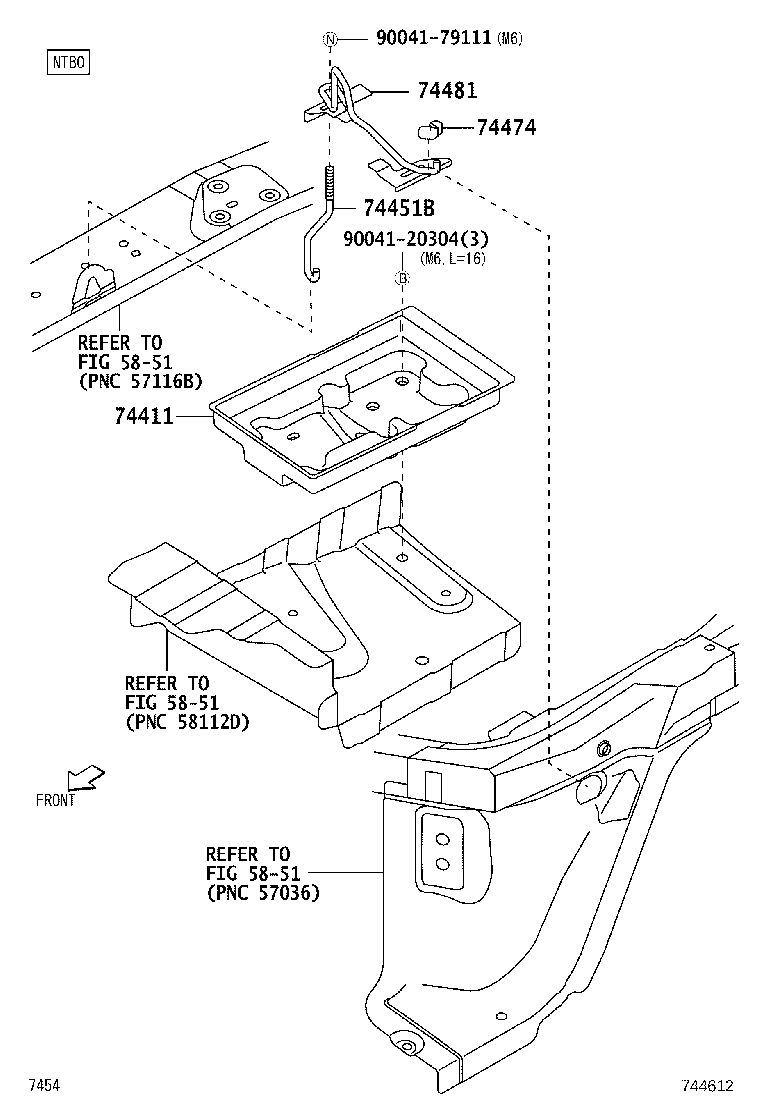

(1711- )NTBO

Click highlighted areas on diagram

diagram 5851 5851 5851 74411 74451B 74474 74481 9004120304 9004179111
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-B5030

S321,331

 1
74451B - BOLT, BATTERY CLAMP
74451-B5060

S321,331..TBO

 1
74451-B5050

S321,331..NTBO

 1
74474 - PAD, BATTERY
74423-97501

S321,331

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-B5020

S321,331..NTBO

 1
74404-B5040

S321,331..TBO

 1
Common parts
90041-20304
90041-79111
Linked diagrams
5851

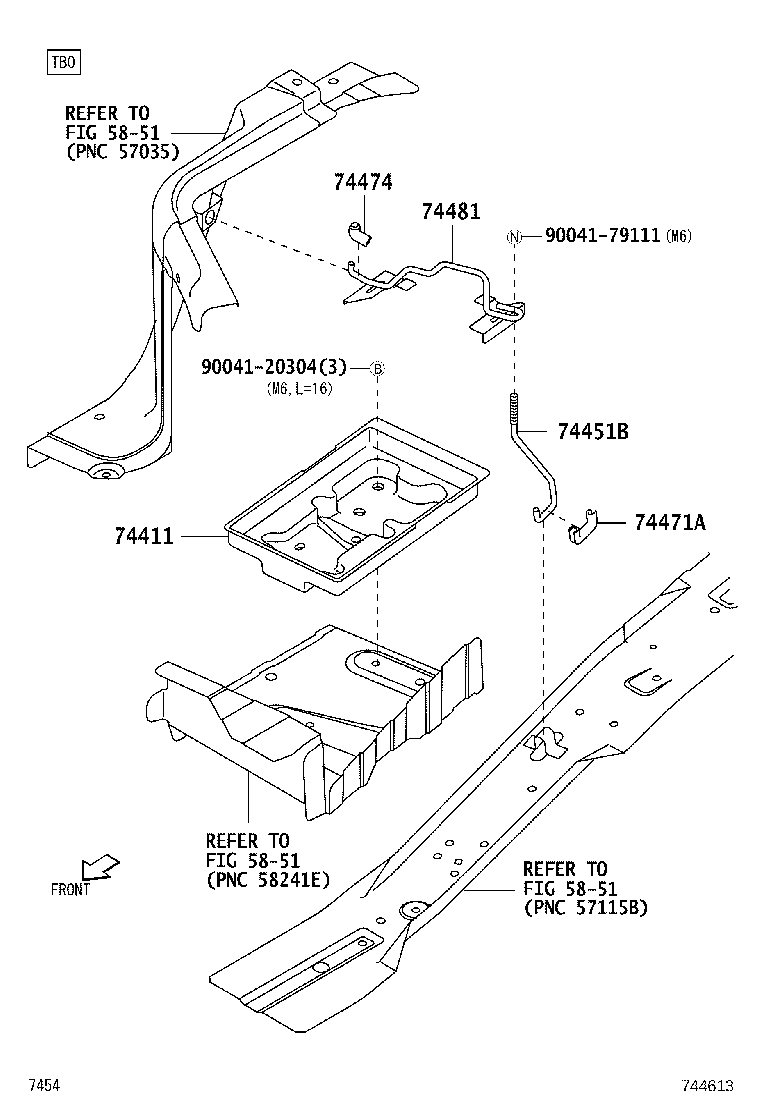

(1711- )TBO

Click highlighted areas on diagram

diagram 5851 5851 5851 74411 74451B 74471A 74474 74481 9004120304 9004179111
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-B5030

S321,331

 1
74451B - BOLT, BATTERY CLAMP
74451-B5060

S321,331..TBO

 1
74451-B5050

S321,331..NTBO

 1
74471A - PAD, BATTERY CLAMP
74489-97501

S321,331..TBO

 1
74474 - PAD, BATTERY
74423-97501

S321,331

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-B5020

S321,331..NTBO

 1
74404-B5040

S321,331..TBO

 1
Common parts
90041-20304
90041-79111
Linked diagrams
5851
