S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

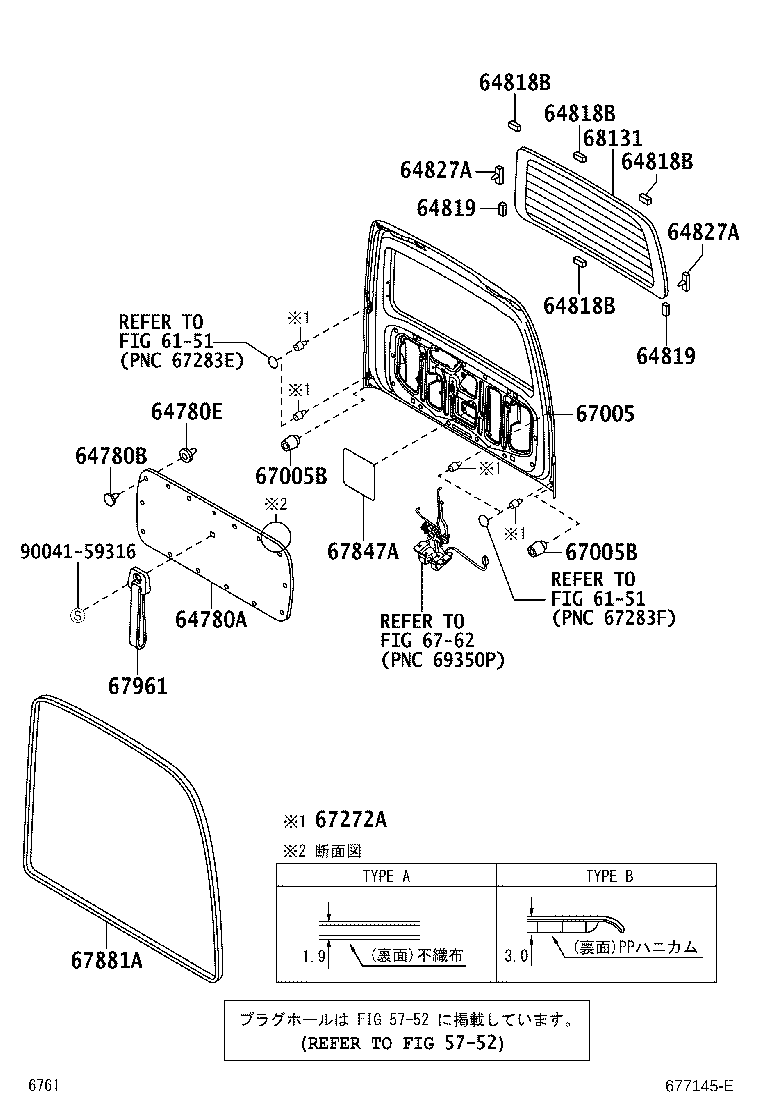

Click highlighted areas on diagram

diagram 5752 6151 6151 64780A 64780B 64780E 64818B 64818B 64818B 64818B 64819 64819 64827A 64827A 67005 67005B 67005B 67272A 6762 67847A 67881A 67961 68131 9004159316
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-B5021B2

S321,331

GRAY,TRIM2#,ﾀｲﾌﾟ B

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
67771-B5040C0

S321,331

BLACK,TRIM2#,TYPE B:ｲﾗｽﾄ参照

 15
64780E - CAP, DOOR TRIM RETAINER
67772-87701

S321,331

 15
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

S321,331

 4
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

S321,331

 4
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

S321,331

 4
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-B2010

S321,331

 4
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-B5010

S321,331

 2
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-B5010

S321,331

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-87701

S321,331

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-87701

S321,331

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B5181

S321,331..HRF

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09069

S321,331

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09069

S321,331

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
90045-41263

S321,331

 4
67847A - COVER, BACK DOOR SERVICE HOLE
67847-B5010

S321,331

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-B5010

S321,331..HRF..(DLX,SPL)

 1
67961 - STRAP, BACK DOOR PULL
67908-97502C0

S321,331

BLACK,TRIM2#

 1
68131 - GLASS, BACK DOOR
68105-B5011

S321,331..SPL

 1
68105-B5021

S321,331..SPL

ﾘﾔ ｻｲﾄﾞ ｶﾞﾗｽ−ｽﾓｰｸ強化

 1
Common parts
90041-59316
Linked diagrams
5752
6151
6762
