S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

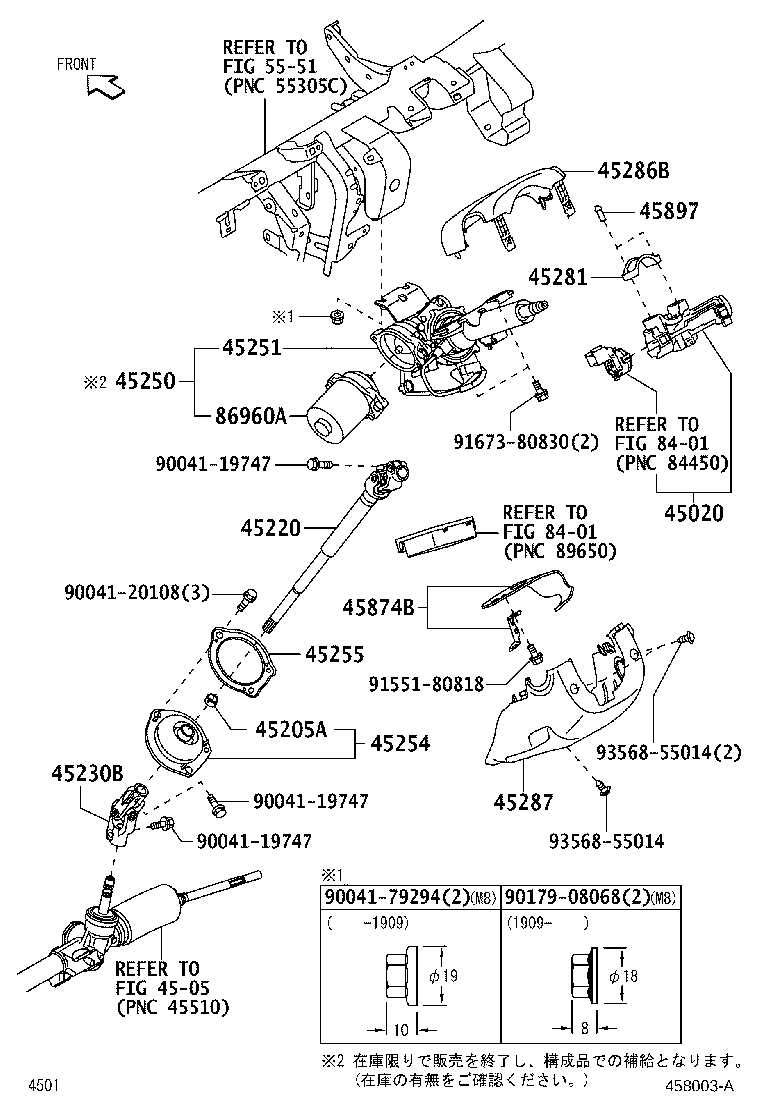

Click highlighted areas on diagram

diagram 45020 4505 45205A 45220 45230B 45250 45251 45254 45255 45281 45286B 45287 45874B 45897 5551 8401 8401 86960A 9004119747 9004119747 9004119747 9004120108 9004179294 9017908068 9155180818 9167380830 9356855014 9356855014
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-B5091

S321,331..5F

 1
45020-B5090

S321,331..5F

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
45273-B5010

S321,331

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B5080

S321,331

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B5070

S321,331

 1
45250 - COLUMN ASSY, STEERING
45870-B5050

S321,331

 1
45251 - TUBE SET, STEERING COLUMN
45251-B9150

S321,331

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B5011

S321,331

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45223-B5010

S321,331

 1
45281 - HOUSING, STEERING COLUMN
45281-B2040

S321,331

 1
45286B - COVER, STEERING COLUMN, UPR
45286-B2150C0

S321,331

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-B2290C0

S321,331

BLACK,TRIM2#

 1
45897 - BOLT, STEERING LOCK SET
45897-B2010

S321,331

 2
86960A - MOTOR SET, POWER STEERING
80960-B9030

S321,331

 1
Common parts
90041-19747
90041-20108
90041-79294
90179-08068
91551-80818
91673-80830
93568-55014
Linked diagrams
4505
5551
8401
