S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

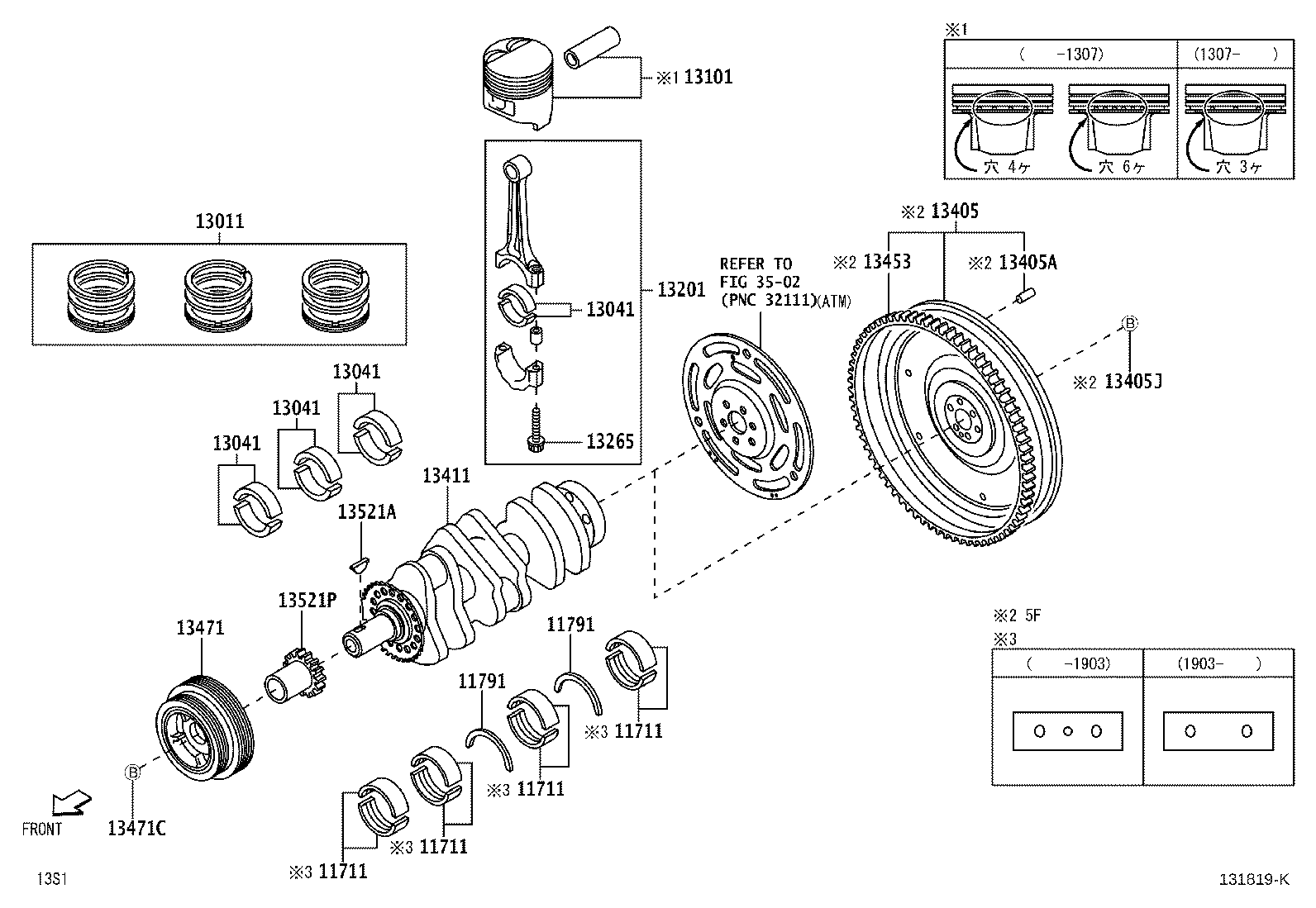

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13201 13265 13405 13405A 13405J 13411 13453 13471 13471C 13521A 13521P 3502
Part # Description Qty Price
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2020

KF#..S321,331

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2020

KF#..S321,331

STD

 2
13041 - BEARING, CONNECTING ROD
13041-B201002

KF#..S321,331

MARK2 GREEN

 3
13041-B201003

KF#..S321,331

MARK3 BROWN

 3
13041-B201001

KF#..S321,331

MARK1 PURPLE

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KF#..S321,331

MARK2 GREEN

 3
13041-B201003

KF#..S321,331

MARK3 BROWN

 3
13041-B201001

KF#..S321,331

MARK1 PURPLE

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KF#..S321,331

MARK2 GREEN

 3
13041-B201003

KF#..S321,331

MARK3 BROWN

 3
13041-B201001

KF#..S321,331

MARK1 PURPLE

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KF#..S321,331

MARK2 GREEN

 3
13041-B201003

KF#..S321,331

MARK3 BROWN

 3
13041-B201001

KF#..S321,331

MARK1 PURPLE

 3
13101 - PISTON SUB-ASSY, W/PIN
13101-B5010

KFVE..S321,331

STD

 3
13201 - ROD SUB-ASSY, CONNECTING
13201-B9060

KF#..S321,331

 3
13265 - BOLT, CONNECTING ROD
13265-B9020

KF#..S321,331

 6
13405 - FLYWHEEL SUB-ASSY
13405-B5010

KF#..S321,331..5F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90042-50152

KF#..S321,331..5F

長さ=20,外径=8

 3
13405J - BOLT(FOR FLYWHEEL)
90048-01037

KF#..S321,331..5F

M10,L=19.5(ｼｰﾙﾎﾞﾙﾄ)

 6
13453 - GEAR, FLYWHEEL RING
13453-B5010

KF#..S321,331..5F

 1
13471 - PULLEY, CRANKSHAFT
13470-B2020

KF#..S321,331

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90042-80034

KF#..S321,331

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-B2020

KFVE..S321,331

 1
Linked diagrams
3502
