S321M-ZMRF4 (2017)

Toyota Pixis Van

Production Nov 2017 - Dec 2018
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

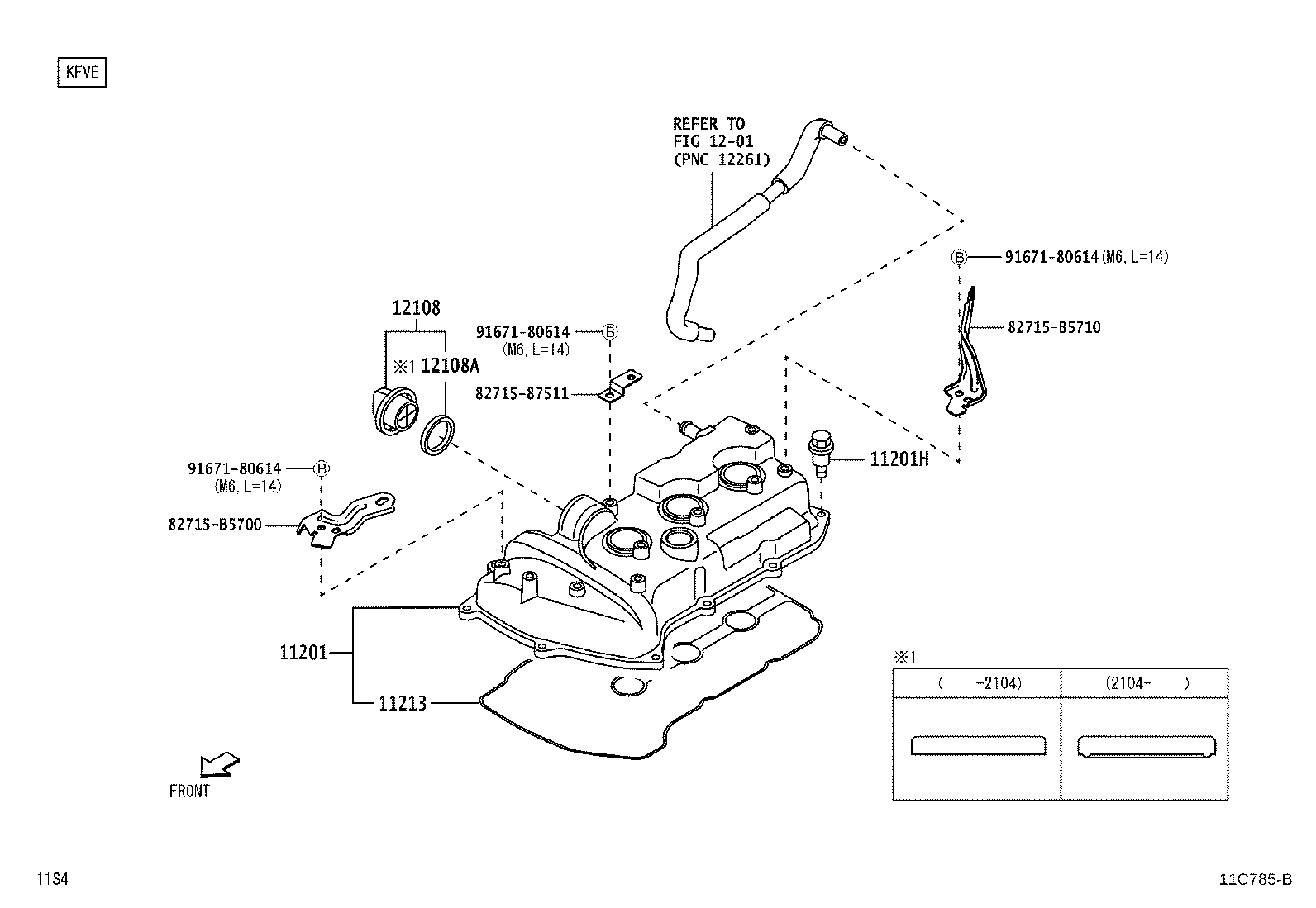

ILLUST NO. 1 OF 2(1711- )KFVE

Click highlighted areas on diagram

diagram 11201 11201H 11213 1201 12108 12108A 8271587511 82715B5700 82715B5710 9167180614 9167180614 9167180614
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B2102

KF#..S321,331

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80620

KF#..S321,331

 10
11213 - GASKET, CYLINDER HEAD COVER
11213-B2050

KF#..S321,331

 1
11213-B2051

KF#..S321,331

 1
Common parts
82715-87511
82715-B5700
82715-B5710
91671-80614
Linked diagrams
1201
