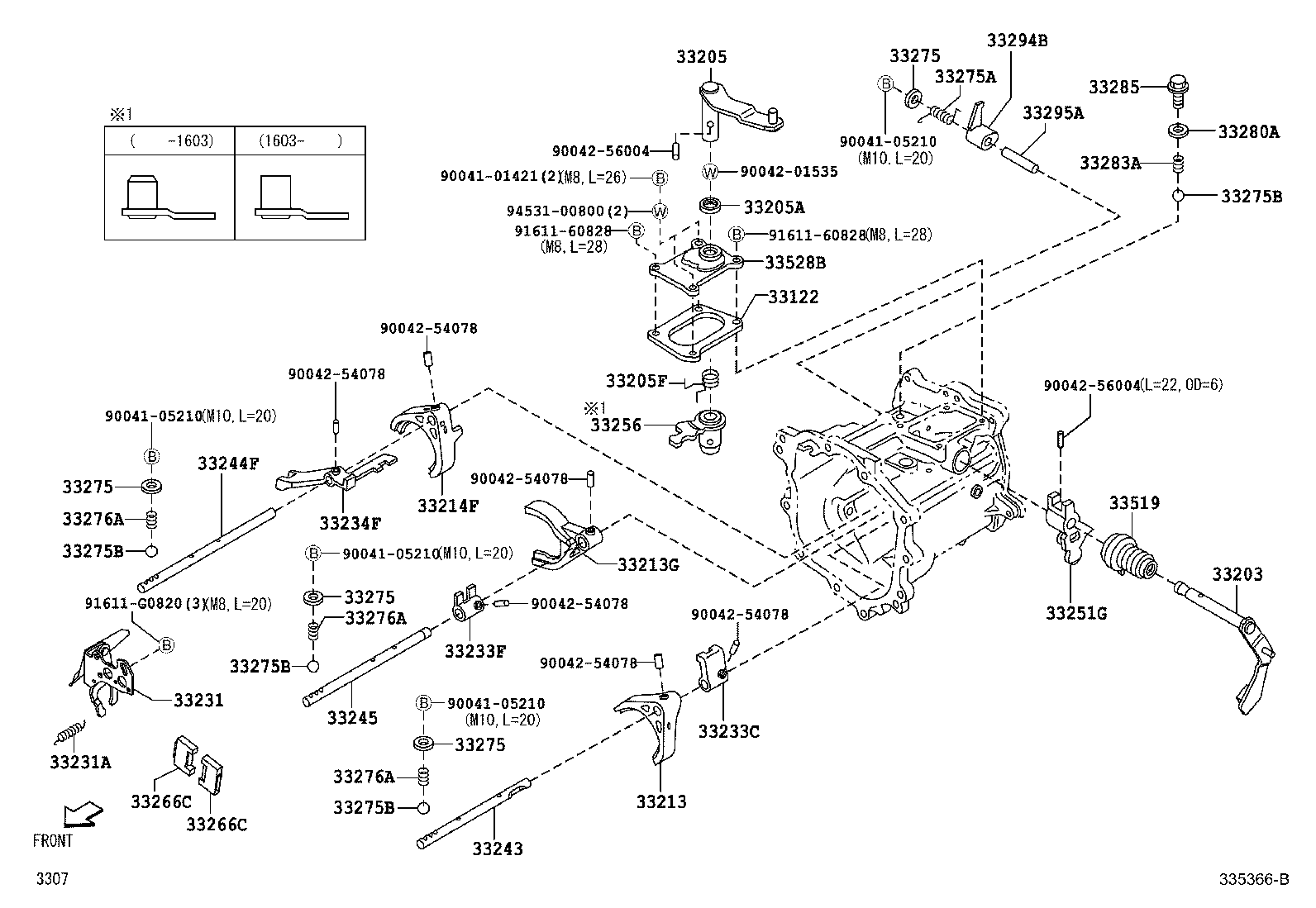

Toyota Pixis van S321M GEAR SHIFT FORK & LEVER SHAFT (MTM)

Part #	Description	Period	Qty
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-87504	S321,331..5F..PS1	12/2011 - 04/2015	1
33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203-B5010	S321,331..5F..PS1	12/2011 - 04/2015	1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33205-B5010	S321,331..5F	12/2011 - 03/2015	1
33205-B5040	S321,331..5F..PS1	03/2015 - 04/2015	1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90043-13008	S321,331..5F..PS1	12/2011 - 04/2015	1
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90045-08333	S321,331..5F..PS1	12/2011 - 04/2015	1
33213 - FORK, 1ST & 2ND SHIFT
33212-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33213G - FORK, GEAR SHIFT, NO.2
33213-B4010	S321,331..5F..PS1	12/2011 - 04/2015	1
33214F - FORK, 5TH SHIFT
33214-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33231 - HEAD, REVERSE SHIFT
33201-B0010	S321,331..5F..PS1	12/2011 - 04/2015	1
33231A - SPRING, REVERSE SHIFT RESTRICT
90045-06241	S321,331..5F..PS1	12/2011 - 04/2015	1
33233C - HEAD, 1ST & 2ND SHIFT
33233-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33233F - HEAD, 3RD & 4TH SHIFT
33234-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33234F - HEAD, REVERSE & 5TH SHIFT
33237-87501	S321,331..5F..PS1	12/2011 - 04/2015	1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33243-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33244F - SHAFT,5TH & REVERSE SHIFT
33244-97501	S321,331..5F..PS1	12/2011 - 04/2015	1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33245-87501	S321,331..5F..PS1	12/2011 - 04/2015	1
33251G - LEVER, SHIFT, INNER
33251-87509	S321,331..5F..PS1	12/2011 - 04/2015	1
33256 - LEVER, SELECT INNER
33256-87501	S321,331..5F..PS1	12/2011 - 04/2015	1
33266C - PLATE, SHIFT INTER LOCK
33266-87506	S321,331..5F..PS1	12/2011 - 04/2015	2
33266C - PLATE, SHIFT INTER LOCK
33266-87506	S321,331..5F..PS1	12/2011 - 04/2015	2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90044-30122	S321,331..5F..PS1 外径=17,厚さ=1.0,ｱﾙﾐ	12/2011 - 04/2015	4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90044-30122	S321,331..5F..PS1 外径=17,厚さ=1.0,ｱﾙﾐ	12/2011 - 04/2015	4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90044-30122	S321,331..5F..PS1 外径=17,厚さ=1.0,ｱﾙﾐ	12/2011 - 04/2015	4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90044-30122	S321,331..5F..PS1 外径=17,厚さ=1.0,ｱﾙﾐ	12/2011 - 04/2015	4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90045-08332	S321,331..5F..PS1	12/2011 - 04/2015	1
33275B - BALL, SHAFT DETENT
90043-60003	S321,331..5F..PS1	12/2011 - 04/2015	4
33275B - BALL, SHAFT DETENT
90043-60003	S321,331..5F..PS1	12/2011 - 04/2015	4
33275B - BALL, SHAFT DETENT
90043-60003	S321,331..5F..PS1	12/2011 - 04/2015	4
33275B - BALL, SHAFT DETENT
90043-60003	S321,331..5F..PS1	12/2011 - 04/2015	4
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90045-01674	S321,331..5F..PS1	12/2011 - 04/2015	3
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90045-01674	S321,331..5F..PS1	12/2011 - 04/2015	3
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90045-01674	S321,331..5F..PS1	12/2011 - 04/2015	3
33280A - GASKET, REVERSE RESTRICT PIN
90044-30295	S321,331..5F..PS1	12/2011 - 04/2015	1
33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
90045-01669	S321,331..5F..PS1	12/2011 - 04/2015	1
33285 - HOLDER, REVERSE RESTRICT PIN
33285-87501	S321,331..5F..PS1	12/2011 - 04/2015	1
33294B - CAM, REVERSE RESTRICT
33294-87503	S321,331..5F..PS1	12/2011 - 04/2015	1
33295A - SHAFT, REVERSE RESTRICT
33295-87501	S321,331..5F..PS1	12/2011 - 04/2015	1
33519 - BOOT, CONTROL SHAFT DUST
33519-87505	S321,331..5F..PS1	12/2011 - 04/2015	1
33528B - COVER, CONTROL SHAFT
33528-87503	S321,331..5F..PS1	12/2011 - 04/2015	1
Common parts
90041-01421
90041-05210
90042-01535
90042-54078
90042-56004
91611-60828
91611-G0820
94531-00800

S321M-ZMDF (2011)

(1112-1711)5F
