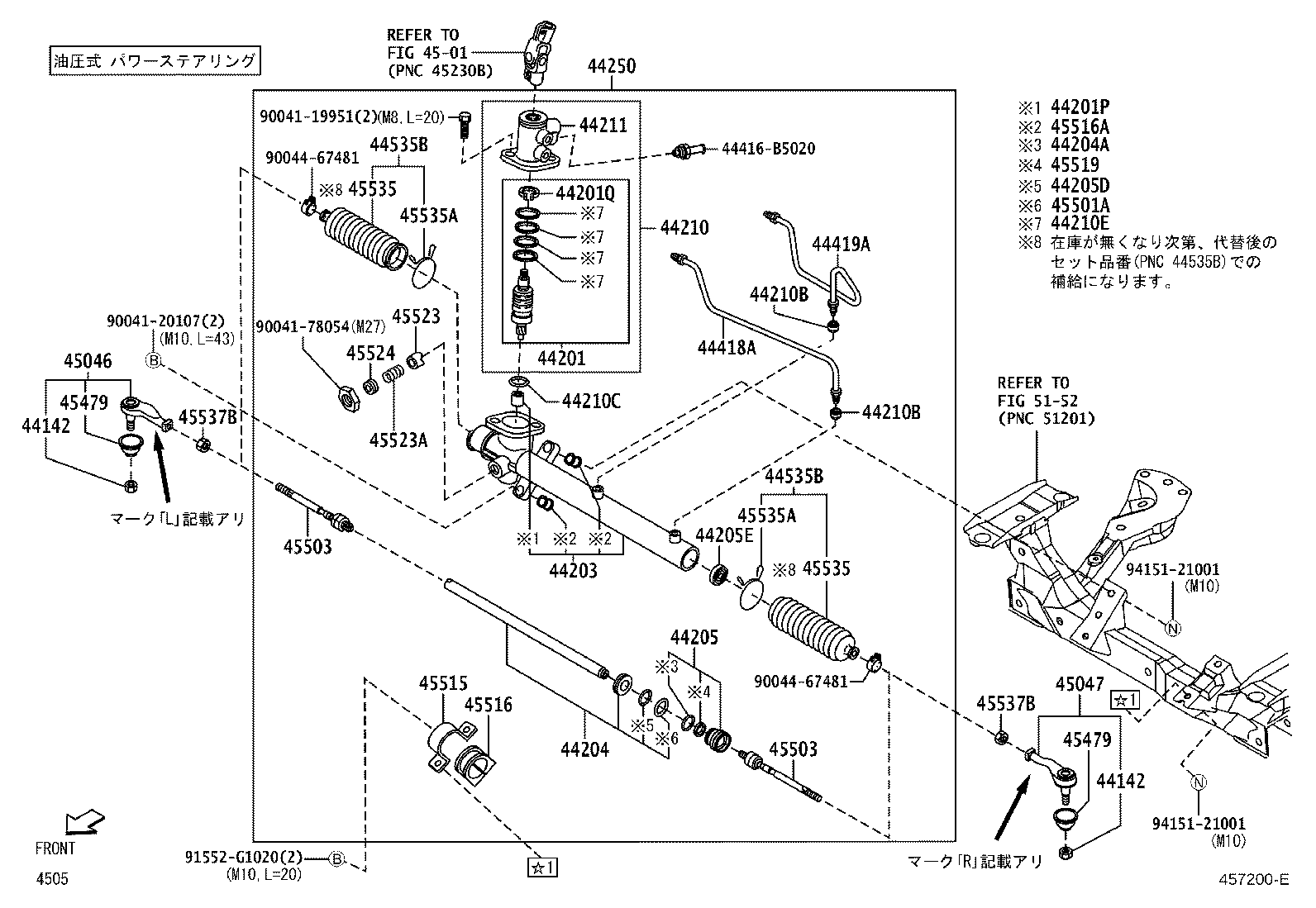

Toyota Pixis van S321M FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
44142 - NUT, LOCK
90041-78058	S321,331..PS1 M12	12/2011 - 04/2015	2
44142 - NUT, LOCK
90041-78058	S321,331..PS1 M12	12/2011 - 04/2015	2
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-B5010	S321,331..PS1	12/2011 - 04/2015	1
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44483-97501	S321,331..PS1	12/2011 - 04/2015	1
44201Q - RING, O(FOR POWER STEERING CONTROL VALVE)
44486-97202	S321,331..PS1	12/2011 - 04/2015	1
44203 - HOUSING SUB-ASSY, POWER STEERING RACK
44203-B5011	S321,331..PS1	12/2011 - 04/2015	1
44204 - RACK SUB-ASSY, POWER STEERING
44204-B5010	S321,331..PS1	12/2011 - 04/2015	1
44204A - RING(FOR RACK STEERING PISTON)
44485-97203	S321,331..PS1	12/2011 - 04/2015	1
44205 - STOPPER SUB-ASSY, CYLINDER END
44205-97501	S321,331..PS1	12/2011 - 04/2015	1
44205D - RING, O(FOR POWER STEERING RACK BUSH)
44485-97201	S321,331..PS1	12/2011 - 04/2015	1
44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH)
44482-97202	S321,331..PS1	12/2011 - 04/2015	1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-B5010	S321,331..PS1	12/2011 - 04/2015	1
44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44492-97204	S321,331..PS1	12/2011 - 04/2015	2
44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44492-97204	S321,331..PS1	12/2011 - 04/2015	2
44210C - RING, O(FOR POWER STEERING CONTROL VALVE)
44485-97204	S321,331..PS1	12/2011 - 04/2015	1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44481-97204	S321,331..PS1	12/2011 - 04/2015	4
44211 - HOUSING, CONTROL VALVE
44022-B5010	S321,331..PS1	12/2011 - 04/2015	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-B5011	S321,331..PS1	12/2011 - 04/2015	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-B5010	S321,331..PS1	12/2011 - 04/2015	1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-B5010	S321,331..PS1	12/2011 - 04/2015	1
44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING)
45535-B9040	S321,331..PS1	12/2011 - 04/2015	2
44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING)
45535-B9040	S321,331..PS1	12/2011 - 04/2015	2
45046 - END SUB-ASSY, TIE ROD, RH
45047-B9090	S321,331..PS1 ﾏｰｸ L,右側用	12/2011 - 04/2015	1
45047 - END SUB-ASSY, TIE ROD, LH
45046-B9110	S321,331..PS1 ﾏｰｸ R,左側用	12/2011 - 04/2015	1
45479 - SEAL, STEERING LINK JOINT DUST
45479-87508	S321,331..PS1	12/2011 - 04/2015	2
45479 - SEAL, STEERING LINK JOINT DUST
45479-87508	S321,331..PS1	12/2011 - 04/2015	2
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
44482-97201	S321,331..PS1	12/2011 - 04/2015	1
45503 - END SUB-ASSY, STEERING RACK
45503-B5010	S321,331..PS1	12/2011 - 04/2015	2
45503 - END SUB-ASSY, STEERING RACK
45503-B5010	S321,331..PS1	12/2011 - 04/2015	2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-B5010	S321,331..PS1	12/2011 - 04/2015	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45517-B5010	S321,331..PS1	12/2011 - 04/2015	1
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-B5010	S321,331..PS1	12/2011 - 04/2015	2
45519 - PACKING, STEERING RACK HOUSING
45519-97201	S321,331..PS1	12/2011 - 04/2015	1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-97402	S321,331..PS1	12/2011 - 04/2015	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90045-01799	S321,331..PS1	12/2011 - 04/2015	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-97201	S321,331..PS1	12/2011 - 04/2015	1
45535 - BOOT, STEERING RACK, NO.1
45535-97202	S321,331..PS1	12/2011 - 11/2017	2
45535 - BOOT, STEERING RACK, NO.1
45535-97202	S321,331..PS1	12/2011 - 11/2017	2
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-97201	S321,331..PS1	12/2011 - 04/2015	2
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-97201	S321,331..PS1	12/2011 - 04/2015	2
45537B - NUT, RACK END LOCK
94130-61200	S321,331..PS1 M12	12/2011 - 04/2015	2
45537B - NUT, RACK END LOCK
94130-61200	S321,331..PS1 M12	12/2011 - 04/2015	2
Common parts
44416-B5020
90041-19951
90041-20107
90041-78054
90044-67481
91552-G1020
94151-21001
Linked diagrams
4501
5152

S321M-SPRFU (2011)

(1112-1711)
