S321M-SPRFU (2011)

Toyota Pixis Van

Production Dec 2011 - Apr 2015
Engine KFVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1504)4FC..PS1

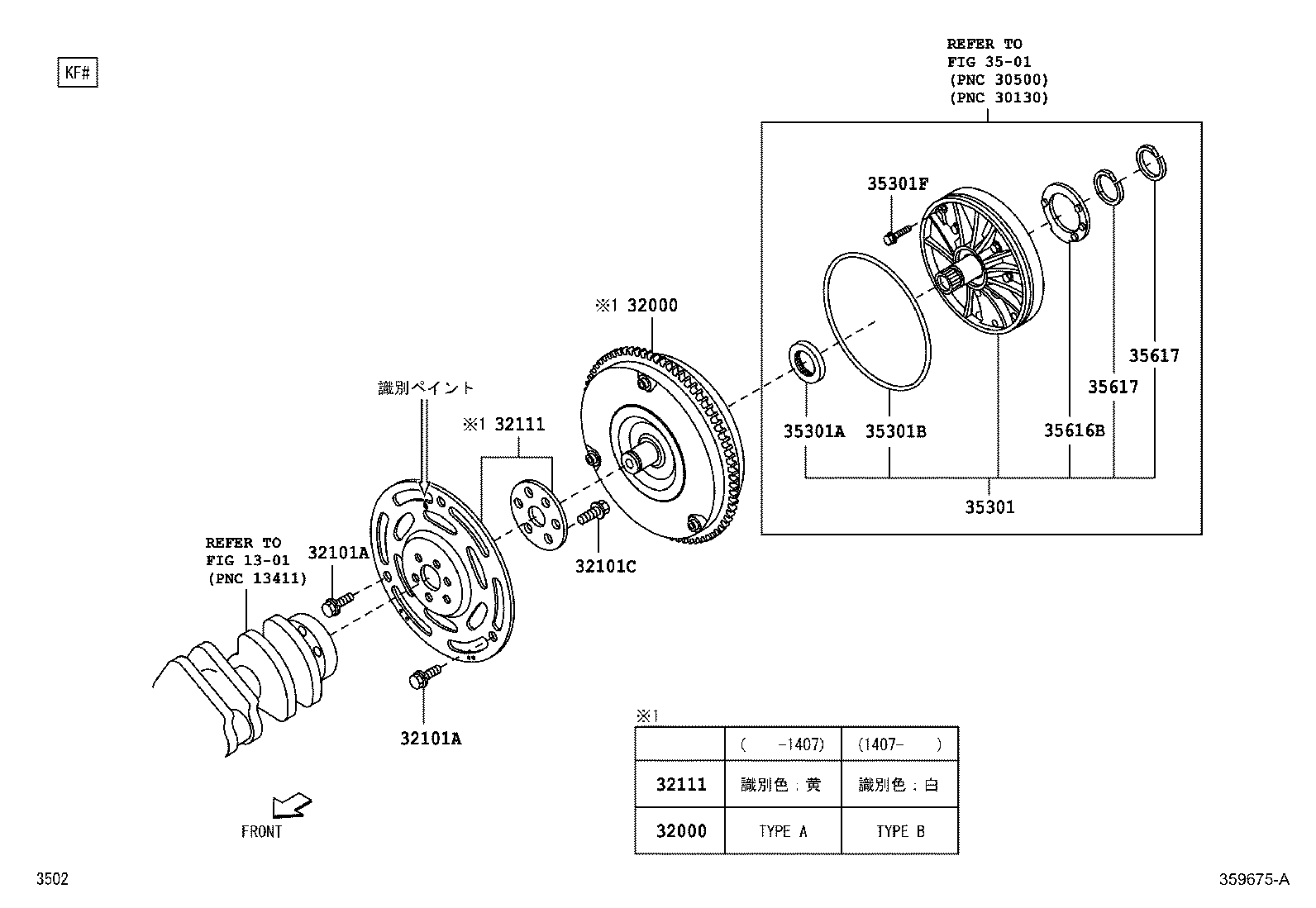

Click highlighted areas on diagram

diagram 1301 32000 32000 32101A 32101A 32101C 32111 32111 3501 35301 35301A 35301B 35301F 35616B 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-B5070

S321,331..4FC..NTBO..PS1

ﾀｲﾌﾟ B

 1
32000-B5080

S321,331..4FC..TBO..PS1

ﾀｲﾌﾟ B

 1
32000-B5050

S321,331..4FC..NTBO

ﾀｲﾌﾟ A

 1
32000-B5060

S321,331..4FC..TBO

ﾀｲﾌﾟ A

 1
32000 - CONVERTER ASSY, TORQUE
32000-B5070

S321,331..4FC..NTBO..PS1

ﾀｲﾌﾟ B

 1
32000-B5080

S321,331..4FC..TBO..PS1

ﾀｲﾌﾟ B

 1
32000-B5050

S321,331..4FC..NTBO

ﾀｲﾌﾟ A

 1
32000-B5060

S321,331..4FC..TBO

ﾀｲﾌﾟ A

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05542

S321,331..4FC..PS1

ﾌﾞﾗｯｸ(M10､L=10.7)

 2
90041-05541

S321,331..4FC..PS1

ｼﾙﾊﾞｰ(M10､L=10.2)

 1
90041-19899

S321,331..4FC

ﾎﾞﾙﾄW/WASHERﾀｲﾌﾟ

 3
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05542

S321,331..4FC..PS1

ﾌﾞﾗｯｸ(M10､L=10.7)

 2
90041-05541

S321,331..4FC..PS1

ｼﾙﾊﾞｰ(M10､L=10.2)

 1
90041-19899

S321,331..4FC

ﾎﾞﾙﾄW/WASHERﾀｲﾌﾟ

 3
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

S321,331..4FC..PS1

M10,L=19.5(ｼｰﾙﾎﾞﾙﾄ)

 6
32111 - PLATE, PUMP IMPELLER DRIVE
32103-B5010

S321,331..4FC

識別ﾍﾟｲﾝﾄ=黄

 1
32103-B5050

S321,331..4FC..PS1

識別ﾍﾟｲﾝﾄ=無し

 1
32103-B5040

S321,331..4FC

識別ﾍﾟｲﾝﾄ=白

 1
32111 - PLATE, PUMP IMPELLER DRIVE
32103-B5010

S321,331..4FC

識別ﾍﾟｲﾝﾄ=黄

 1
32103-B5050

S321,331..4FC..PS1

識別ﾍﾟｲﾝﾄ=無し

 1
32103-B5040

S321,331..4FC

識別ﾍﾟｲﾝﾄ=白

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35310-97206

S321,331..4FC..PS1

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90043-11336

S321,331..4FC..PS1

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90043-01161

S321,331..4FC..PS1

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90041-05122

S321,331..4FC..PS1

M6,L=30

 7
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-97201

S321,331..4FC..PS1

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-87205

S321,331..4FC..PS1

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-87205

S321,331..4FC..PS1

 2
Linked diagrams
1301
3501
