S510U-TQRF (2016)

Toyota Pixis Truck

Production Oct 2016 - Jun 2018
Engine KFVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

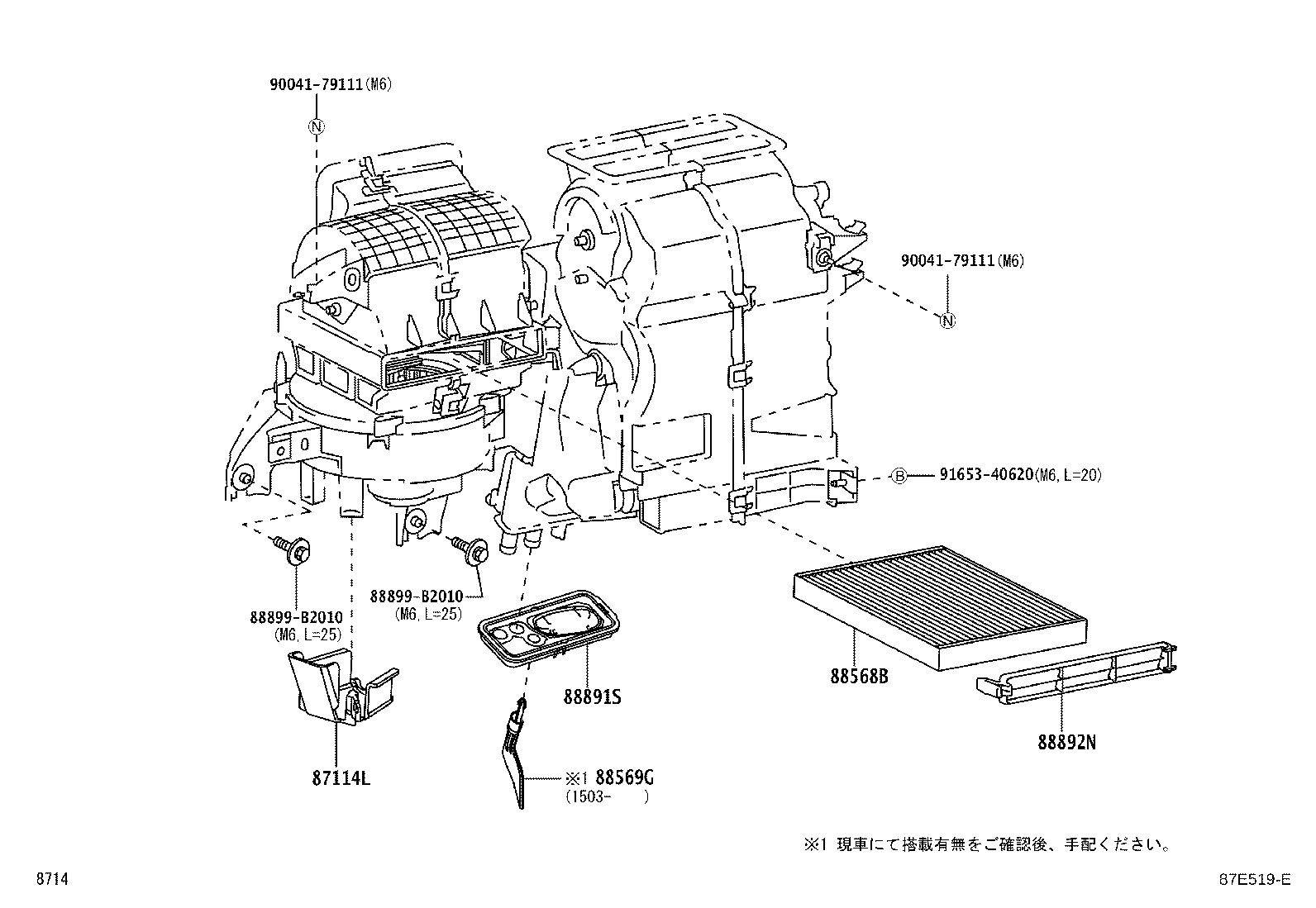

ILLUST NO. 1 OF 2(1409- )

Click highlighted areas on diagram

diagram 87114L 88568B 88569G 88891S 88892N 88899B2010 88899B2010 9004179111 9004179111 9165340620
Part # Description Qty Price
87114L - COVER, HEATER, NO.2
87114-B5040

S500,510

 1
88568B - FILTER, AIR
88568-B2060

S500,510

ﾉｳｷﾞｮｳｼﾞｮｼﾊﾟｯｸ

 1
88568-B2030

S500,510

 1
88569G - CLAMP
87124-B5040

S500,510

ﾄﾞﾚﾝ ｶﾞｲﾄﾞ ｸﾘｯﾌﾟ

 1
88891S - COVER, COOLER, NO.1
88891-B5020

S500,510

 1
88891-B5010

S500,510..SPL

ｴｱｺﾝ/ﾊﾟﾜｽﾃ ﾚｽ ﾊﾟｯｸ,ｸｰﾗｰ機能 無し

 1
88892N - COVER, COOLER, NO.2
88892-B5040

S500,510

 1
Common parts
88899-B2010
90041-79111
91653-40620
