S510U-TQRF (2016)

Toyota Pixis Truck

Production Oct 2016 - Jun 2018
Engine KFVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

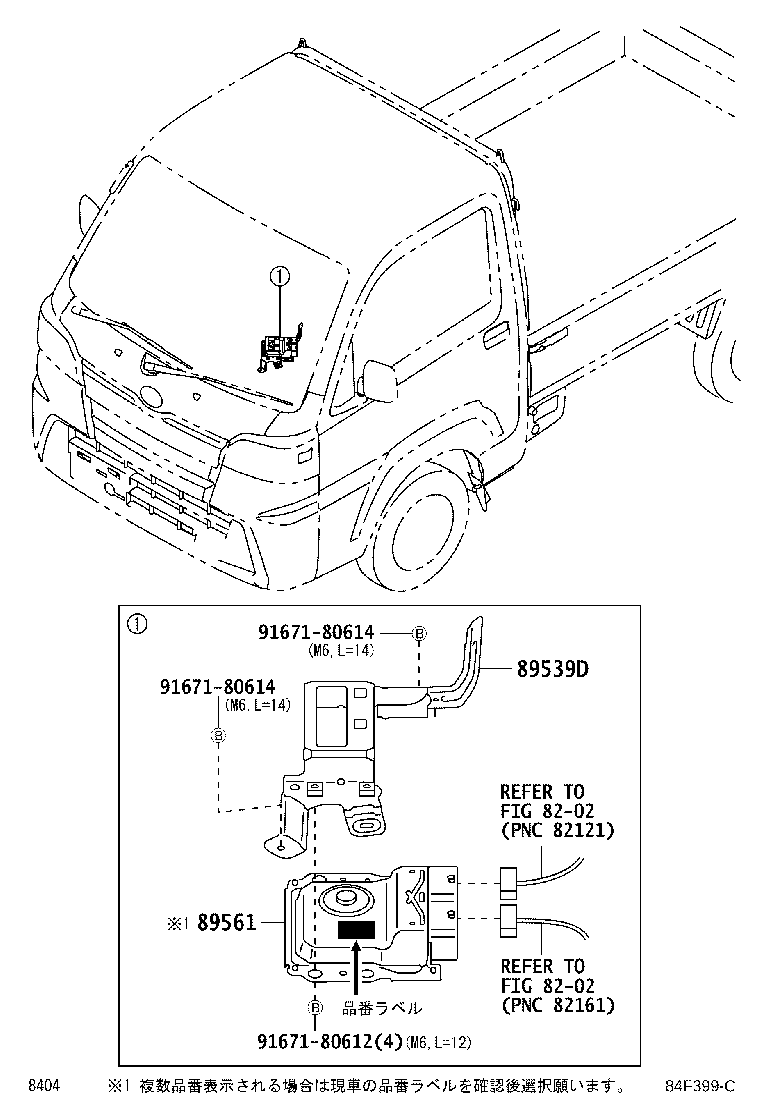

Click highlighted areas on diagram

diagram 8202 8202 89539D 89561 9167180612 9167180614 9167180614
Part # Description Qty Price
89539D - BRACKET, COMPUTER
89539-B5160

S500,510

 1
89561 - COMPUTER, FUEL INJECTION
89560-B5N01

S500,510..4AT

DENSO,品番ﾗﾍﾞﾙ有り

 1
89560-B5N02

S500,510..4AT

DENSO,品番ﾗﾍﾞﾙ有り

 1
89560-B5N03

S500,510..4AT

DENSO,品番ﾗﾍﾞﾙ有り

 1
Common parts
91671-80612
91671-80614
Linked diagrams
8202
