S510U-TQRF (2016)

Toyota Pixis Truck

Production Oct 2016 - Jun 2018
Engine KFVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

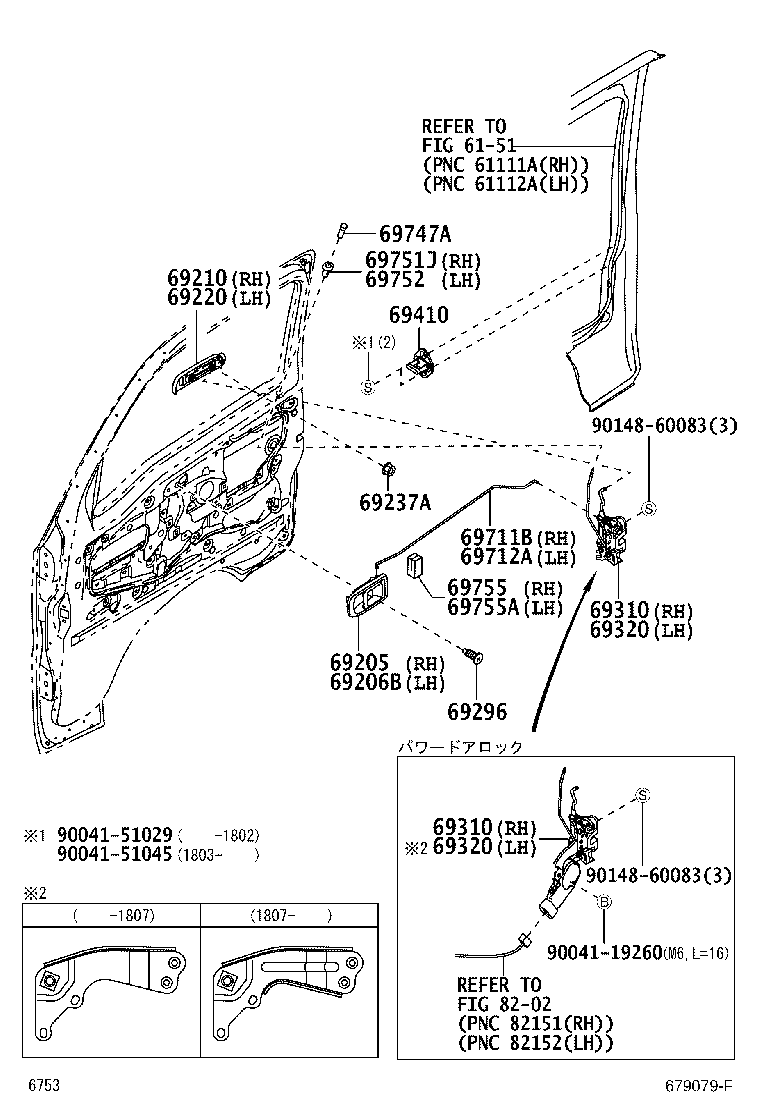

Click highlighted areas on diagram

diagram 6151 69205 69206B 69210 69220 69237A 69296 69310 69310 69320 69320 69410 69711B 69712A 69747A 69751J 69752 69755 69755A 8202 9004119260 9004151029 9004151045 9014860083 9014860083
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-87707B2

S500,510

DK.GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-87707B2

S500,510

DK.GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-B5020J3

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,DK.PURPLISH BLUE ME.CS,B70

 1
69210-B5020B1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,SILVER ME.,S28

 1
69210-B5020G0

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,LIME GREEN ME.,G51

 1
69210-B5010

S500,510..SPL

塗装不要,材料着色 黒色

 1
69210-B5020C1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,BLACK M.M.,X07

 1
69210-B5020D3

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,ORANGE ME.,R71

 1
69210-B5020J2

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,PALE BLUE M.M.,B69

 1
69210-B5020E0

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,LT.ROSE M.M.,T22

 1
69210-B5020G2

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,MINT ME.,G59

 1
69210-B5020G1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,KHAKI ME.,G55

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-B5020G0

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,LIME GREEN ME.,G51

 1
69220-B5020J3

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,DK.PURPLISH BLUE ME.CS,B70

 1
69220-B5020D3

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,ORANGE ME.,R71

 1
69220-B5020C1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,BLACK M.M.,X07

 1
69220-B5020E0

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,LT.ROSE M.M.,T22

 1
69220-B5020G1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,KHAKI ME.,G55

 1
69220-B5010

S500,510..SPL

塗装不要,材料着色 黒色

 1
69220-B5020B1

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,SILVER ME.,S28

 1
69220-B5020J2

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,PALE BLUE M.M.,B69

 1
69220-B5020G2

S500,510..SPL

ｶﾗｰﾊﾟｯｸ,MINT ME.,G59

 1
69237A - NUT, FRONT DOOR HANDLE
90041-79104

S500,510

M6

 4
69296 - SCREW, DOOR INSIDE HANDLE
90041-62057

S500,510

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-B5100

S500,510..SPL

ﾓｰﾀｰ無し

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-B5100

S500,510..SPL

ﾓｰﾀｰ無し

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-B5060

S500,510..SPL

ﾓｰﾀｰ無し

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-B5060

S500,510..SPL

ﾓｰﾀｰ無し

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-B2030

S500,510

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-B5020

S500,510

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-B5020

S500,510

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69743-B5010B2

S500,510

DK.GRAY,TRIM1#

 2
69743-B5010C0

S500,510

BLACK,TRIM2#

 2
69751J - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-87502C1

S500,510

BLACK,TRIM2#

 1
69751-87502B2

S500,510

DK.GRAY,TRIM1#

 1
69752 - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-87502C1

S500,510

BLACK,TRIM2#

 1
69751-87502B2

S500,510

DK.GRAY,TRIM1#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-87207

S500,510

 1
69755A - SILENCER, FRONT DOOR LOCK LINK
69759-87207

S500,510

 1
Common parts
90041-19260
90041-51029
90041-51045
90148-60083
Linked diagrams
6151
8202
