S510U-TQRF (2016)

Toyota Pixis Truck

Production Oct 2016 - Jun 2018
Engine KFVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

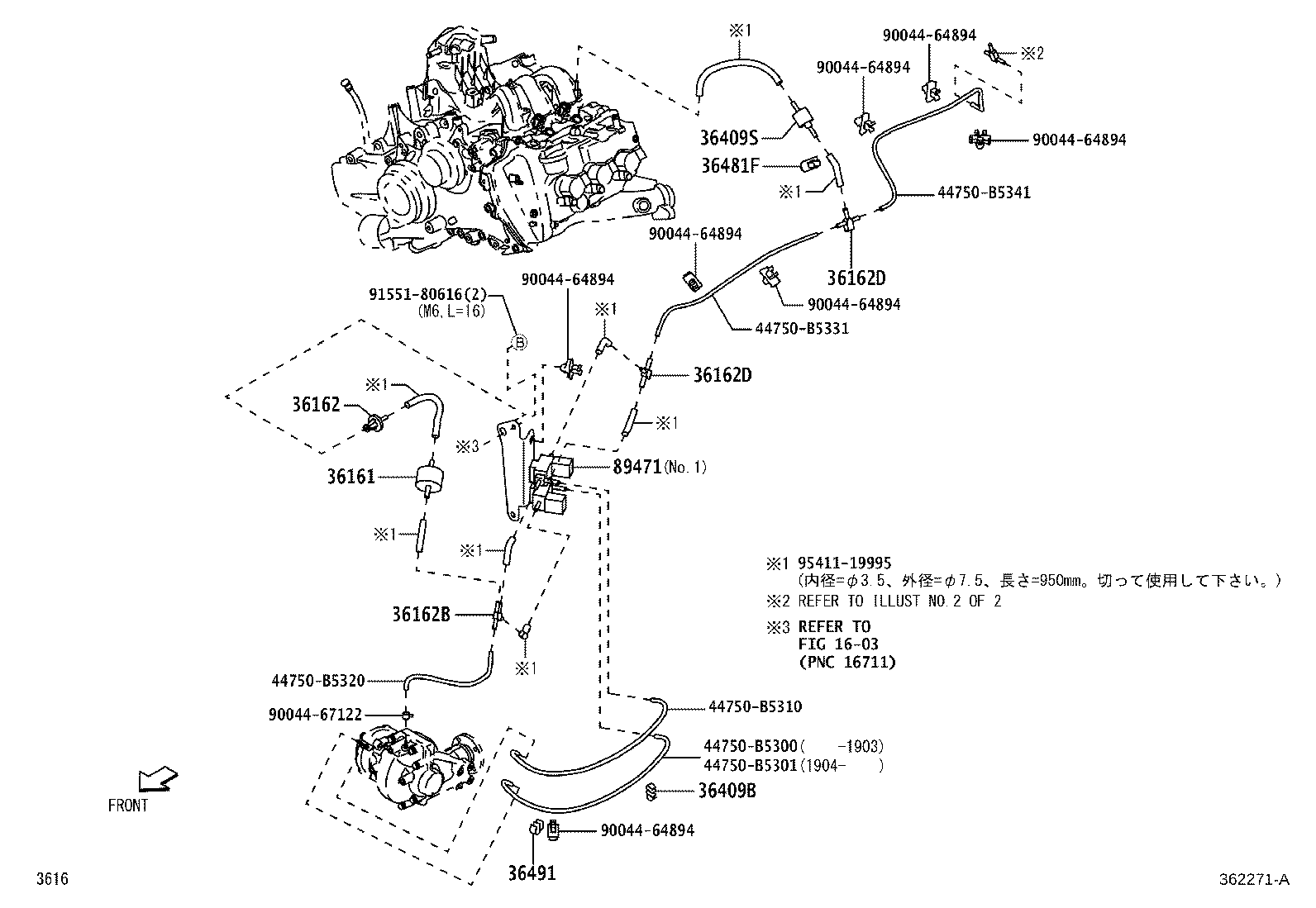

ILLUST NO. 1 OF 2(1409- )S510

Click highlighted areas on diagram

diagram 1603 36161 36162 36162B 36162D 36162D 36409B 36409S 36481F 36491 44750B5300 44750B5301 44750B5310 44750B5320 44750B5331 44750B5341 89471 9004464894 9004464894 9004464894 9004464894 9004464894 9004464894 9004464894 9004467122 9155180616 9541119995
Part # Description Qty Price
36161 - FILTER ASSY, AIR(FOR FRONT)
90048-24010

S510

 2
36162 - WAY, 2(FOR FRONT CHECK VALVE)
90044-12061

S510

 1
36162B - WAY, 4(FOR TRANSFER VACUUM)
90044-14015

S510..4AT;S510..SPL..5MT

 1
36162D - WAY, 3(FOR REAR CHECK VALVE)
90044-13053

S510..4AT;S510..SPL..5MT

 3
36162D - WAY, 3(FOR REAR CHECK VALVE)
90044-13053

S510..4AT;S510..SPL..5MT

 3
36409B - CLAMP, VACUUM TUBE
90044-64110

S510

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90048-20008

S510

 1
36481F - CLAMP, NO.3(FOR TRANSFER VACUUM)
90044-64761

S510

 1
36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1
90044-64108

S510..4AT;S510..SPL..5MT

 1
89471 - VALVE ASSY, VACUUM SWITCHING
89470-B5080

S510

NO.1

 1
89470-B5090

S510

NO.2

 1
Common parts
44750-B5300
44750-B5301
44750-B5310
44750-B5320
44750-B5331
44750-B5341
90044-64894
90044-67122
91551-80616
95411-19995
Linked diagrams
1603
