S510U-TQNF (2014)

Toyota Pixis Truck

Production Sep 2014 - Oct 2016
Engine KFVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

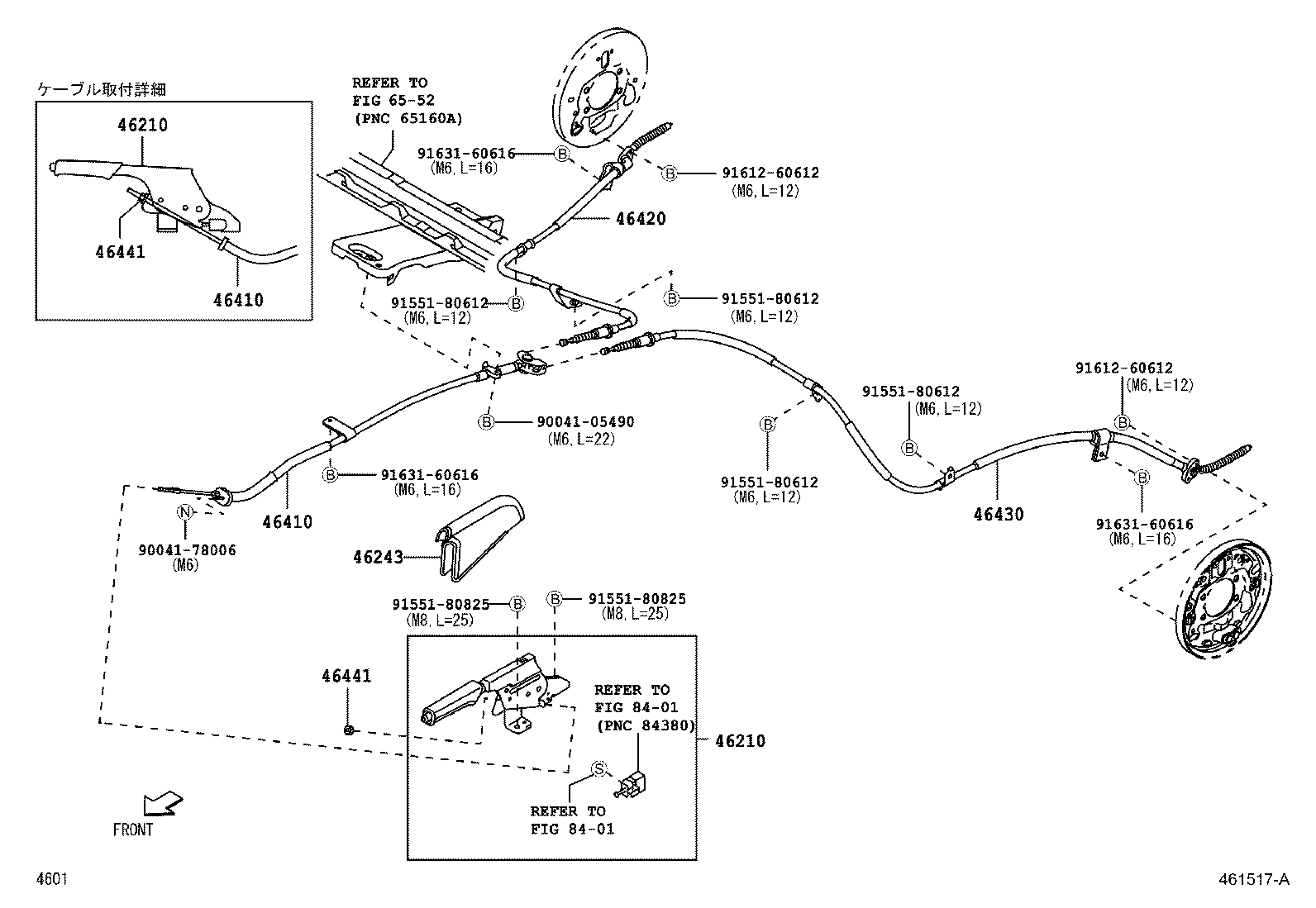

Click highlighted areas on diagram

diagram 46210 46210 46243 46410 46410 46420 46430 46441 46441 6552 8401 8401 9004105490 9004178006 9155180612 9155180612 9155180612 9155180612 9155180825 9155180825 9161260612 9161260612 9163160616 9163160616 9163160616
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-B5041B1

S500,510

DK.GRAY,TRIM1#

 1
46210 - LEVER ASSY, PARKING BRAKE
46210-B5041B1

S500,510

DK.GRAY,TRIM1#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-97501B1

S500,510

DK.GRAY,TRIM1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-B5050

S500,510

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-B5050

S500,510

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B5100

S500,510

 1
46420-B5090

S500,510

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B5060

S500,510

 1
46430-B5080

S500,510

 1
46441 - NUT, WIRE ADJUSTING, NO.1
94185-60600

S500,510

M6

 1
46441 - NUT, WIRE ADJUSTING, NO.1
94185-60600

S500,510

M6

 1
Common parts
90041-05490
90041-78006
91551-80612
91551-80825
91612-60612
91631-60616
Linked diagrams
6552
8401
