S211U-TMRF (2011)
Toyota Pixis Truck
Production
Dec 2011
-
Jul 2014
Engine
KFVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

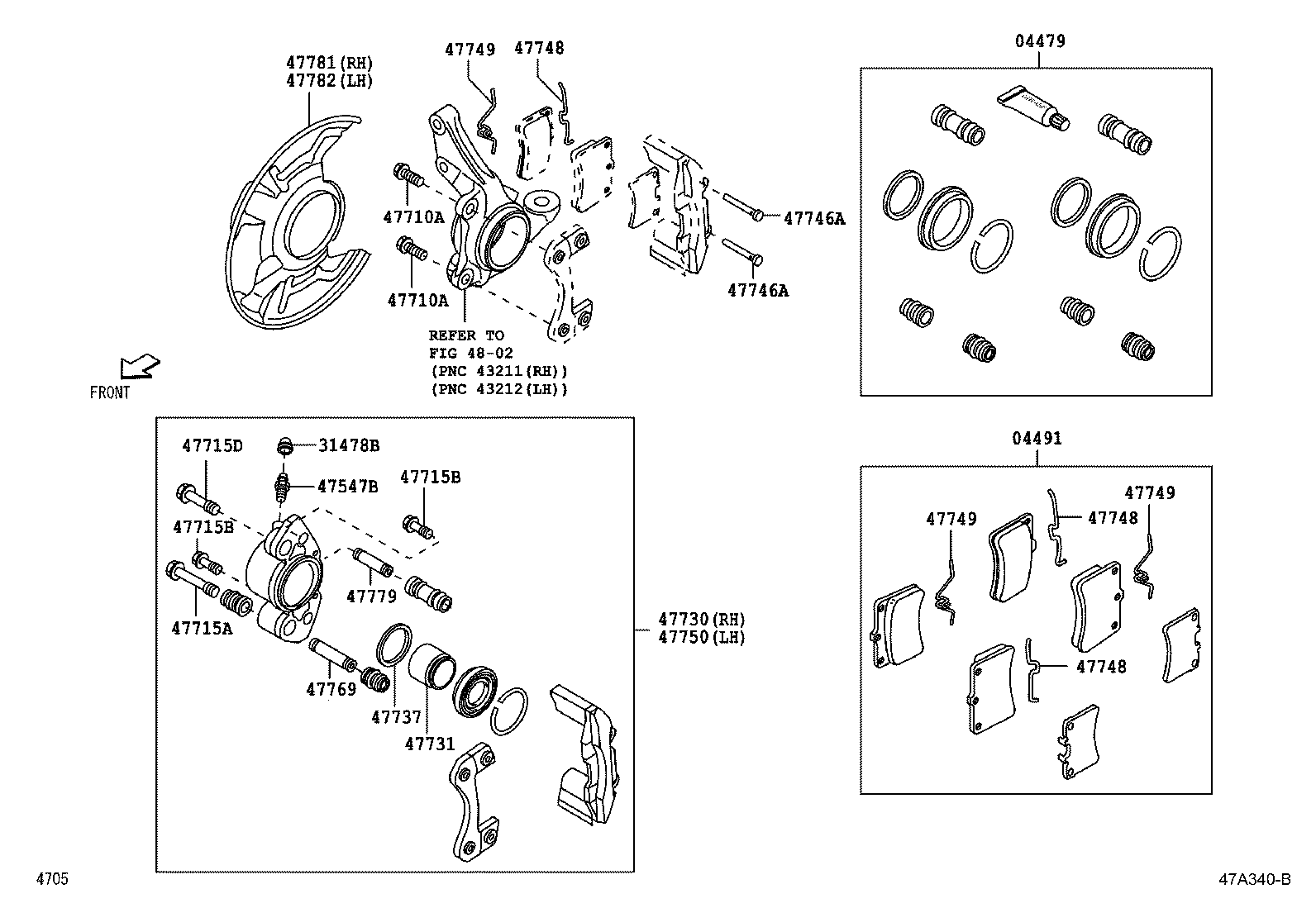

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-B5020 |
S201,211 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-B5020 |
S201,211 |
1 | ||
| 04465-B5021 |
S201,211 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 47548-87501 |
S201,211 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-87206 |
S201,211 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90041-05176 |
S201,211 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90041-05176 |
S201,211 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-97501 |
S201,211 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90041-01362 |
S201,211 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90041-01362 |
S201,211 |
4 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-97204 |
S201,211 |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-B5011 |
S201,211 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-B5010 |
S201,211 |
2 | ||
| 47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON | ||||
| 47737-97202 |
S201,211 |
2 | ||
| 47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT) | ||||
| 90042-40149 |
S201,211 |
4 | ||
| 47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT) | ||||
| 90042-40149 |
S201,211 |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-87501 |
S201,211 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-87501 |
S201,211 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-87501 |
S201,211 |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-87501 |
S201,211 |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-87501 |
S201,211 |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-87501 |
S201,211 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-B5011 |
S201,211 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-B5010 |
S201,211 |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-87202 |
S201,211 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-97503 |
S201,211 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47781-97503 |
S201,211 |
1 | ||
| Linked diagrams | ||||
| 4802 | ||||
