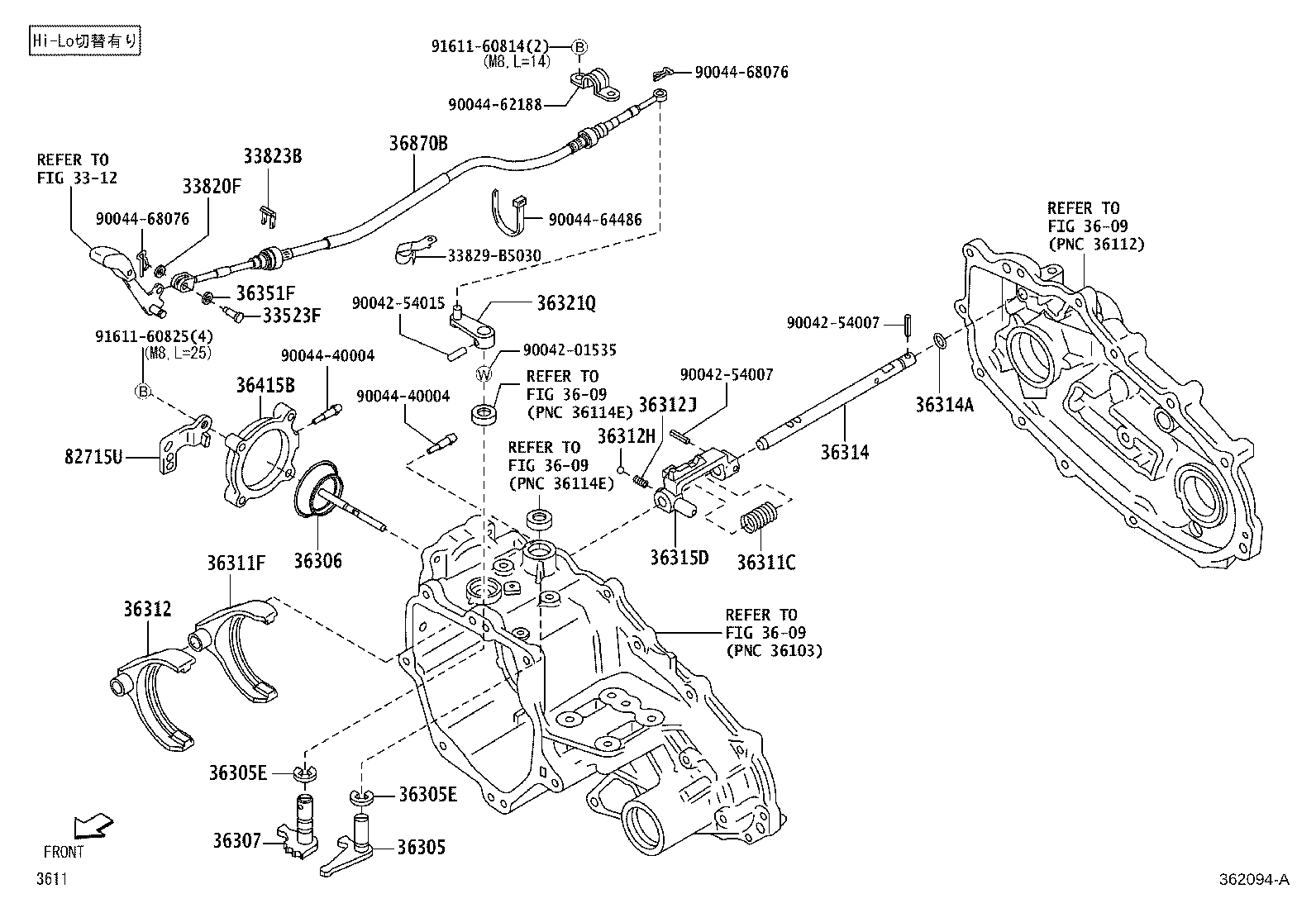

Toyota Pixis truck S211U TRANSFER LEVER & SHIFT ROD

Part #	Description	Period	Qty
33523F - PIN, SHIFT LEVER (FOR TRANSFER)
90042-41085	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 07/2014	1
33820F - WASHER, PLATE (FOR TRANSFER CONTROL CABLE)
90042-02110	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 07/2014	1
33823B - BRACKET, TRANSFER CONTROL CABLE
33837-B5010	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	01/2013 - 12/2999	1
90044-68075	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2012	1
36305 - LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK
36305-87502	S211	12/2011 - 12/2999	1
36305E - RING, E(FOR FRONT DRIVE SHIFT LINK LEVER)
90045-23007	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	2
90045-23007	S211..ATM;S211..MTM..SPL	12/2011 - 12/2999	1
36305E - RING, E(FOR FRONT DRIVE SHIFT LINK LEVER)
90045-23007	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	2
90045-23007	S211..ATM;S211..MTM..SPL	12/2011 - 12/2999	1
36306 - SHAFT SUB-ASSY, CONTROL
33205-B5020	S211..MTM..SPL	12/2011 - 12/2999	1
36306-87508	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
36307 - LEVER SUB-ASSY, HIGH & LOW SHIFT INNER
36307-87502	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
36311C - SPRING, COMPRESION (FOR SHIFT FORK)
90045-01673	S211	12/2011 - 12/2999	1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-B5010	S211	12/2011 - 12/2999	1
36312 - FORK, TRANSFER GEAR SHIFT, NO.2
36312-87508	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
36312H - BALL (FOR TRANSFER GEAR SHIFT FORK NO.2)
90043-60003	S211	12/2011 - 12/2999	1
36312J - SPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)
90045-01267	S211	12/2011 - 12/2999	1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-87507	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
36314-B5010	S211..MTM..SPL	12/2011 - 12/2999	1
36314A - RING, O (FOR TRANSFER SHIFT FORK SHAFT)
96711-19009	S211	12/2011 - 12/2999	1
36315D - HEAD, TRANSFER GEAR SHIFT, NO.1
36316-87505	S211	12/2011 - 12/2999	1
36321Q - LEVER, TRANSFER SHIFT
36321-87507	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
36351F - WASHER, WAVE (FOR TRANSFER SHIFT ROD)
90042-06048	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 07/2014	1
36415B - COVER, DIAPHRAGM CYLINDER
36415-87501	S211	12/2011 - 12/2999	1
36870B - CABLE ASSY, TRANSFER CONTROL
36870-B5010	S211..MTM..SPL ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)	12/2011 - 12/2999	1
82715U - BRACKET, WIRING HARNESS CLAMP
82715-B5060	S211	12/2011 - 07/2014	1
Common parts
33829-B5030
90042-01535
90042-54007
90042-54015
90044-40004
90044-62188
90044-64486
90044-68076
91611-60814
91611-60825
Linked diagrams
3312
3609

S211U-TMRF (2011)

(1112-1407)S211..MTM
