S211U-TMRF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014
Engine KFVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

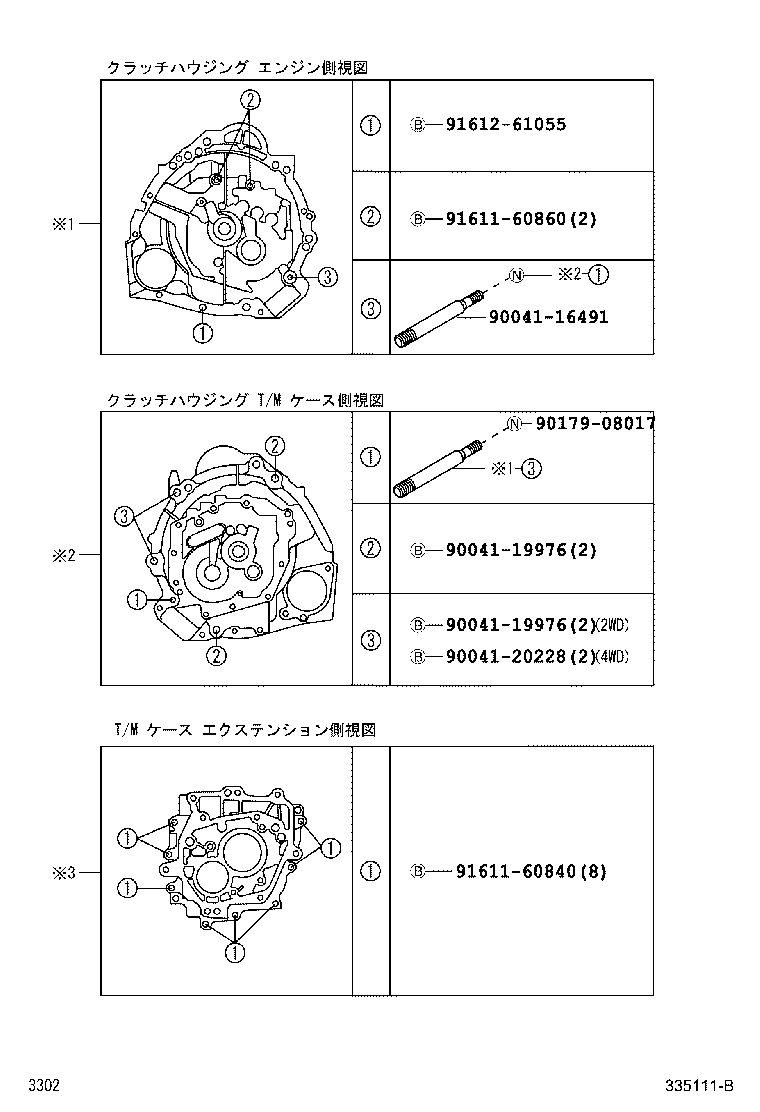

ILLUST NO. 2 OF 2(1112- )MTM

Click highlighted areas on diagram

diagram 9004116491 9004119976 9004119976 9004120228 9017908017 9161160840 9161160860 9161261055
Part # Description Qty Price
Common parts
90041-16491
90041-19976
90041-20228
90179-08017
91611-60840
91611-60860
91612-61055

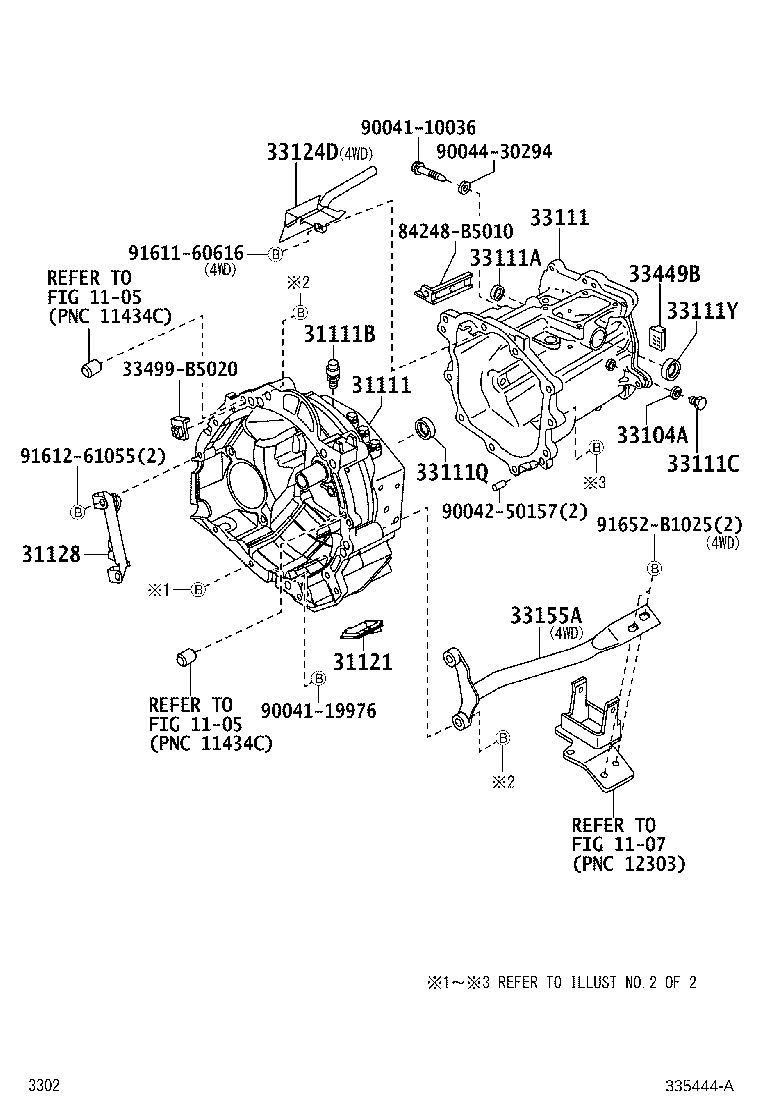

ILLUST NO. 1 OF 2(1112- )MTM

Click highlighted areas on diagram

diagram 1105 1105 1107 31111 31111B 31121 31128 33104A 33111 33111A 33111C 33111Q 33111Y 33124D 33155A 33449B 33499B5020 84248B5010 9004110036 9004119976 9004250157 9004430294 9161160616 9161261055 91652B1025
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-B5010

S201,211..MTM

 1
31111-B5020

S201,211..MTM

 1
31111B - PLUG(FOR CLUTCH HOUSING)
90049-15026

S201,211..MTM

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-87504

S201,211..MTM

 1
31128 - COVER, CLUTCH HOUSING UNDER
31128-B5020

S201,211..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90044-30186

S201,211..MTM

穴塞ぎ用

 1
33111 - CASE, MANUAL TRANSMISSION
33111-B5010

S201,211..MTM

 1
33111-97501

S201,211..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90043-31025

S201,211..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90043-41085

S201,211..MTM

穴塞ぎ用

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90043-10051

S201,211..MTM

 1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
90043-11308

S201,211..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-B5020

S211..MTM

 1
33155A - STIFFENER, POWER TRAIN
36119-B5020

S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
36119-B5020

S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)&ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ有り

 1
36119-B5030

S211..MTM..SPL

 1
33449B - MAGNET, TRANSMISSION
33449-87501

S201,211..MTM

 1
Common parts
33499-B5020
84248-B5010
90041-10036
90041-19976
90042-50157
90044-30294
91611-60616
91612-61055
91652-B1025
Linked diagrams
1105
1107
