S211U-TMRF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014
Engine KFVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )MTM

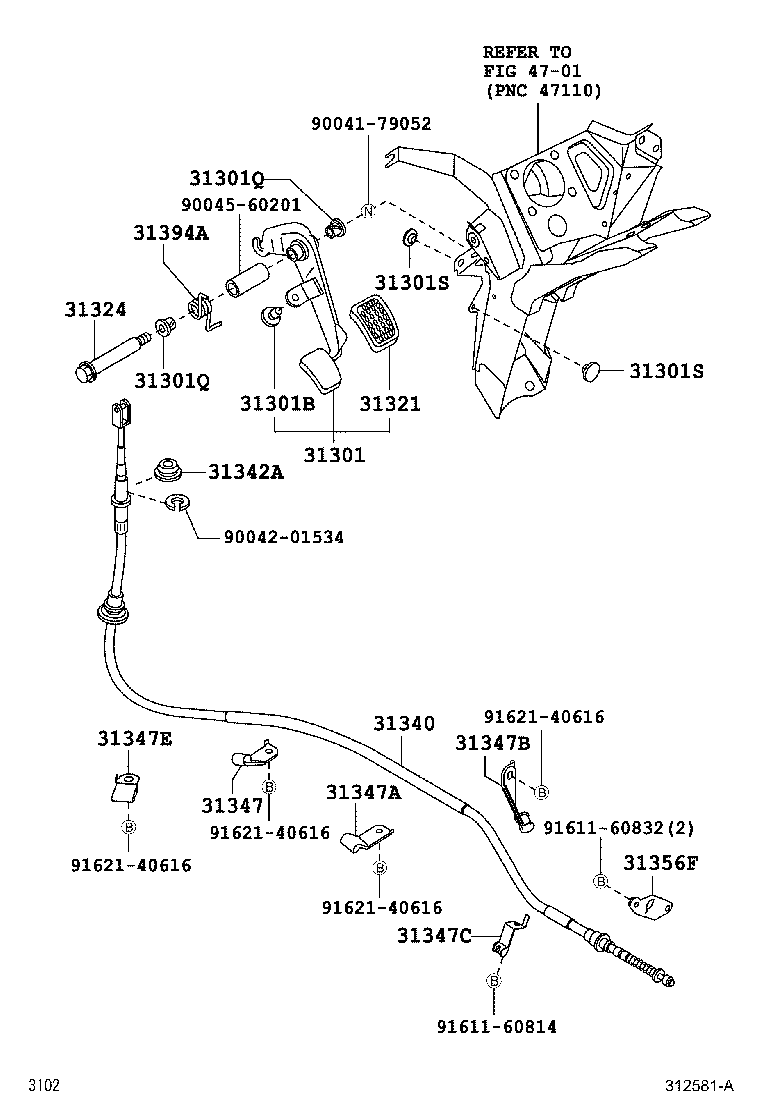

Click highlighted areas on diagram

diagram 31301 31301B 31301Q 31301Q 31301S 31301S 31321 31324 31340 31342A 31347 31347A 31347B 31347C 31347E 31356F 31394A 4701 9004179052 9004201534 9004560201 9161160814 9161160832 9162140616 9162140616 9162140616 9162140616
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-97506

S201,211..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90045-40158

S201,211..MTM

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90043-86121

S201,211..MTM

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90043-86121

S201,211..MTM

 2
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90045-40158

S201,211..MTM

 2
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90045-40158

S201,211..MTM

 2
31321 - PAD, CLUTCH PEDAL
31321-87503

S201,211..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91111-40860

S201,211..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-B5050

S201,211..MTM

 1
31342A - BUSH(FOR CLUTCH RELEASE CABLE)
90043-85162

S201,211..MTM

 1
31347 - CLAMP, CLUTCH CABLE
31347-97503

S201,211..MTM

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-97504

S201,211..MTM

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-97506

S201,211..MTM

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-B5060

S201,211..MTM

 1
31347E - CLAMP, CLUTCH CABLE, NO.4
90044-61827

S201,211..MTM

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31107-B5010

S201,211..MTM

 1
31125-B5010

S201,211..MTM

 1
31394A - SPRING, PEDAL W/HOOK
31394-97506

S201,211..MTM

 1
Common parts
90041-79052
90042-01534
90045-60201
91611-60814
91611-60832
91621-40616
Linked diagrams
4701
