Toyota Pixis truck S211U RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16360A - FAN ASSY, W/MOTOR
16360-B5012	KFVE..S201..MTM;KFVE..S211..SPL;KFVE..S201..ATM..SPL;KFVE..S211..MTM..EXT ﾈｰﾑ:422750−715*	12/2011 - 07/2014	1
16361 - FAN
16361-B1070	KFVE..S201..MTM;KFVE..S211..SPL;KFVE..S201..ATM..SPL;KFVE..S211..MTM..EXT ﾈｰﾑ:422750−715*	12/2011 - 07/2014	1
16363 - MOTOR, COOLING FAN
16363-B5040	KFVE..S201..MTM;KFVE..S211..SPL;KFVE..S201..ATM..SPL;KFVE..S211..MTM..EXT TYPE B:ｲﾗｽﾄ参照	12/2011 - 07/2014	1
16366 - LABEL, RADIATOR CAUTION
16366-87502	KFVE..S201,211	12/2011 - 07/2014	1
16400 - RADIATOR ASSY
16400-B5040	KFVE..S201,211..MTM	12/2011 - 05/2012	1
16400-B5041	KFVE..S201,211..MTM	06/2012 - 07/2014	1
16701 - SHROUD SUB-ASSY, FAN
16700-97510	KFVE..S201,211 ｺｰｼｮﾝﾗﾍﾞﾙｱﾘ	12/2011 - 07/2014	1
Common parts
16497-87201
16672-87201
90041-05422
90041-79141
91631-60814
91633-60845
91671-80618
91671-80825
Linked diagrams
1903

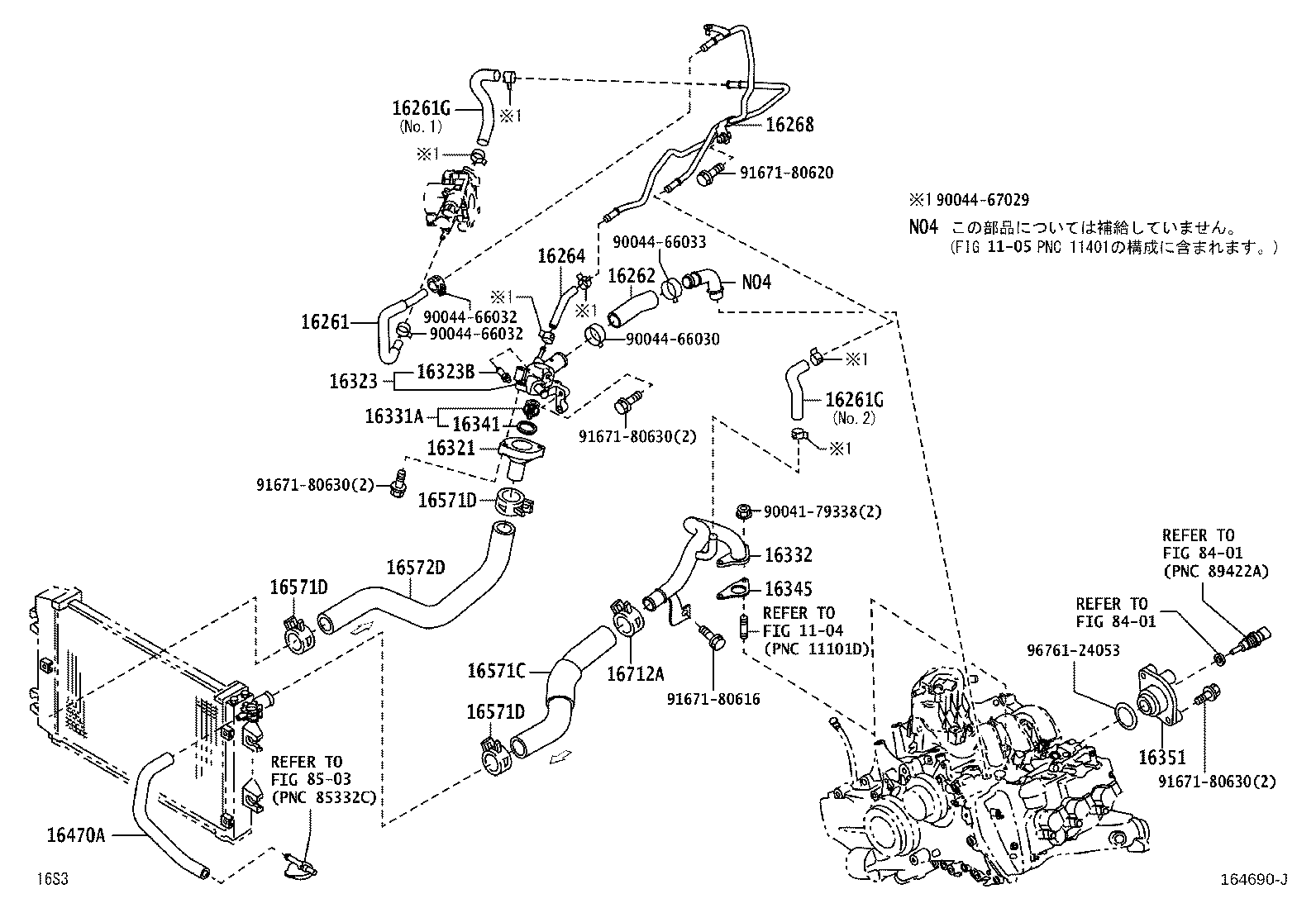

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-B2100	KFVE..S201,211 ｽﾉｰﾊﾞｰｼﾞｮﾝ	12/2011 - 04/2013	1
16268 - PIPE, WATER BY-PASS, NO.1
16268-B2020	KFVE..S201,211	12/2011 - 06/2012	1
16323B - PLUG(FOR WATER INLET HOUSING)
47546-87202	KFVE..S201,211	12/2011 - 07/2014	1
16332 - PIPE, WATER OUTLET, NO.1
16332-B2080	KFVE..S201,211	07/2012 - 07/2014	1
16332-B2060	KFVE..S201,211	12/2011 - 07/2012	1
Common parts
90041-79338
90044-66030
90044-66032
90044-66033
90044-67029
91671-80616
91671-80620
91671-80630
96761-24053
Linked diagrams
1104
1105
8401
8503

S211U-TMRF (2011)
