S211U-TMRF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014
Engine KFVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

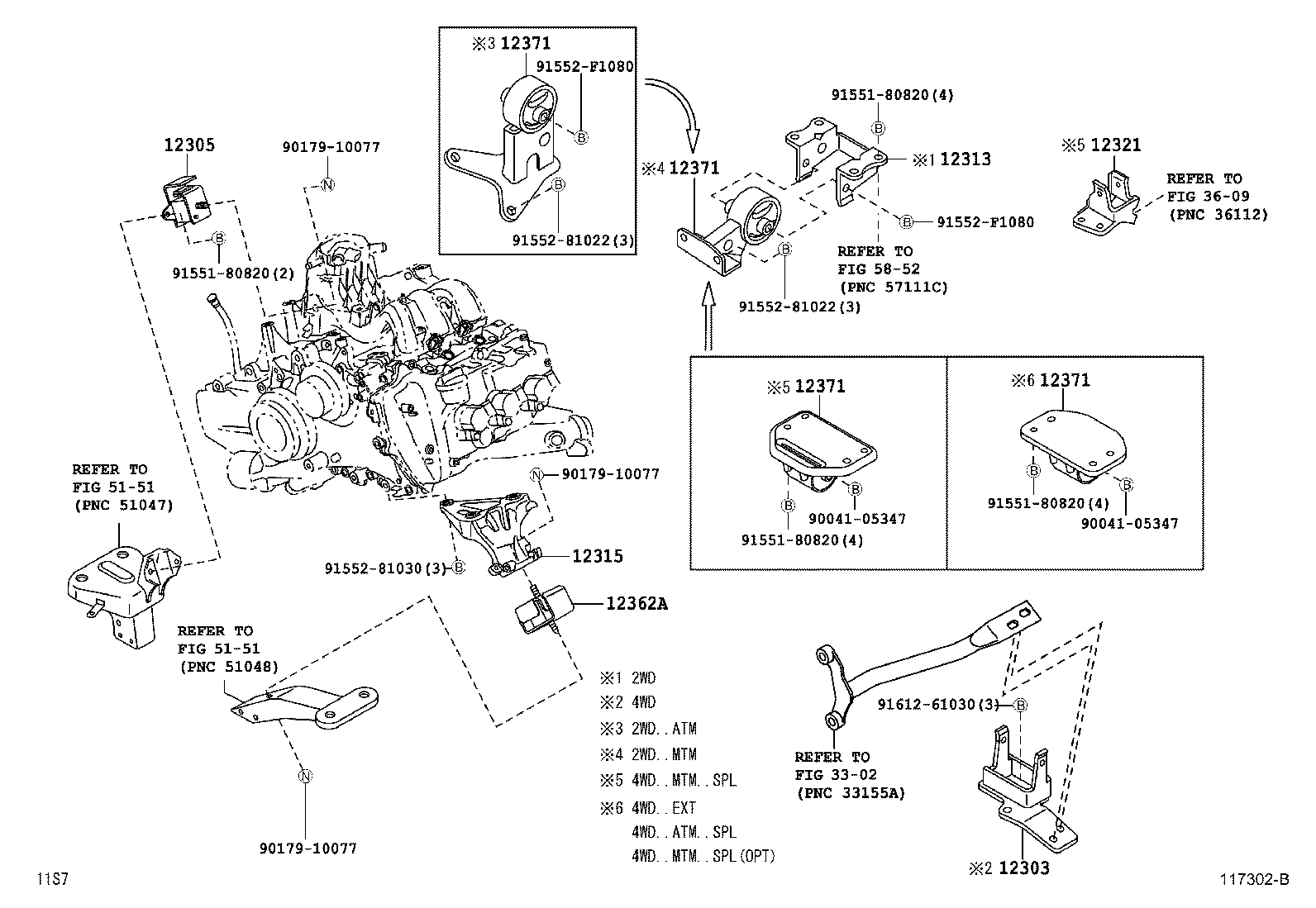

Click highlighted areas on diagram

diagram 12303 12305 12313 12315 12321 12362A 12371 12371 12371 12371 3302 3609 5151 5151 5852 9004105347 9004105347 9017910077 9017910077 9017910077 9155180820 9155180820 9155180820 9155180820 9155281022 9155281022 9155281030 91552F1080 91552F1080 9161261030
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12321-B5030

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)&ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ有り

 1
12321-B5030

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12361-B2010

KFVE..S201,211

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-B2080

KFVE..S201,211

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-B5040

KFVE..S211..MTM..SPL

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-B2070

KFVE..S201,211

 1
12362-B2071

KFVE..S201,211

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-B5030

KFVE..S211..MTM..SPL

 1
12371-B5040

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-B5030

KFVE..S211..MTM..SPL

 1
12371-B5040

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-B5030

KFVE..S211..MTM..SPL

 1
12371-B5040

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-B5030

KFVE..S211..MTM..SPL

 1
12371-B5040

KFVE..S211..MTM..SPL

ﾄﾗﾝｽﾌｧ(ﾊﾟｰﾄﾀｲﾑ HI―LO切替機構有り)

 1
Common parts
90041-05347
90179-10077
91551-80820
91552-81022
91552-81030
91552-F1080
91612-61030
Linked diagrams
3302
3609
5151
5852
