S211U-TMRF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014
Engine KFVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

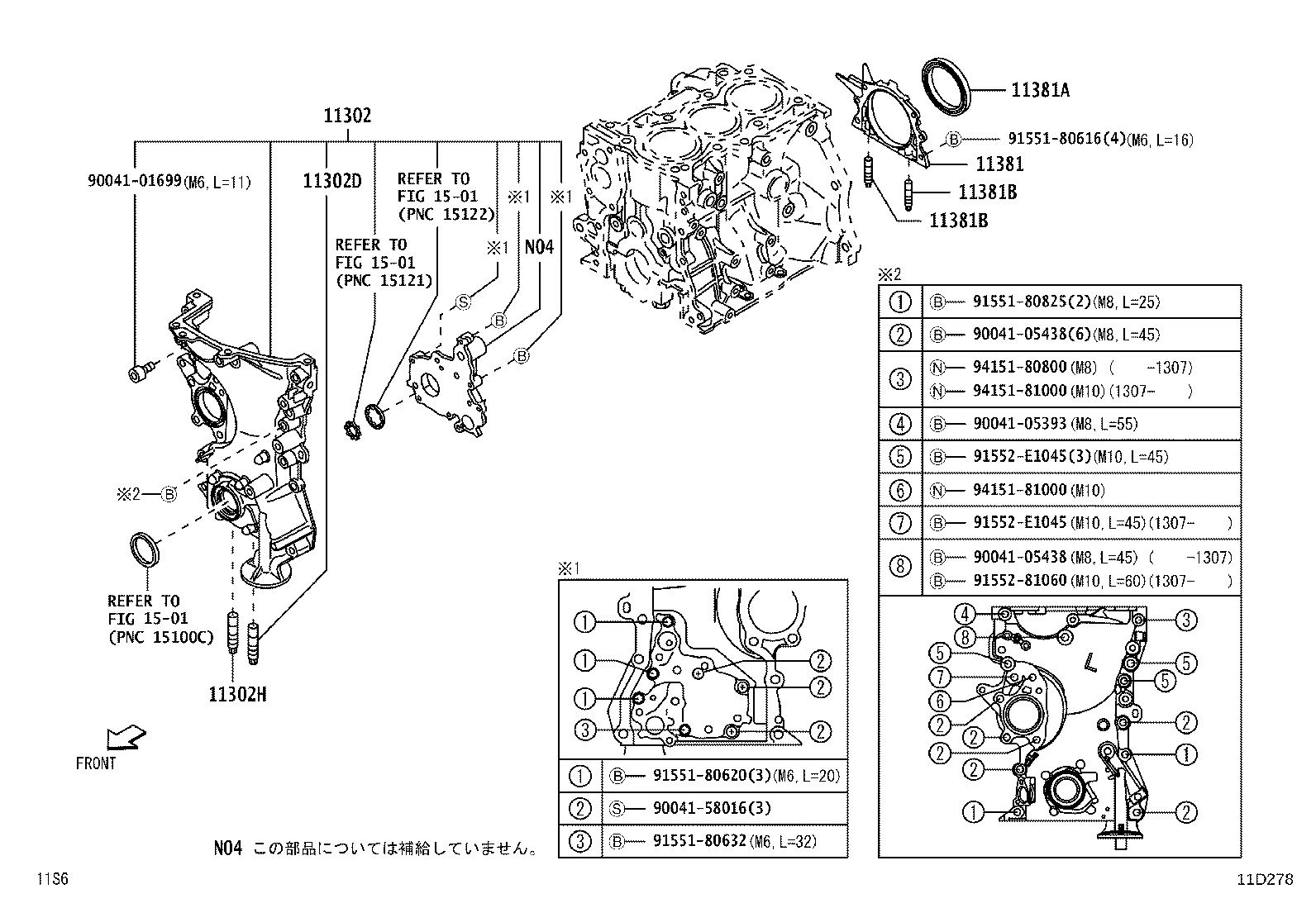

Click highlighted areas on diagram

diagram 11302 11302D 11302H 11381 11381A 11381B 11381B 1501 1501 1501 9004101699 9004105393 9004105438 9004105438 9004158016 9155180616 9155180620 9155180632 9155180825 9155281060 91552E1045 91552E1045 9415180800 9415181000 9415181000
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-B2083

KFVE..S201,211

ｲﾗｽﾄ参照

 1
11310-B2084

KFVE..S201,211

ｲﾗｽﾄ参照

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90041-26005

KFVE..S201,211

 1
90041-26002

KFVE..S201,211

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90041-26001

KFVE..S201,211

 1
90041-26006

KFVE..S201,211

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-B2030

KFVE..S201,211

 1
11381A - SEAL, ENGINE REAR OIL
90043-11364

KFVE..S201,211

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90041-26006

KFVE..S201,211

 2
90041-26001

KFVE..S201,211

 2
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90041-26006

KFVE..S201,211

 2
90041-26001

KFVE..S201,211

 2
Common parts
90041-01699
90041-05393
90041-05438
90041-58016
91551-80616
91551-80620
91551-80632
91551-80825
91552-81060
91552-E1045
94151-80800
94151-81000
Linked diagrams
1501
