S211U-TMRF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014
Engine KFVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1112- )

Click highlighted areas on diagram

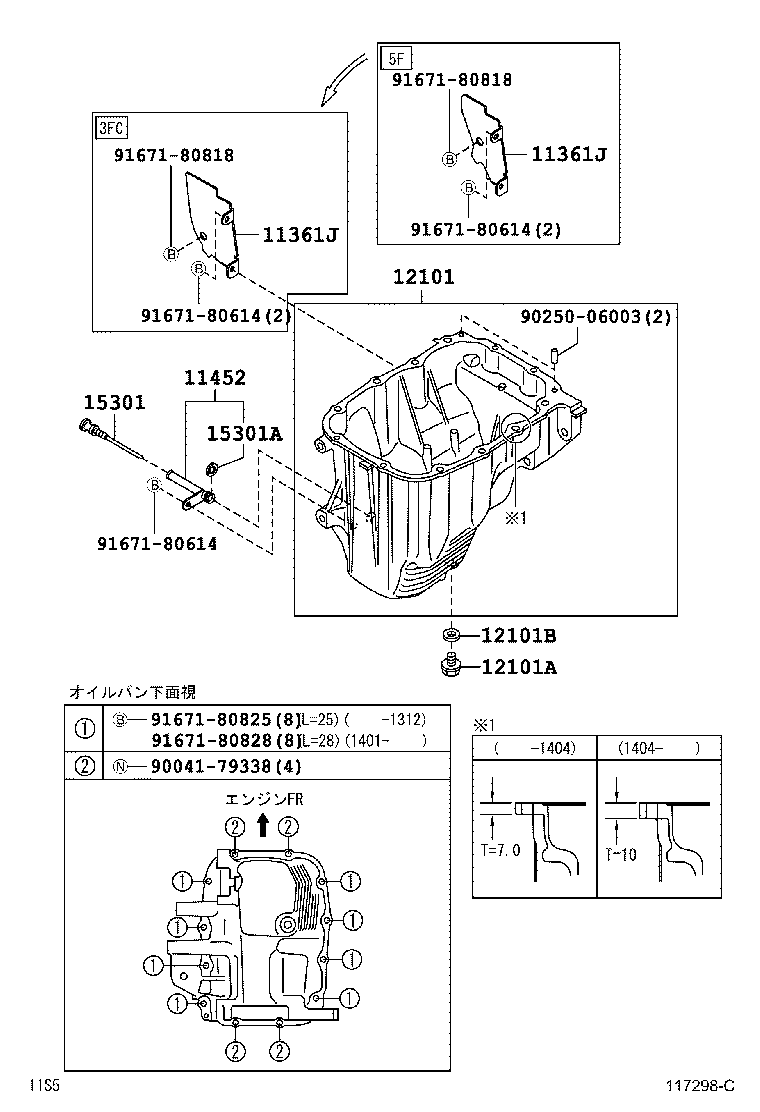

ｵｲﾙ ﾊﾟﾝ

diagram 11361J 11361J 11452 12101 12101A 12101B 15301 15301A 9004179338 9025006003 9167180614 9167180614 9167180614 9167180818 9167180818 9167180825 9167180828
Part # Description Qty Price
12101 - PAN SUB-ASSY, OIL
12101-B2031

KFVE..S201,211

厚さ=7.0,ｱﾙﾐ

 1
12101-B2032

KFVE..S201,211

厚さ=10,ｱﾙﾐ

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-B2040

KFVE..S201,211

ﾈｼﾞﾚ ﾅｼ

 1
Common parts
90041-79338
90250-06003
91671-80614
91671-80818
91671-80825
91671-80828

ILLUST NO. 1 OF 2(1112- )

Click highlighted areas on diagram

ｼﾘﾝﾀﾞｰ ﾌﾞﾛｯｸ

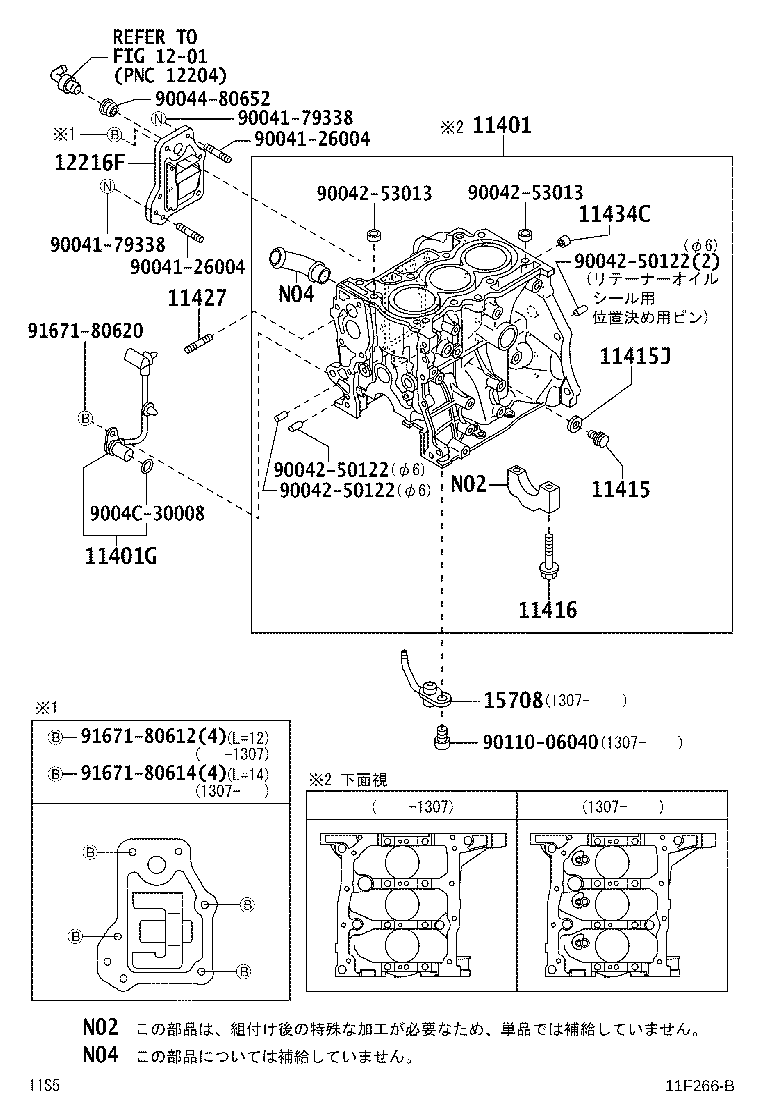

diagram 11401 11401G 11415 11415J 11416 11427 11434C 1201 12216F 15708 9004126004 9004126004 9004179338 9004179338 9004250122 9004250122 9004250122 9004253013 9004253013 9004480652 9004C30008 9011006040 9167180612 9167180614 9167180620
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-B2174

KFVE..S201,211

 1
11401-B2173

KFVE..S201,211

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90043-41088

KFVE..S201,211

 1
11415J - GASKET(FOR DRAIN COCK)
90044-30279

KFVE..S201,211

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90041-05368

KFVE..S201,211

 8
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90041-16498

KFVE..S201,211

M10X1.25

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90042-50207

KFVE..S201,211

長さ=15,外径=10

 2
12216F - PLATE, VENTILATION BAFFLE
12216-B2020

KFVE..S201,211

 1
Common parts
90041-26004
90041-79338
90042-50122
90042-53013
90044-80652
9004C-30008
90110-06040
91671-80612
91671-80614
91671-80620
Linked diagrams
1201
