S211U-THRF (2011)
Toyota Pixis Truck
(1112- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 82711-2A620 | ||||
(1112- )

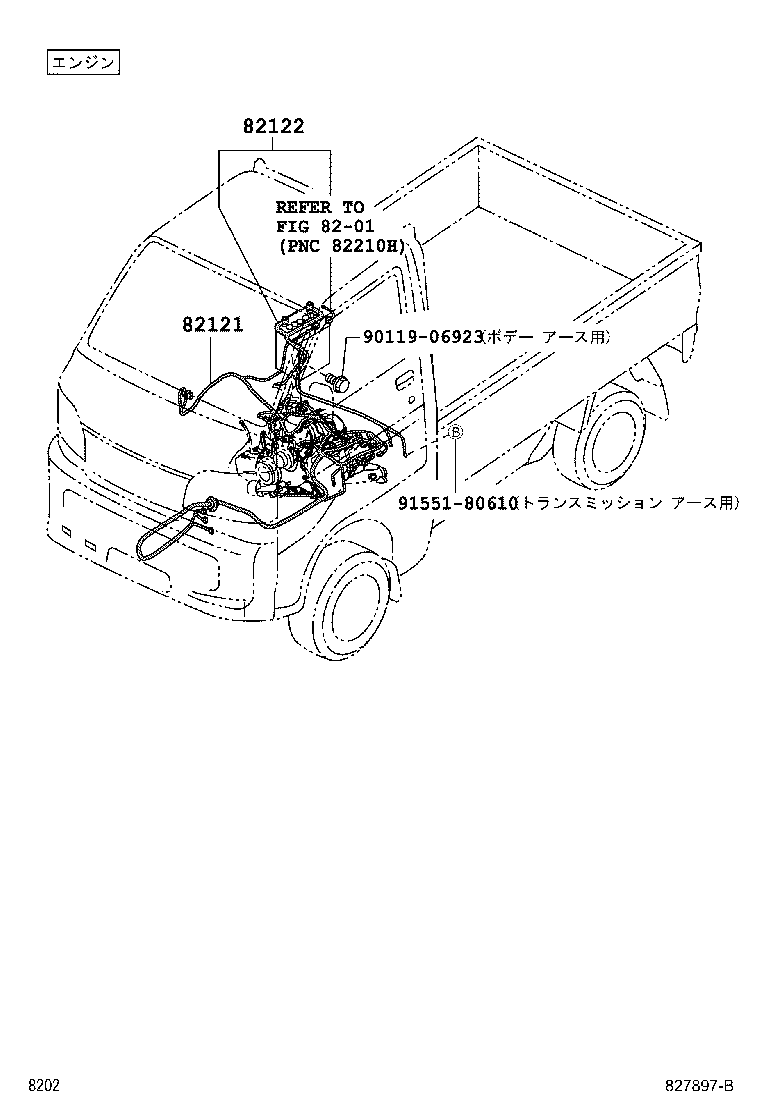

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-B5280 |
S201,211 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-B5152 |
S211..ATM |
1 | ||
| 82122-B5153 |
S211..ATM |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 8201 | ||||
(1112- )

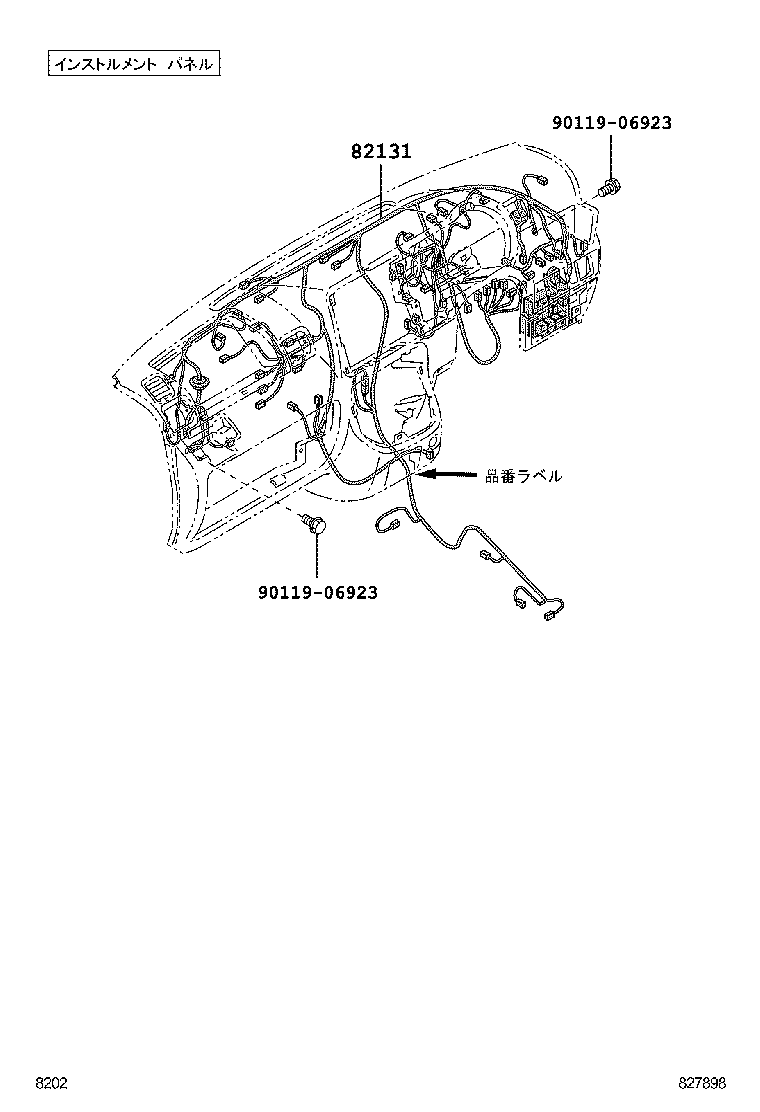

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),品番ﾗﾍﾞﾙ有 |
1 | ||
| 82131-B5440 |
S201,211..ATM..SPL 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5441 |
S201,211..ATM..SPL 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5451 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5451 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),品番ﾗﾍﾞﾙ有 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
(1112- )

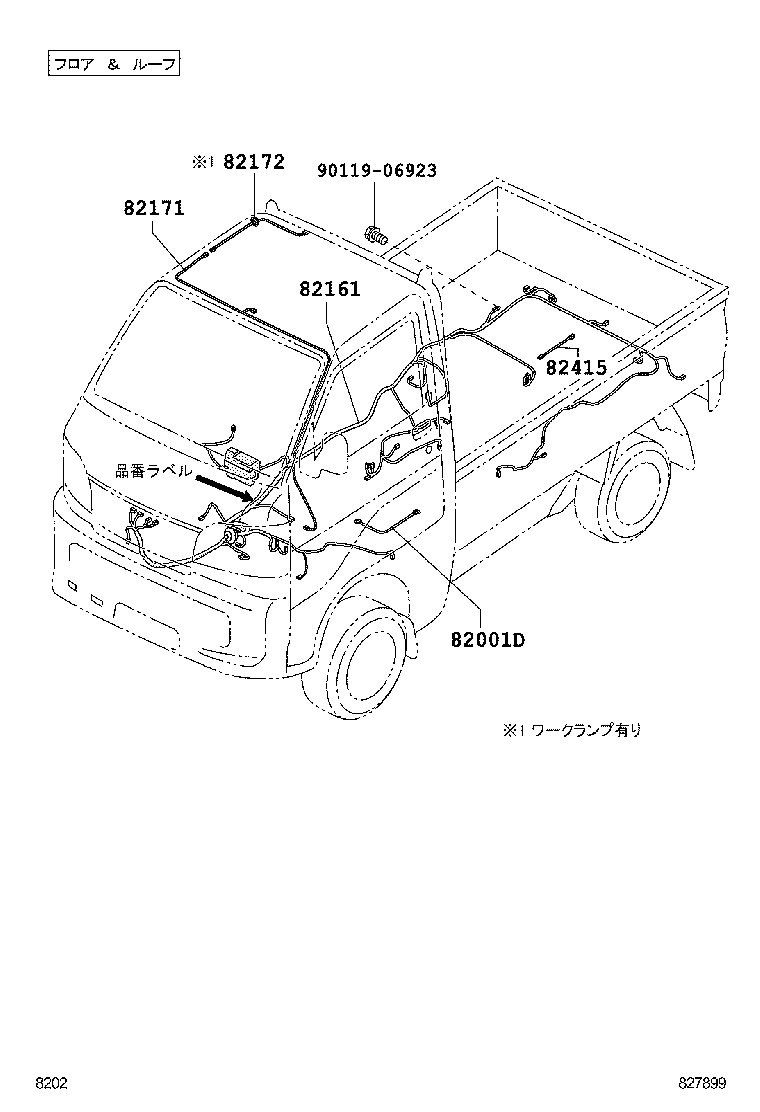

ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001D - CABLE, BOND, NO.3 | ||||
| 82046-B2010 |
S201,211 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B5D31 |
S211..ATM 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B5J40 |
S211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),品番ﾗﾍﾞﾙ有 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B5071 |
S201,211..SPL ﾜｰｸﾗﾝﾌﾟ付き(ﾋﾞｯｸ) |
1 | ||
| 82171-B5061 |
S201,211..SPL |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-B5010 |
S201,211..SPL ﾜｰｸﾗﾝﾌﾟ付き(ﾋﾞｯｸ) |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-B5020 |
S201,211 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
(1112- )
ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82666-B5010 | ||||
| 82711-97503 | ||||
| 82715-87511 | ||||
| 82715-97513 | ||||
| 82715-97556 | ||||
| 82715-B5090 | ||||
| 82715-B5120 | ||||
| 82715-B5130 | ||||
| 82715-B5220 | ||||
| 82715-B5230 | ||||
| 82715-B5240 | ||||
| 82715-B5250 | ||||
| 82715-B5300 | ||||
| 89439-B5030 | ||||
| 91551-80614 | ||||
| 91552-81012 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
(1112- )
ﾄﾞｱ
| Part # | Description | Qty | Price |
|---|
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-B5280 |
S201,211 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),品番ﾗﾍﾞﾙ有 |
1 | ||
| 82131-B5440 |
S201,211..ATM..SPL 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5441 |
S201,211..ATM..SPL 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5450 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5451 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82131-B5451 |
S201,211..ATM..SPL 電動ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ有り&SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),品番ﾗﾍﾞﾙ有 |
1 | ||
(1112- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10178 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11885 | ||||
