S211U-THRF (2011)
Toyota Pixis Truck
Production
Dec 2011
-
Jul 2014
Engine
KFVE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )ATM

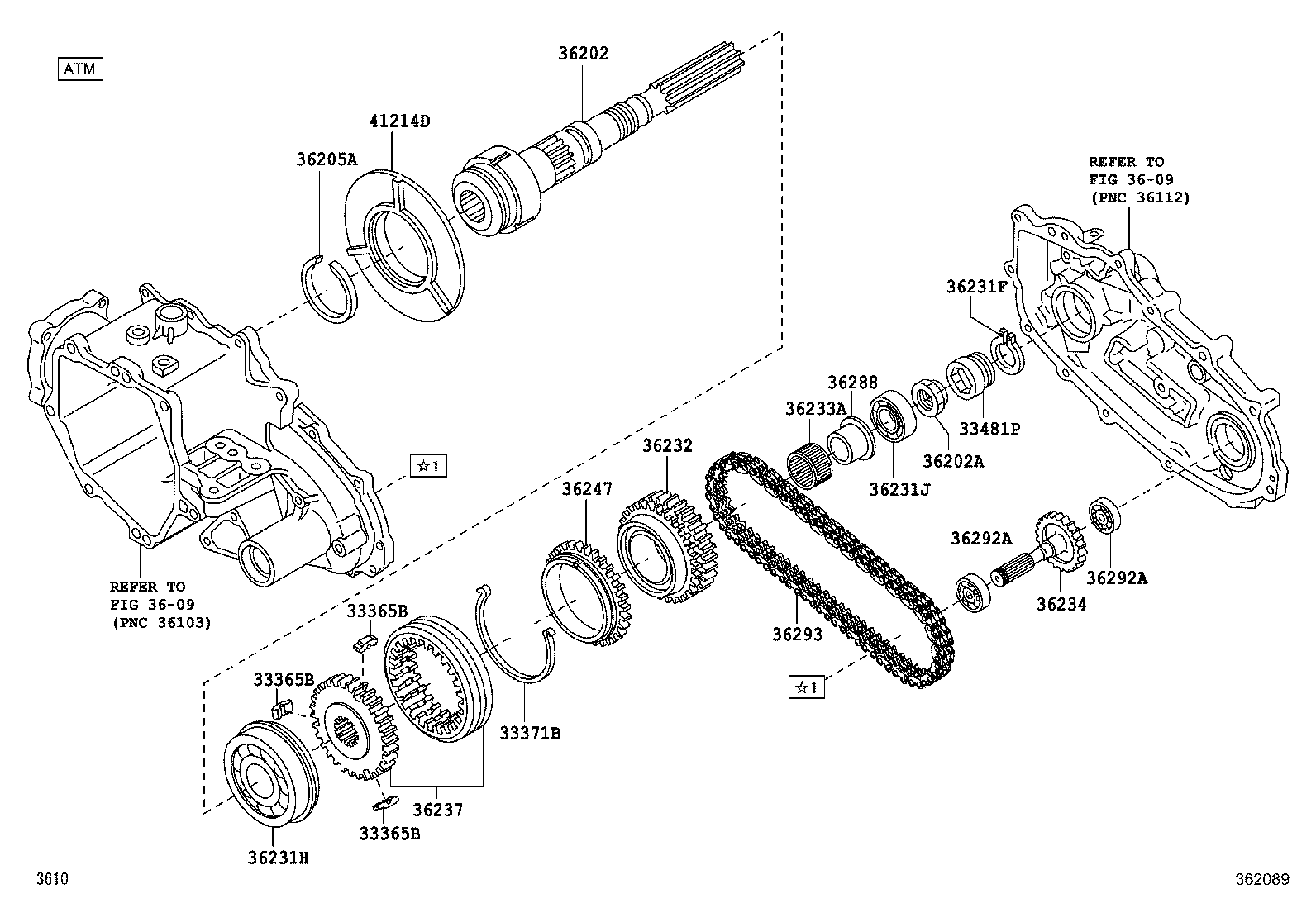

Click highlighted areas on diagram
ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33365B - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-87507 |
S211 |
3 | ||
| 33365B - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-87507 |
S211 |
3 | ||
| 33365B - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-87507 |
S211 |
3 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33392-87502 |
S211 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-87410 |
S211..ATM |
1 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36220-87505 |
S211..ATM |
1 | ||
| 36202A - NUT(FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 90041-79244 |
S211 |
1 | ||
| 36205A - RING, SHAFT SNAP | ||||
| 96152-00450 |
S211..ATM |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96150-02200 |
S211 |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 97153-06306 |
S211..ATM;S211..MTM..EXT |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90043-63127 |
S211 |
1 | ||
| 36232 - GEAR, TRANSFER FRONT DRIVE | ||||
| 36232-B5010 |
S211 |
1 | ||
| 36233A - BEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR) | ||||
| 90043-64140 |
S211 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-B5010 |
S211 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36203-B5020 |
S211..ATM;S211..MTM..EXT |
1 | ||
| 36247 - RING, TRANSFER SYNCHRONIZER | ||||
| 33368-87507 |
S211 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-B5020 |
S211..ATM;S211..MTM..EXT |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 97130-06005 |
S211 ﾌﾛﾝﾄ |
1 | ||
| 97100-06203 |
S211 ﾘﾔ |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 97130-06005 |
S211 ﾌﾛﾝﾄ |
1 | ||
| 97100-06203 |
S211 ﾘﾔ |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-87508 |
S211 |
1 | ||
| 41214D - SLINGER, CENTER DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-87502 |
S211..ATM |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
