Toyota Pixis truck S201U FRONT AXLE HUB

S201U-THNF (2011)

Toyota Pixis Truck

Production Dec 2011 - Jul 2014

Engine KFVE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

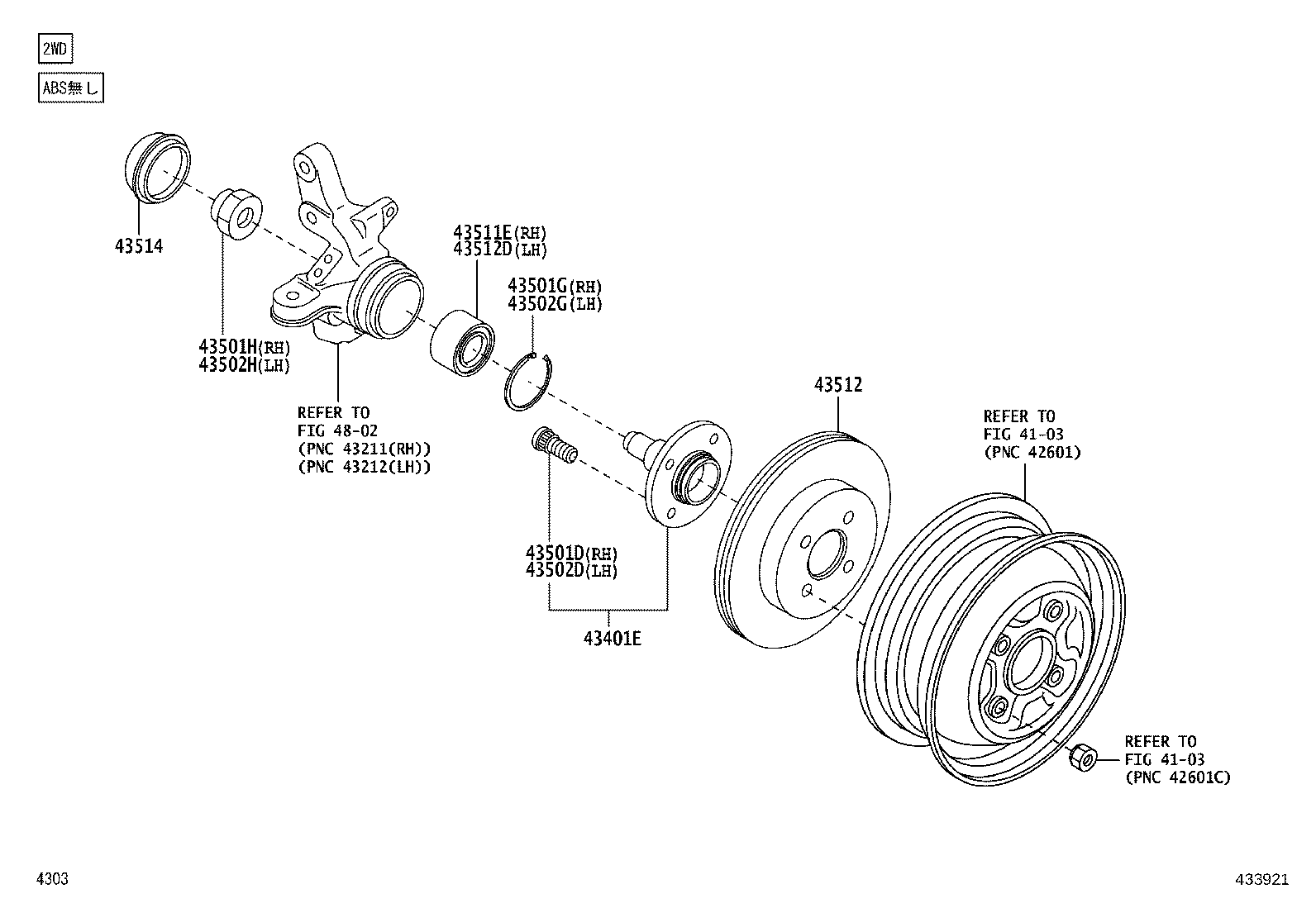

Click highlighted areas on diagram

2WD

Part #	Description	Period	Qty
43401E - SPINDLE SUB-ASSY, STEERING
43401-B5010	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式)	12/2011 - 12/2012	2
43401-97501	S201	12/2011 - 12/2999	2
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90049-12056	S201,211 M12,L=39	12/2011 - 07/2014	4
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90045-21163	S201,211	12/2011 - 12/2999	1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90041-78071	S201 M24	12/2011 - 07/2014	1
90041-79274	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),M20	12/2011 - 12/2012	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90049-12056	S201,211 M12,L=39	12/2011 - 07/2014	4
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90045-21163	S201,211	12/2011 - 12/2999	1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90041-79274	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),M20	12/2011 - 12/2012	1
90041-78071	S201 M24	12/2011 - 07/2014	1
43511E - BEARING (FOR FRONT AXLE HUB RH)
90043-63303	S201,211	12/2011 - 12/2999	1
43512 - DISC, FRONT
43512-97503	S201,211	12/2011 - 12/2999	2
43512D - BEARING (FOR FRONT AXLE HUB LH)
90043-63303	S201,211	12/2011 - 12/2999	1
43514 - CAP, FRONT HUB GREASE
43514-97501	S201	12/2011 - 12/2999	2
Linked diagrams
4103
4802

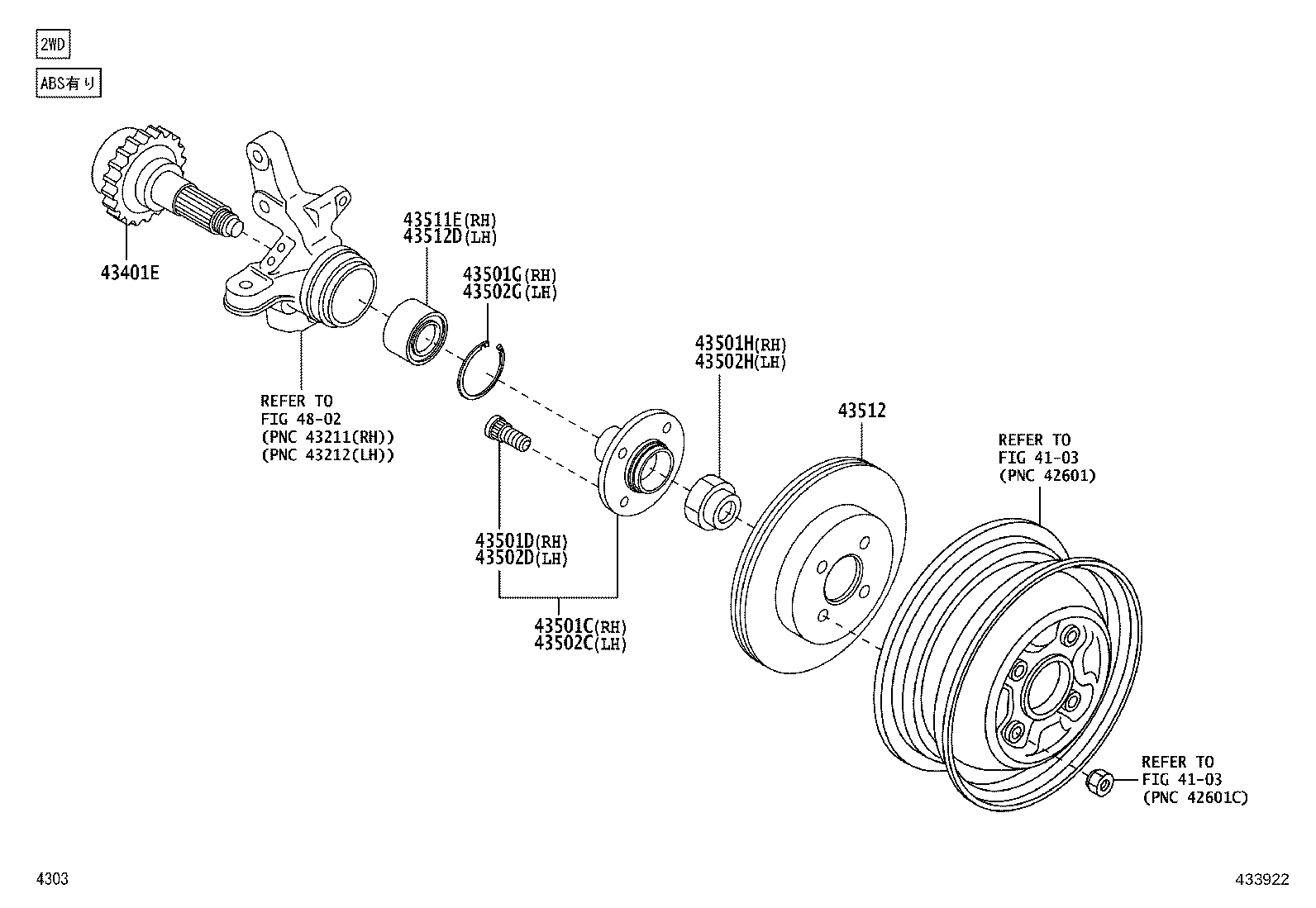

Click highlighted areas on diagram

2WD

Part #	Description	Period	Qty
43401E - SPINDLE SUB-ASSY, STEERING
43401-B5010	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式)	12/2011 - 12/2012	2
43401-97501	S201	12/2011 - 12/2999	2
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-B5020	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式)	12/2011 - 12/2012	1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90049-12056	S201,211 M12,L=39	12/2011 - 07/2014	4
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90045-21163	S201,211	12/2011 - 12/2999	1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90041-78071	S201 M24	12/2011 - 07/2014	1
90041-79274	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),M20	12/2011 - 12/2012	1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-B5020	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式)	12/2011 - 12/2012	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90049-12056	S201,211 M12,L=39	12/2011 - 07/2014	4
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90045-21163	S201,211	12/2011 - 12/2999	1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90041-79274	S201..ATM SRSｴｱﾊﾞｯｸﾞ(運転席+助手席､E式),M20	12/2011 - 12/2012	1
90041-78071	S201 M24	12/2011 - 07/2014	1
43511E - BEARING (FOR FRONT AXLE HUB RH)
90043-63303	S201,211	12/2011 - 12/2999	1
43512 - DISC, FRONT
43512-97503	S201,211	12/2011 - 12/2999	2
43512D - BEARING (FOR FRONT AXLE HUB LH)
90043-63303	S201,211	12/2011 - 12/2999	1
Linked diagrams
4103
4802
