L575A-GBVF2 (2012)
Toyota Pixis Space
Production
Apr 2012
-
Jun 2013
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1306)

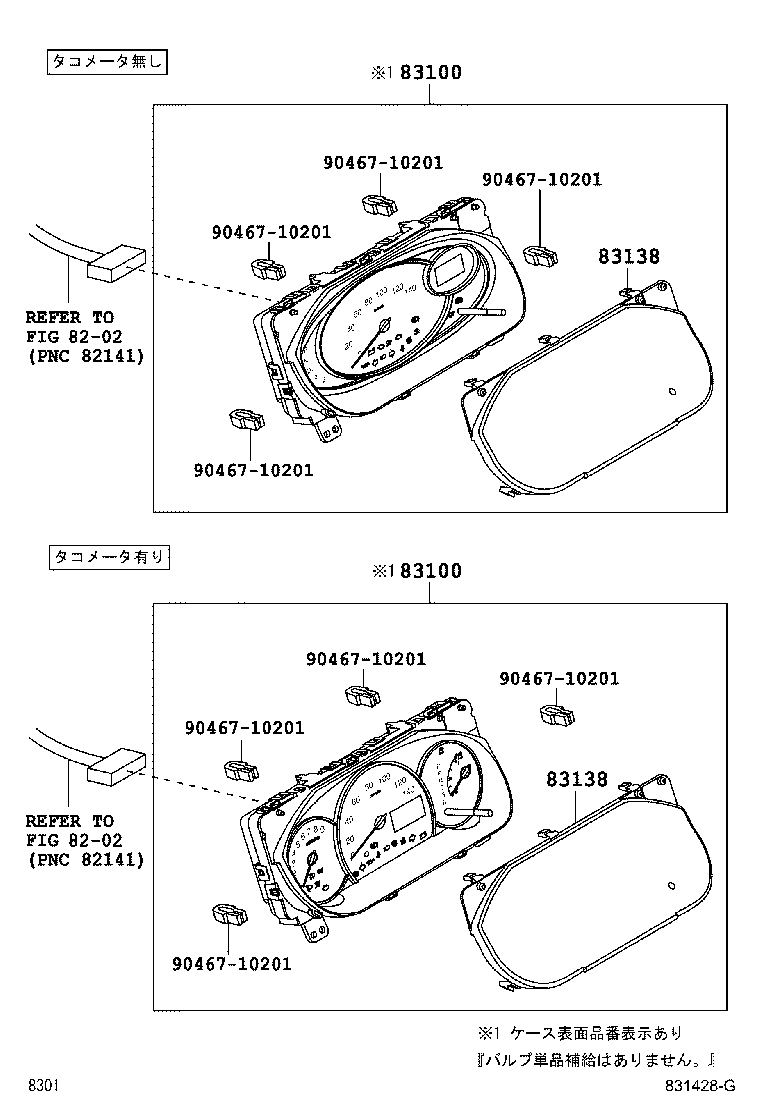

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-B2B34 |
L575,585..CTMG,CTMX DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2842 |
L575,585..L DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2B33 |
L575,585..CTMG DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2B14 |
L575,585..L,X DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-B2B34 |
L575,585..CTMG,CTMX DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2842 |
L575,585..L DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2B33 |
L575,585..CTMG DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83800-B2B14 |
L575,585..L,X DENSO,ﾀｺﾒｰﾀ 有り |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-B2030 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 83852-B2030 |
L575,585..PS2 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-B2030 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 83852-B2030 |
L575,585..PS2 |
1 | ||
| Common parts | ||||
| 90467-10201 | ||||
| Linked diagrams | ||||
| 8202 | ||||
