L575A-GBVF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

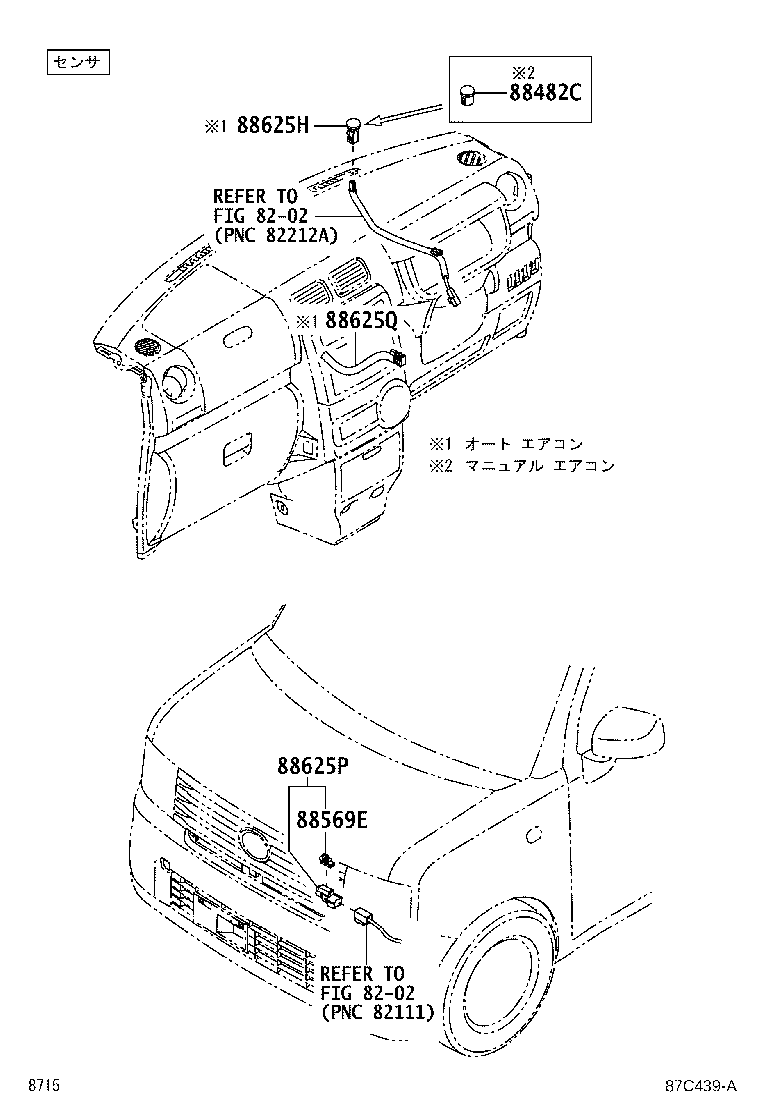

ILLUST NO. 3 OF 3(1109- )

Click highlighted areas on diagram

diagram 8202 8202 88482C 88569E 88625H 88625P 88625Q
Part # Description Qty Price
88482C - CAP, COOLER
88482-B4010

L575,585..L

 1
88569E - CLAMP (FOR COOLER THERMISTOR)
82711-1E360

L575,585

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-B2070

L575,585..CTMG,CTMX,X

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

L575,585

ｸﾗﾝﾌﾟ付き

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88790-B2140

L575,585..CTMG,CTMX,X

 1
Linked diagrams
8202

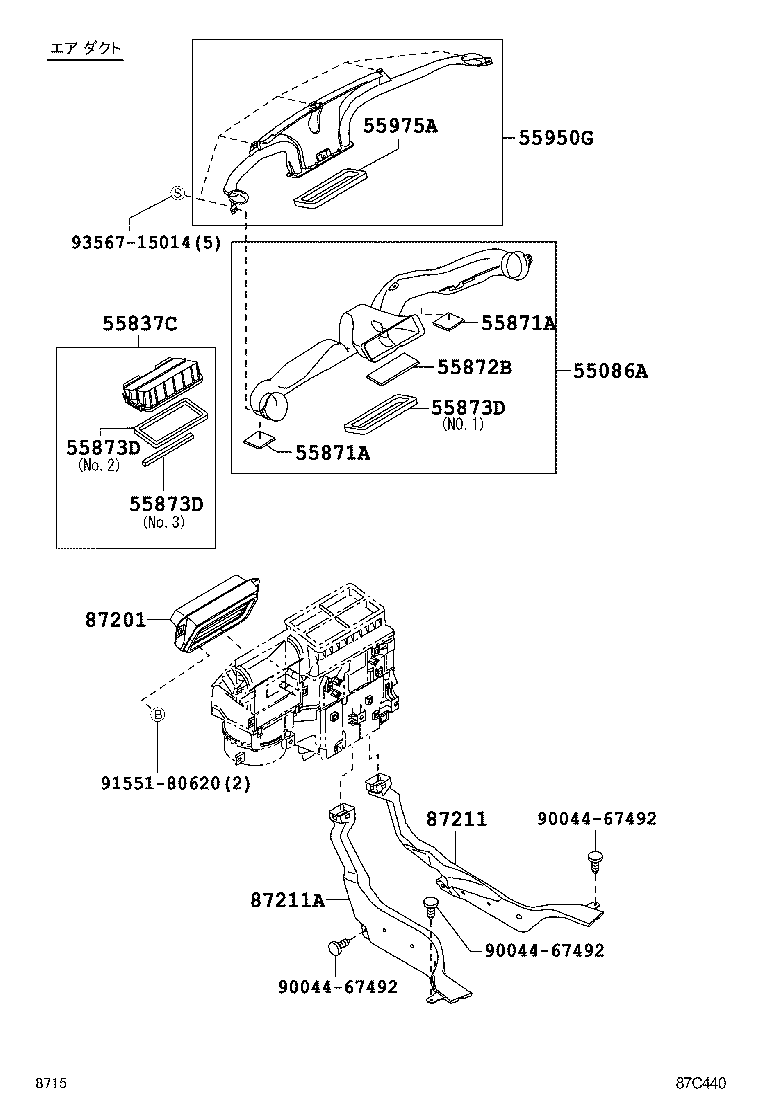

ILLUST NO. 2 OF 3(1109-1306)

Click highlighted areas on diagram

diagram 55086A 55837C 55871A 55871A 55872B 55873D 55873D 55873D 55950G 55975A 87201 87211 87211A 9004467492 9004467492 9004467492 9155180620 9356715014
Part # Description Qty Price
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-B2290

L575,585..CTMG,CTMX,L,X

 1
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-B2010

L575,585..CTMG,CTMX,L,X

 1
55871A - SEAL, AIR DUCT, NO.1
55871-B2060

L575,585

 2
55871A - SEAL, AIR DUCT, NO.1
55871-B2060

L575,585

 2
55872B - SEAL, AIR DUCT,NO.2
55872-B2100

L575,585..CTMG,CTMX,L,X

 1
55873D - SEAL, AIR DUCT, CENTER
55875-B2020

L575,585..CTMG,CTMX,L,X

NO.3

 1
55873-B2040

L575,585..CTMG,CTMX,L,X

NO.1

 1
55874-B2080

L575,585..CTMG,CTMX,L,X

NO.2

 1
55873D - SEAL, AIR DUCT, CENTER
55875-B2020

L575,585..CTMG,CTMX,L,X

NO.3

 1
55873-B2040

L575,585..CTMG,CTMX,L,X

NO.1

 1
55874-B2080

L575,585..CTMG,CTMX,L,X

NO.2

 1
55873D - SEAL, AIR DUCT, CENTER
55875-B2020

L575,585..CTMG,CTMX,L,X

NO.3

 1
55873-B2040

L575,585..CTMG,CTMX,L,X

NO.1

 1
55874-B2080

L575,585..CTMG,CTMX,L,X

NO.2

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-B2150

L575,585..CTMG,CTMX,L,X

 1
55975A - SEAL, DEFROSTER NOZZLE, NO.1
55975-B2040

L575,585..CTMG,CTMX,L,X

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-B2171

L575,585..CTMG,CTMX,L,X

 1
87211 - DUCT, AIR, NO.1
87220-B2160

L575..CTMG,CTMX,L,X

積雪地仕様

 1
87220-B2160

L575..CTMG,CTMX,L,X

寒冷地仕様

 1
87211A - DUCT, AIR, NO.2
87230-B2080

L575..CTMG,CTMX,L,X

寒冷地仕様

 1
87230-B2080

L575..CTMG,CTMX,L,X

積雪地仕様

 1
Common parts
90044-67492
91551-80620
93567-15014

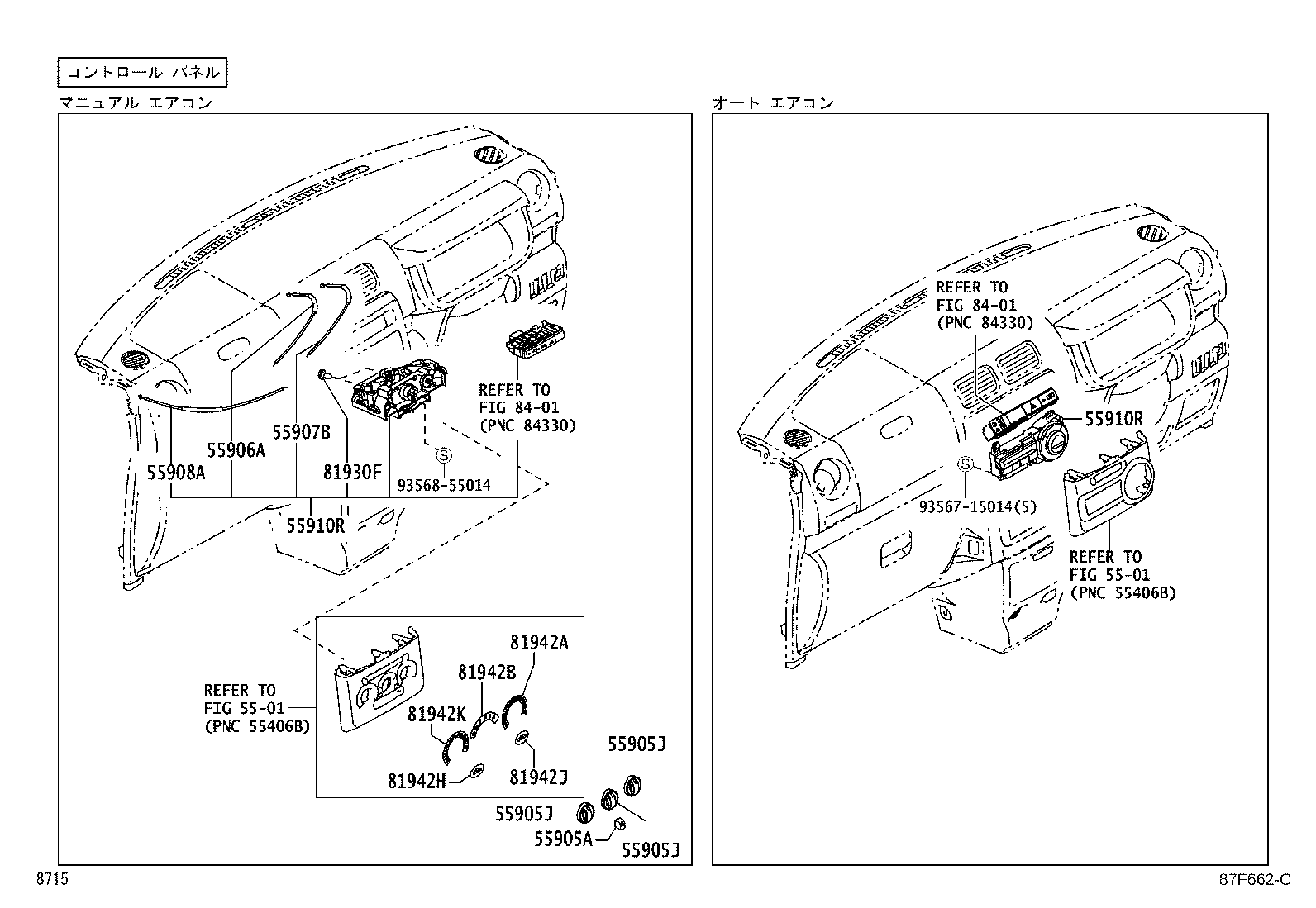

ILLUST NO. 1 OF 3(1109- )

Click highlighted areas on diagram

diagram 5501 5501 55905A 55905J 55905J 55905J 55906A 55907B 55908A 55910R 55910R 81930F 81942A 81942B 81942H 81942J 81942K 8401 8401 9356715014 9356855014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55925-B2010

L575,585..L

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-B2010

L575,585..L

 3
55905J - KNOB SUB-ASSY, CONTROL
55905-B2010

L575,585..L

 3
55905J - KNOB SUB-ASSY, CONTROL
55905-B2010

L575,585..L

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-B2160

L575,585..L

吹き出し口切替用

 1
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-B2160

L575,585..L

温度調整用

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-B2160

L575,585..L

内外気切替用

 1
55910R - CONTROL ASSY, HEATER
55910-B2390

L575,585..L

 1
55910-B2350B0

L575,585..CTMG,CTMRS,CTMX,X

129M ZAICHAKU COLOR,TRIM1#

 1
55910R - CONTROL ASSY, HEATER
55910-B2390

L575,585..L

 1
55910-B2350B0

L575,585..CTMG,CTMRS,CTMX,X

129M ZAICHAKU COLOR,TRIM1#

 1
81930F - BULB, HEATER CONTROL INDICATOR LAMP
81930-B2010

L575,585..L

14V 1.8W,ｷｬｯﾌﾟ:ｵﾚﾝｼﾞ

 2
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-B2180

L575,585..L

TEMP

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-B2410

L575,585..L

ﾌﾞﾛﾜ

 1
81942H - SHEET, HEATER CONTROL NAME, NO.3
81942-B2190

L575,585..L

 1
81942J - SHEET, HEATER CONTROL NAME, NO.4
81942-B2200

L575,585..L

 1
81942K - SHEET, HEATER CONTROL NAME, NO.5
81942-B2420

L575,585..L

ﾓｰﾄﾞ

 1
Common parts
93567-15014
93568-55014
Linked diagrams
5501
8401
