Toyota Pixis space L575A HEADLAMP

L575A-GBVF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

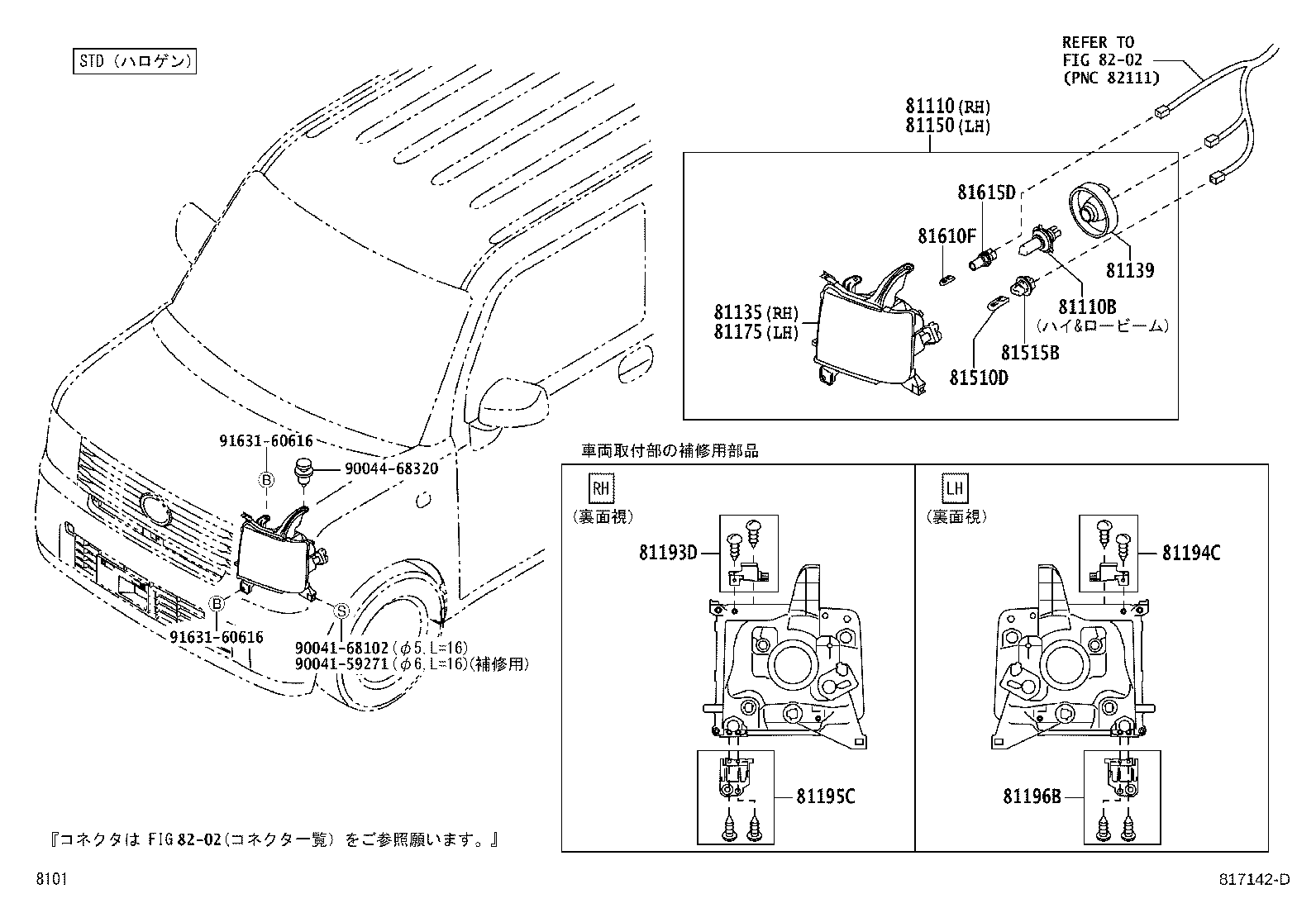

(1109- )L,X

Click highlighted areas on diagram

STD

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-B2540	L575,585..CTMG,CTMRS,CTMX	09/2011 - 07/2012	1
81110-B2520	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088	L575,585..L,X 12V 60/55W	09/2011 - 06/2013	2
90049-51155	L575,585..CTMG,CTMRS,CTMX 12V 60W HB3,ﾊｲﾋﾞｰﾑ	09/2011 - 06/2013	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-B2440	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81130-B2450	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81139 - COVER, HEADLAMP SOCKET
81139-B2010	L575,585..L,X	09/2011 - 04/2012	2
81150 - HEADLAMP ASSY, LH
81150-B2530	L575,585..CTMG,CTMRS,CTMX	09/2011 - 07/2012	1
81150-B2140	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-B2450	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81170-B2440	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81193-B2030	L575,585..L,X	09/2011 - 06/2013	1
81193-B2040	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194-B2030	L575,585..L,X	09/2011 - 04/2012	1
81194-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81195C - RETAINER, RH HEADLAMP PROTECTOR, LOWER LH
81195-B2030	L575,585..L,X	09/2011 - 04/2012	1
81195-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81196B - RETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81196-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81196-B2030	L575,585..L,X	09/2011 - 04/2012	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51179	L575,585..CTMG,CTMX,L,X 12V 21W	09/2011 - 04/2012	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013	L575,585..CTMG,CTMX,L,X 12V 5W T10	09/2011 - 04/2012	2
81615D - SOCKET, CLEARANCE LAMP
9004C-82001	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
Common parts
90041-59271
90041-68102
90044-68320
91631-60616
Linked diagrams
8202

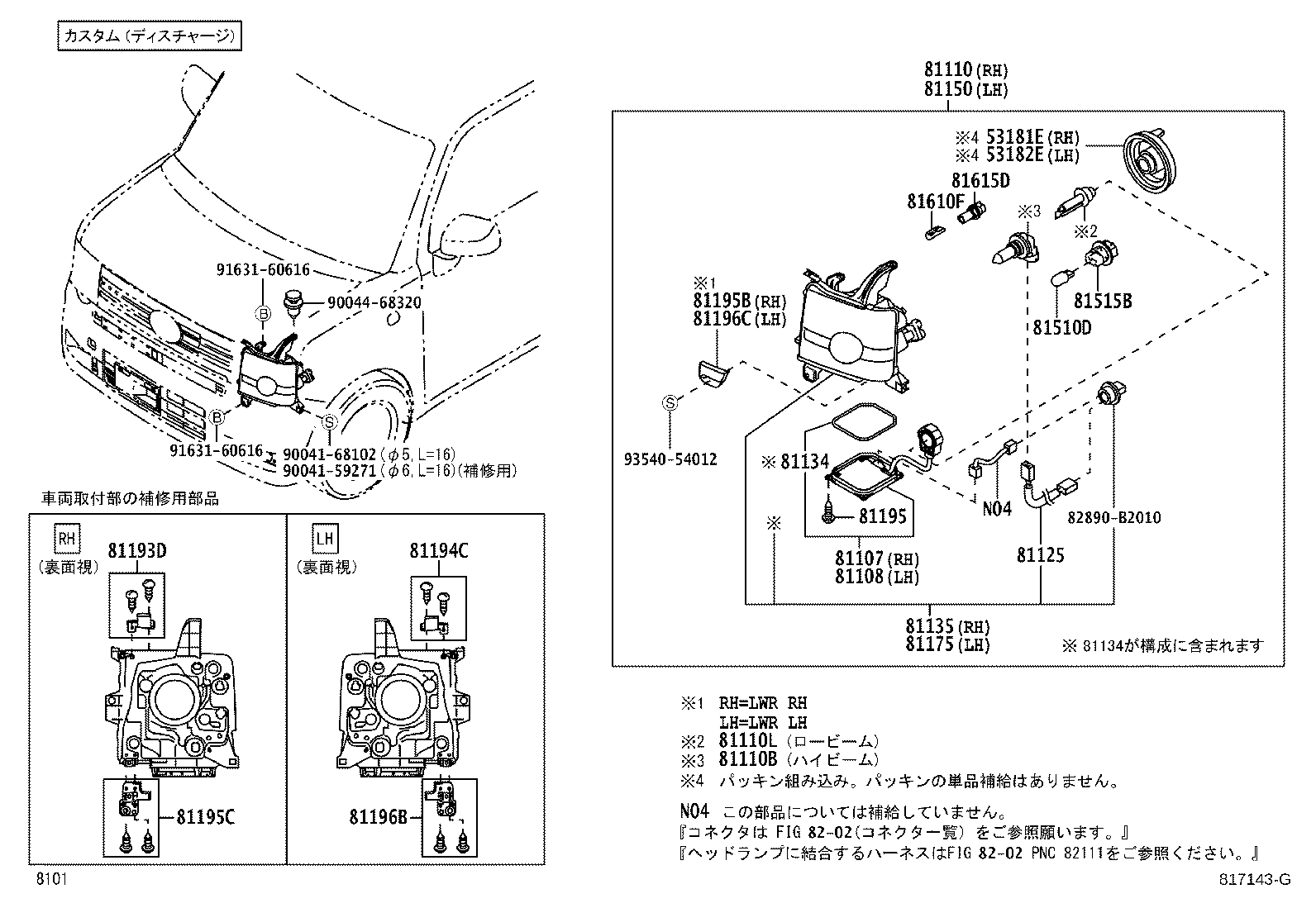

(1109- )CTMG,CTMRS,CTMX

Click highlighted areas on diagram

ｶｽﾀﾑ

Part #	Description	Period	Qty
53181E - COVER, HEADLAMP, RH
53181-97201	L575,585..CTMG,CTMRS,CTMX O−ﾘﾝｸﾞ付き	09/2011 - 06/2013	1
53182E - COVER, HEADLAMP, LH
53181-97201	L575,585..CTMG,CTMRS,CTMX O−ﾘﾝｸﾞ付き	09/2011 - 06/2013	1
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-B5020	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-B5020	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81110 - HEADLAMP ASSY, RH
81110-B2540	L575,585..CTMG,CTMRS,CTMX	09/2011 - 07/2012	1
81110-B2520	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088	L575,585..L,X 12V 60/55W	09/2011 - 06/2013	2
90049-51155	L575,585..CTMG,CTMRS,CTMX 12V 60W HB3,ﾊｲﾋﾞｰﾑ	09/2011 - 06/2013	2
81110L - BULB, DISCHARGE HEADLAMP
90049-51169	L575,585..CTMG,CTMRS,CTMX 12V 35W D4R,ﾛｰﾋﾞｰﾑ	09/2011 - 06/2013	2
81125 - CORD, HEADLAMP
81125-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	2
81134 - GASKET, HEADLAMP
9004C-43002	L575,585..CTMG,CTMX	09/2011 - 04/2012	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-B2440	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81130-B2450	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81150 - HEADLAMP ASSY, LH
81150-B2530	L575,585..CTMG,CTMRS,CTMX	09/2011 - 07/2012	1
81150-B2140	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-B2450	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81170-B2440	L575,585..L,X ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	09/2011 - 06/2013	1
81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81193-B2030	L575,585..L,X	09/2011 - 06/2013	1
81193-B2040	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	1
81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194-B2030	L575,585..L,X	09/2011 - 04/2012	1
81194-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81195 - SCREW, HEADLAMP
9004C-14008	L575,585..CTMG,CTMX	09/2011 - 04/2012	8
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-B2010	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81195C - RETAINER, RH HEADLAMP PROTECTOR, LOWER LH
81195-B2030	L575,585..L,X	09/2011 - 04/2012	1
81195-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81196B - RETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81196-B2040	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81196-B2030	L575,585..L,X	09/2011 - 04/2012	1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-B2010	L575,585..CTMG,CTMX	09/2011 - 04/2012	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51179	L575,585..CTMG,CTMX,L,X 12V 21W	09/2011 - 04/2012	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013	L575,585..CTMG,CTMX,L,X 12V 5W T10	09/2011 - 04/2012	2
81615D - SOCKET, CLEARANCE LAMP
9004C-82001	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
Common parts
82890-B2010
90041-59271
90041-68102
90044-68320
91631-60616
93540-54012
Linked diagrams
8202
