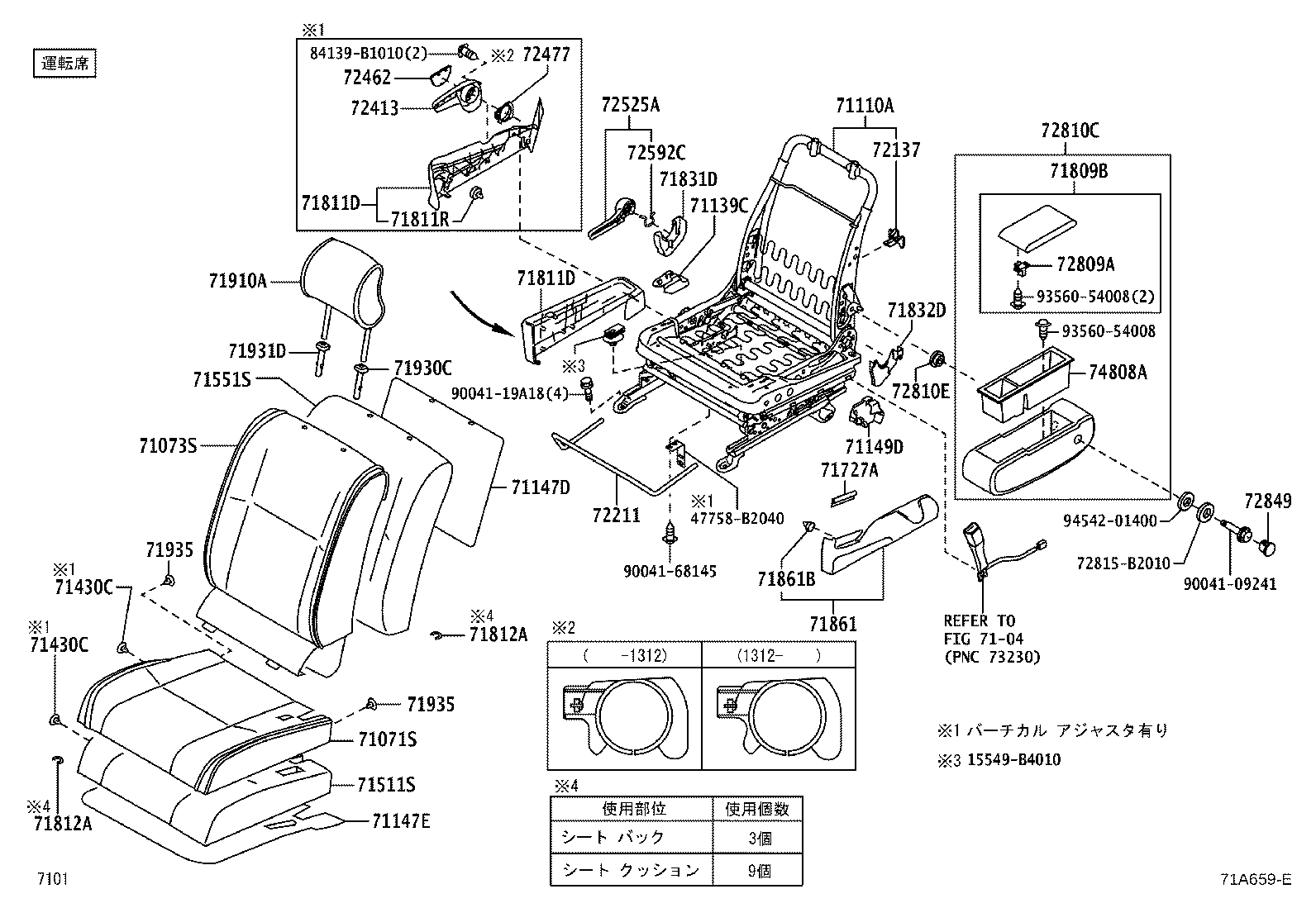

L575A-GBVF (2011)
Toyota Pixis Space
(1109- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B2B50C1 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 BLACK,TRIM1# |
1 | ||
| 71071-B2A31B4 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B2Z50C2 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 BLACK,TRIM1# |
1 | ||
| 71073-B2Y11B5 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B2D00 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B2030B4 |
L575,585 DK.GRAY,TRIM1#,右側ｼｰﾄ |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2030 |
L575,585 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B2020 |
L575,585 |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71149-B2010B4 |
L575,585 DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B2610 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B2750 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71727A - TRIM, SEAT CORNER, NO.1 | ||||
| 71727-B2010 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B2200B0 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1# |
1 | ||
| 71809-B2190B1 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B2330B0 |
L575,585..CTMG,CTMX DK.GRAY,TRIM1# |
1 | ||
| 71811-B2330B2 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B2330B0 |
L575,585..CTMG,CTMX DK.GRAY,TRIM1# |
1 | ||
| 71811-B2330B2 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
L575,585 |
24 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
L575,585 |
24 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2010B1 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1#,右側ｼｰﾄ−ｱｳﾀ |
1 | ||
| 71831-B2010B5 |
L575,585..L WARM GRAY,TRIM1#,右側ｼｰﾄ−ｱｳﾀ |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2040B5 |
L575,585..L WARM GRAY,TRIM1#,右側ｼｰﾄ−ｲﾝﾅ |
1 | ||
| 71832-B2040B1 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1#,右側ｼｰﾄ−ｲﾝﾅ |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B2010B0 |
L575,585..CTMG,CTMX DK.GRAY,TRIM1# |
1 | ||
| 71861-B2010B3 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90044-67512 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2840B0 |
L575,585..L,X WINE RED,TRIM1# |
2 | ||
| 71910-B2880C0 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 SILVER,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-97202C0 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
2 | ||
| 71930-97202E4 |
L575,585..L BEIGE,TRIM1# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-97202C0 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
2 | ||
| 71931-97202E4 |
L575,585..L BEIGE,TRIM1# |
2 | ||
| 71935 - CLIP | ||||
| 90044-68028B0 |
L575,585 DK.GRAY |
4 | ||
| 71935 - CLIP | ||||
| 90044-68028B0 |
L575,585 DK.GRAY |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2010 |
L575,585 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2010B1 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1# |
1 | ||
| 72525-B2010B6 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
L575,585 |
2 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-B2010B2 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 72809-B2010B0 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B2431B2 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 72810-B2460C1 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
1 | ||
| 72810E - BUSH, FRONT SEAT ARMREST, NO.1 | ||||
| 90043-86127 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-B2020B0 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1# |
1 | ||
| 72848-B2020B3 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-B2030B0 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1# |
1 | ||
| 74808-B2030B2 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 15549-B4010 | ||||
| 47758-B2040 | ||||
| 72815-B2010 | ||||
| 84139-B1010 | ||||
| 90041-09241 | ||||
| 90041-19A18 | ||||
| 90041-68145 | ||||
| 93560-54008 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1109- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B2841B4 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 71072-B2A00C1 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B2P11B6 |
L575,585..L,X WARM GRAY,TRIM1# |
1 | ||
| 71074-B2P80C2 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B2630 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-B2030B4 |
L575,585 DK.GRAY,TRIM1#,左側ｼｰﾄ |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2030 |
L575,585 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B2020 |
L575,585 |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71149-B2090B4 |
L575,585 DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B2410 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B2730 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B2010 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71727A - TRIM, SEAT CORNER, NO.1 | ||||
| 71727-B2010 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2050C0 |
L575,585 - |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-B2020B5 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71759-B2020B6 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
L575,585 |
24 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
L575,585 |
24 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B2230B2 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71812-B2230B0 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2020B1 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1#,左側 ｼｰﾄ−ｲﾝﾅ |
1 | ||
| 71831-B2020B5 |
L575,585..L WARM GRAY,TRIM1#,左側 ｼｰﾄ−ｲﾝﾅ |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
L575,585..CTMG,CTMRS,CTMX DK.GRAY,TRIM1#,左側 ｼｰﾄ−ｱｳﾀ |
1 | ||
| 71832-B2010B5 |
L575,585..L WARM GRAY,TRIM1#,左側 ｼｰﾄ−ｱｳﾀ |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B2010B0 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1# |
1 | ||
| 71862-B2010B2 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90044-67512 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2840B0 |
L575,585..L,X WINE RED,TRIM1# |
2 | ||
| 71910-B2880C0 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 SILVER,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-97202C0 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
2 | ||
| 71930-97202E4 |
L575,585..L BEIGE,TRIM1# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-97202C0 |
L575,585..CTMG,CTMRS,CTMX BLACK,TRIM1# |
2 | ||
| 71931-97202E4 |
L575,585..L BEIGE,TRIM1# |
2 | ||
| 71935 - CLIP | ||||
| 90044-68028B0 |
L575,585 DK.GRAY |
4 | ||
| 71935 - CLIP | ||||
| 90044-68028B0 |
L575,585 DK.GRAY |
4 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2010 |
L575,585 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2010B5 |
L575,585..L WARM GRAY,TRIM1# |
1 | ||
| 72526-B2010B1 |
L575,585..(CTMG,CTMRS,CTMX)..PS1 DK.GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
L575,585 |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2041 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| Common parts | ||||
| 90041-19A18 | ||||
| 90041-64025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
