L575A-GBSZ (2013)

Toyota Pixis Space

Production Jun 2013 - Jan 2017
Engine KFDET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )CTMG,CTMX,L,X

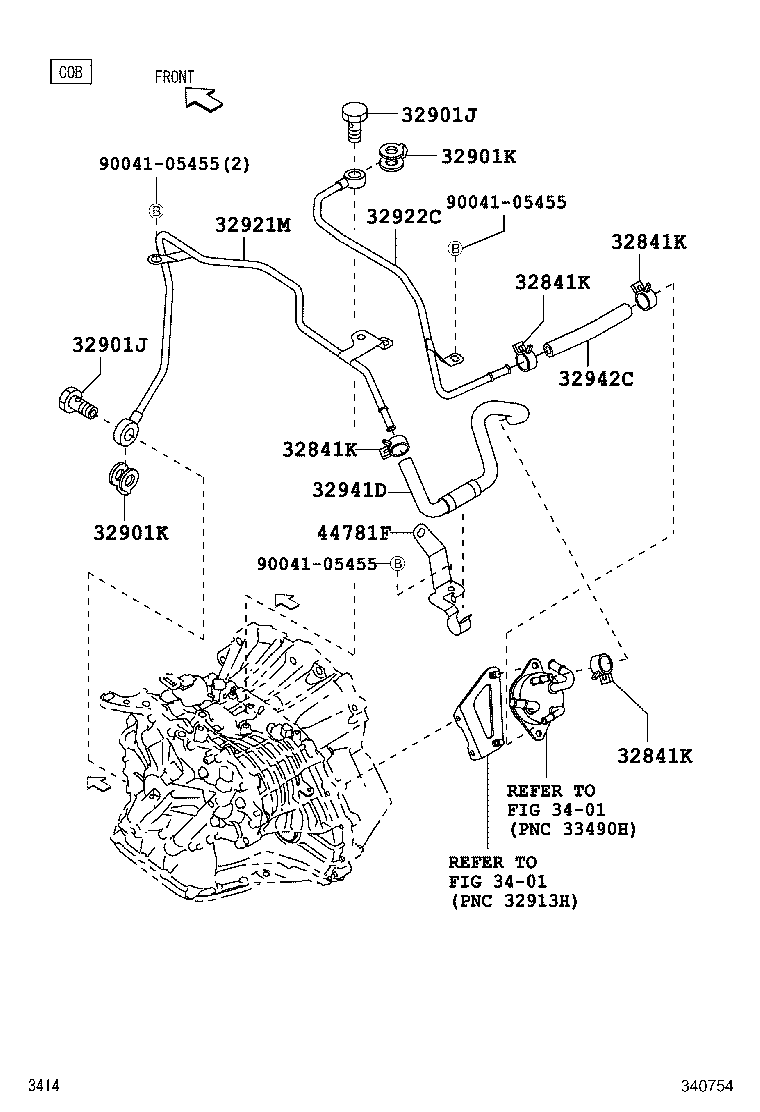

Click highlighted areas on diagram

diagram 32841K 32841K 32841K 32841K 32901J 32901J 32901K 32901K 32921M 32922C 32941D 32942C 3401 3401 44781F 9004105455 9004105455 9004105455
Part # Description Qty Price
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590

L575,585..CTMG,CTMX,L,X

 4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590

L575,585..CTMG,CTMX,L,X

 4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590

L575,585..CTMG,CTMX,L,X

 4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590

L575,585..CTMG,CTMX,L,X

 4
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01479

L575,585..CTMRS

 2
90044-01479

L575,585..CTMG,CTMX,L,X

 2
90044-01081

L575,585

 2
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01479

L575,585..CTMRS

 2
90044-01479

L575,585..CTMG,CTMX,L,X

 2
90044-01081

L575,585

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

L575,585

 2
90044-30329

L575,585

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

L575,585

 2
90044-30329

L575,585

 2
32921M - TUBE, OIL COOLER INLET, NO.1
32904-B2040

L575,585..CTMRS

 1
32904-B2040

L575,585

 1
32904-B2070

L575,585..CTMG,CTMX,L,X

 1
32922C - TUBE, OIL COOLER OUTLET, NO.1
32905-B2070

L575,585

 1
32905-B2080

L575,585..CTMG,CTMX,L,X

 1
32905-B2070

L575,585..CTMRS

 1
32941D - HOSE, OIL COOLER INLET
32941-B2120

L575,585..CTMG,CTMX,L,X

 1
32942C - HOSE, OIL COOLER OUTLET, NO.1
32942-B2130

L575,585..CTMG,CTMX,L,X

 1
44781F - BRACKET, HOSE CLAMP
44781-B2020

L575,585..CTMG,CTMX,L,X

 1
Common parts
90041-05455
Linked diagrams
3401
