L575A-GBSZ (2011)

Toyota Pixis Space

Production Sep 2011 - May 2012
Engine KFDET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

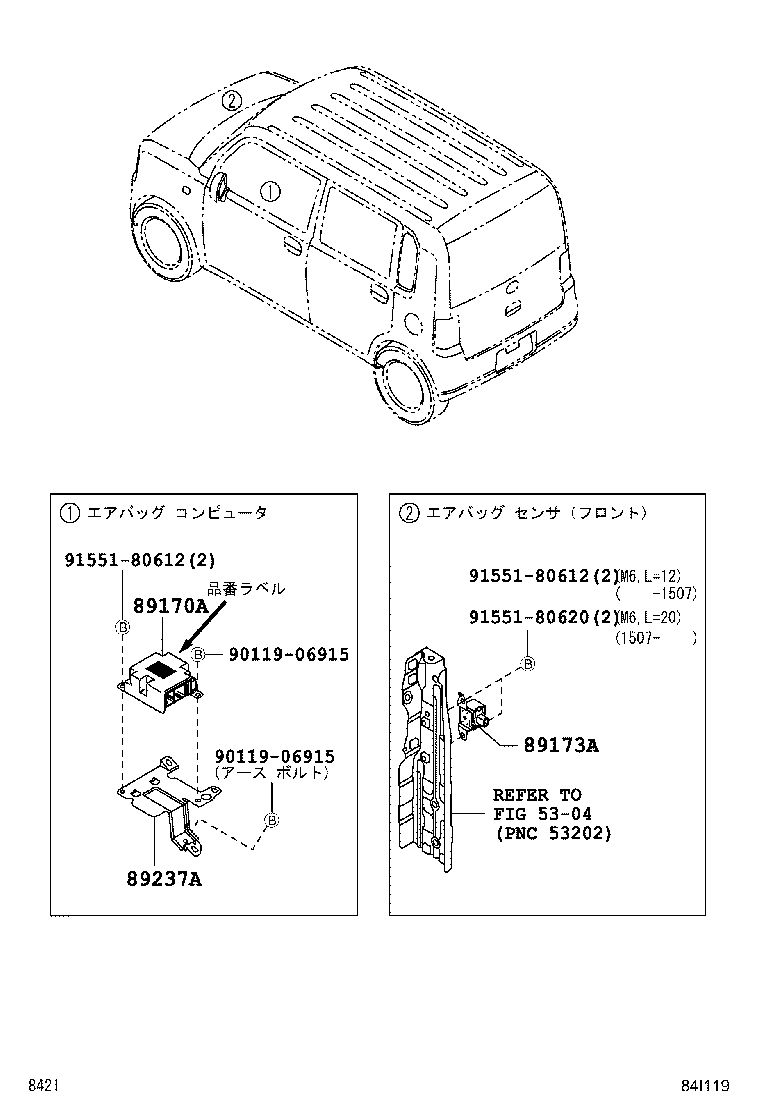

Click highlighted areas on diagram

diagram 5304 89170A 89173A 89237A 9011906915 9011906915 9155180612 9155180612 9155180620
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-B2881

L575,585..PS1

品番ﾗﾍﾞﾙ有り

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-B2120

L575,585..CTMRS

 1
89173-B2120

L575,585..CTMG,CTMX,L,X

 1
89237A - BRACKET, COMPUTER UNIT
89237-B2060

L575,585..CTMG,CTMX,L,X

 1
89237-B2060

L575,585..CTMRS

 1
Common parts
90119-06915
91551-80612
91551-80620
Linked diagrams
5304
