L575A-GBSZ (2011)
Toyota Pixis Space
Production
Sep 2011
-
May 2012
Engine
KFDET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

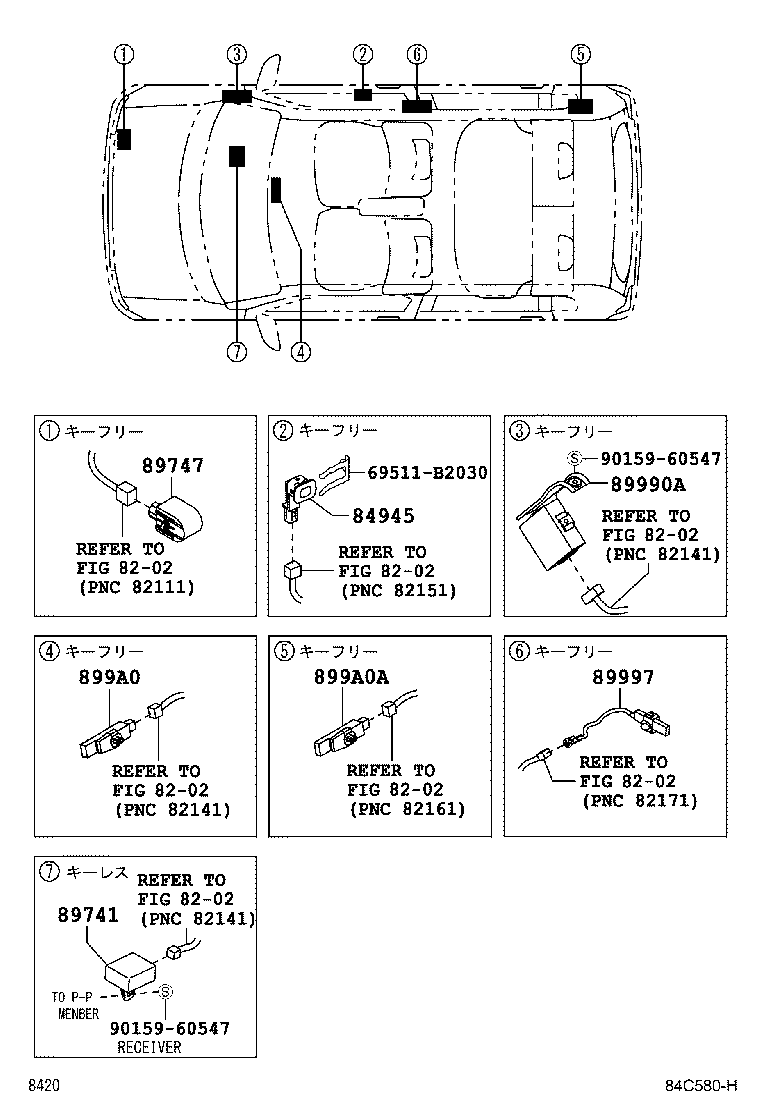

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84905-B2031 |
L575,585..CTMG,CTMRS,CTMX,X |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-B2210 |
L575,585..L |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
L575,585..CTMRS |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-B2350 |
L575,585..CTMRS |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-B2150 |
L575,585..CTMRS |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 89997-B2130 |
L575,585..CTMG,CTMRS,CTMX,X |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 89997-B2140 |
L575,585..CTMG,CTMRS,CTMX,X |
1 | ||
| Common parts | ||||
| 69511-B2030 | ||||
| 90159-60547 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(1109-1306)

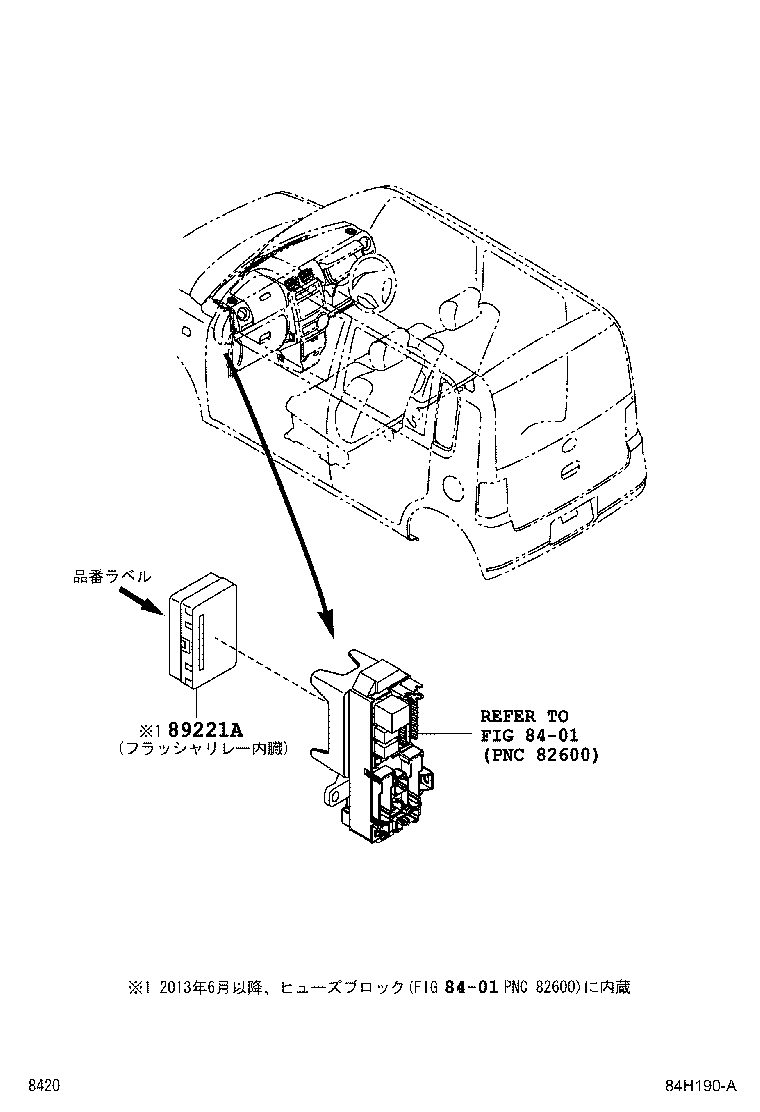

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89221A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-B2051 |
L575,585 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
