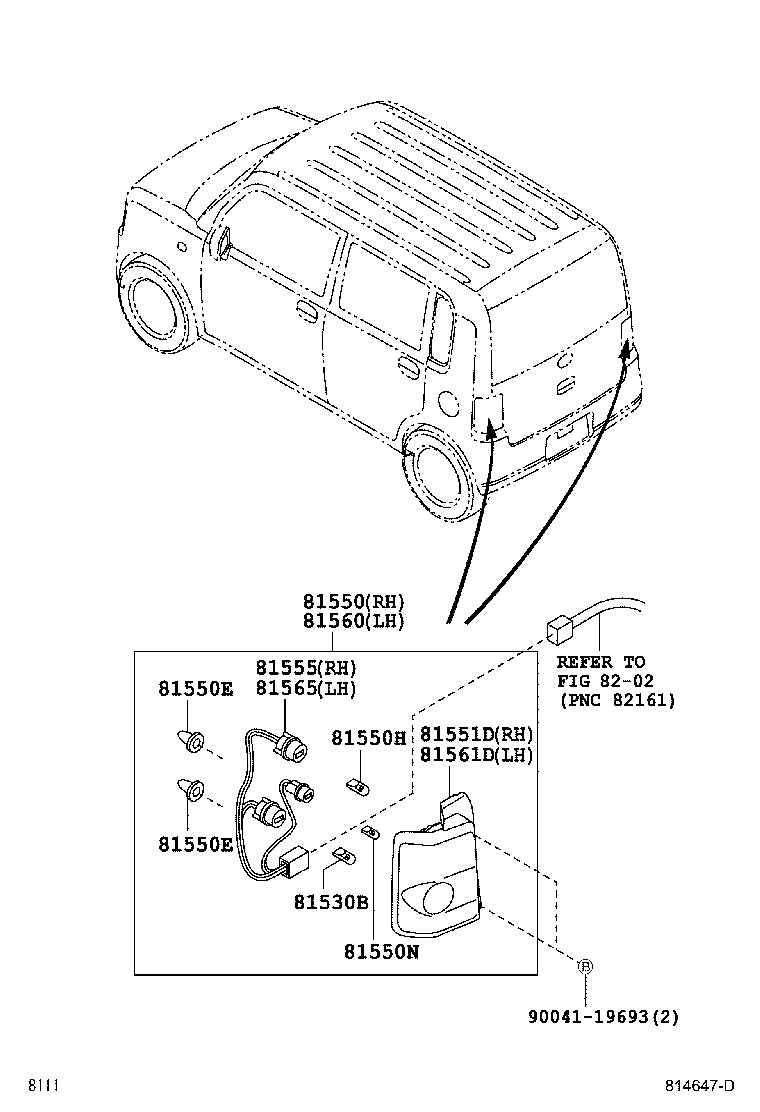

Toyota Pixis space L575A REAR COMBINATION LAMP

Part #	Description	Period	Qty
81530B - BULB, REAR TURN SIGNAL LAMP
90049-51148	L575,585..CTMG,CTMX,L,X 12V 21W	09/2011 - 04/2012	2
90049-51148	L575,585..CTMRS 12V 21W	09/2011 - 05/2012	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-B2310	L575,585..(CTMG,CTMRS,CTMX)..PS1 ｸﾘｱﾚﾝｽﾞ	09/2011 - 05/2012	1
81550-B2290	L575,585..L,X ﾚｯﾄﾞ&ｸﾘｱﾚﾝｽﾞ	09/2011 - 04/2012	1
81550E - CLIP(FOR REAR COMBINATION LAMP)
9004C-46011	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	4
9004C-46011	L575,585..CTMRS	09/2011 - 05/2012	4
81550E - CLIP(FOR REAR COMBINATION LAMP)
9004C-46011	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	4
9004C-46011	L575,585..CTMRS	09/2011 - 05/2012	4
81550H - BULB, TAIL & STOP LAMP
99132-21210	L575,585..CTMRS 12V 21.5W	09/2011 - 05/2012	2
99132-21210	L575,585..CTMG,CTMX,L,X 12V 21.5W	09/2011 - 04/2012	2
81550N - BULB, BACK UP LAMP
90981-11059	L575,585..CTMG,CTMX,L,X 12V 16W	09/2011 - 04/2012	2
90981-11059	L575,585..CTMRS 12V 16W	09/2011 - 05/2012	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-B2150	L575,585..L,X ﾚｯﾄﾞ&ｸﾘｱﾚﾝｽﾞ	09/2011 - 04/2012	1
81551-B2160	L575,585..(CTMG,CTMRS,CTMX)..PS1 ｸﾘｱﾚﾝｽﾞ	09/2011 - 05/2012	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-B2130	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
81555-B2130	L575,585..CTMRS	09/2011 - 05/2012	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-B2310	L575,585..(CTMG,CTMRS,CTMX)..PS1 ｸﾘｱﾚﾝｽﾞ	09/2011 - 05/2012	1
81560-B2290	L575,585..L,X ﾚｯﾄﾞ&ｸﾘｱﾚﾝｽﾞ	09/2011 - 04/2012	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-B2150	L575,585..L,X ﾚｯﾄﾞ&ｸﾘｱﾚﾝｽﾞ	09/2011 - 04/2012	1
81561-B2160	L575,585..(CTMG,CTMRS,CTMX)..PS1 ｸﾘｱﾚﾝｽﾞ	09/2011 - 05/2012	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-B2130	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
81555-B2130	L575,585..CTMRS	09/2011 - 05/2012	1
Common parts
90041-19693
Linked diagrams
8202

L575A-GBSZ (2011)

(1109-1205)PS1
