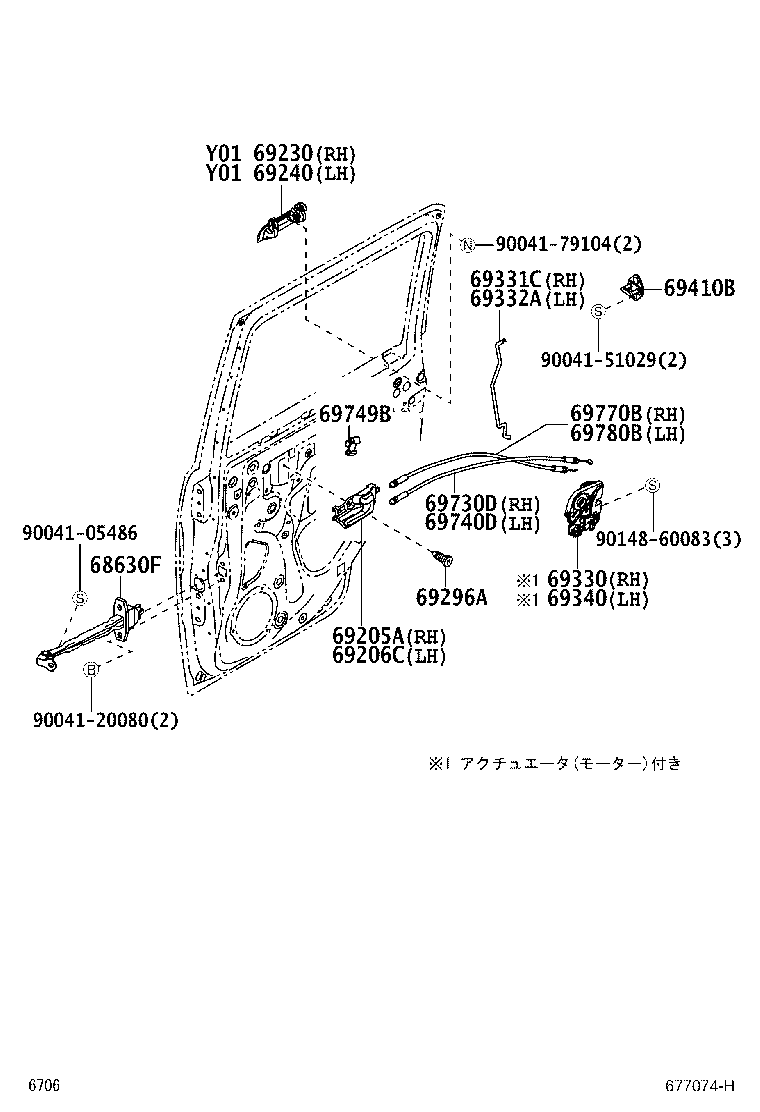

Toyota Pixis space L575A REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68630F - CHECK ASSY, REAR DOOR
68630-B2111	L575,585..CTMRS	09/2011 - 05/2012	2
68630-B2111	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-B2020	L575,585..CTMG,CTMRS,CTMX	09/2011 - 12/2012	1
69270-B2010B3	L575,585..L WARM GRAY,TRIM1#	09/2011 - 01/2013	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-B2010B3	L575,585..L WARM GRAY,TRIM1#	09/2011 - 01/2013	1
69280-B2020	L575,585..CTMG,CTMRS,CTMX	09/2011 - 12/2012	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-B2010D3	L575,585..L,X BROWN MC.CS,R59,単品	09/2011 - 06/2013	1
69230-B2010E4	L575,585..L,X IVORY,T19,単品	09/2011 - 06/2013	1
69210-B2150A0	L575,585..L,X WHITE PEARL MC.CS,W24,単品	09/2011 - 06/2013	1
69230-B2020	L575,585..CTMG,CTMRS,CTMX ﾒｯｷ,単品/ﾒｯｷ	09/2011 - 07/2012	1
69230-B2010E2	L575,585..L,X LT.ROSE M.M.,T22,単品	09/2011 - 06/2013	1
69230-B2010C0	L575,585..L,X BLACK M.M.,X07,単品	09/2011 - 06/2013	1
69210-B2150S8	L575,585..L,X SILVER ME.,S28,単品	09/2011 - 06/2013	1
69230-B2010J3	L575,585..L,X PALE BLUE M.M.,B69,単品	09/2011 - 06/2013	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69230-B2010D3	L575,585..L,X BROWN MC.CS,R59,単品	09/2011 - 06/2013	1
69240-B2010E4	L575,585..L,X IVORY,T19,単品	09/2011 - 06/2013	1
69230-B2010C0	L575,585..L,X BLACK M.M.,X07,単品	09/2011 - 06/2013	1
69240-B2010J3	L575,585..L,X PALE BLUE M.M.,B69,単品	09/2011 - 06/2013	1
69210-B2150S8	L575,585..L,X SILVER ME.,S28,単品	09/2011 - 06/2013	1
69240-B2020	L575,585..CTMG,CTMRS,CTMX ﾒｯｷ,単品/ﾒｯｷ	09/2011 - 07/2012	1
69230-B2010E2	L575,585..L,X LT.ROSE M.M.,T22,単品	09/2011 - 06/2013	1
69210-B2150A0	L575,585..L,X WHITE PEARL MC.CS,W24,単品	09/2011 - 06/2013	1
69296A - SCREW, DOOR INSIDE HANDLE
90041-67041	L575,585	09/2011 - 06/2013	2
69330 - LOCK ASSY, REAR DOOR, RH
69330-B2150	L575,585 ﾛｯﾄﾞ嵌合用ｸﾘｯﾌﾟ付き	09/2011 - 06/2013	1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-B2060	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69331-B2060	L575,585..CTMRS	09/2011 - 05/2012	1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-B2060	L575,585..CTMRS	09/2011 - 05/2012	1
69332-B2060	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-B2170	L575,585 ﾛｯﾄﾞ嵌合用ｸﾘｯﾌﾟ付き	09/2011 - 06/2013	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-B2030	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69410-B2030	L575,585..CTMRS	09/2011 - 05/2012	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B2130	L575,585..CTMRS	09/2011 - 05/2012	1
69730-B2130	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B2130	L575,585..CTMRS	09/2011 - 05/2012	1
69730-B2130	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040	L575,585..CTMRS	09/2011 - 05/2012	2
69749-32040	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B2120	L575,585..CTMRS	09/2011 - 05/2012	1
69770-B2120	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B2110	L575,585..CTMRS	09/2011 - 05/2012	1
69780-B2110	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
Common parts
90041-05486
90041-20080
90041-51029
90041-79104
90148-60083

L575A-GBSZ (2011)

(1109- )
