L575A-GBSZ (2011)
Toyota Pixis Space
Production
Sep 2011
-
May 2012
Engine
KFDET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1306)CTMG,CTMX,L,X ; (1109- )CTMRS

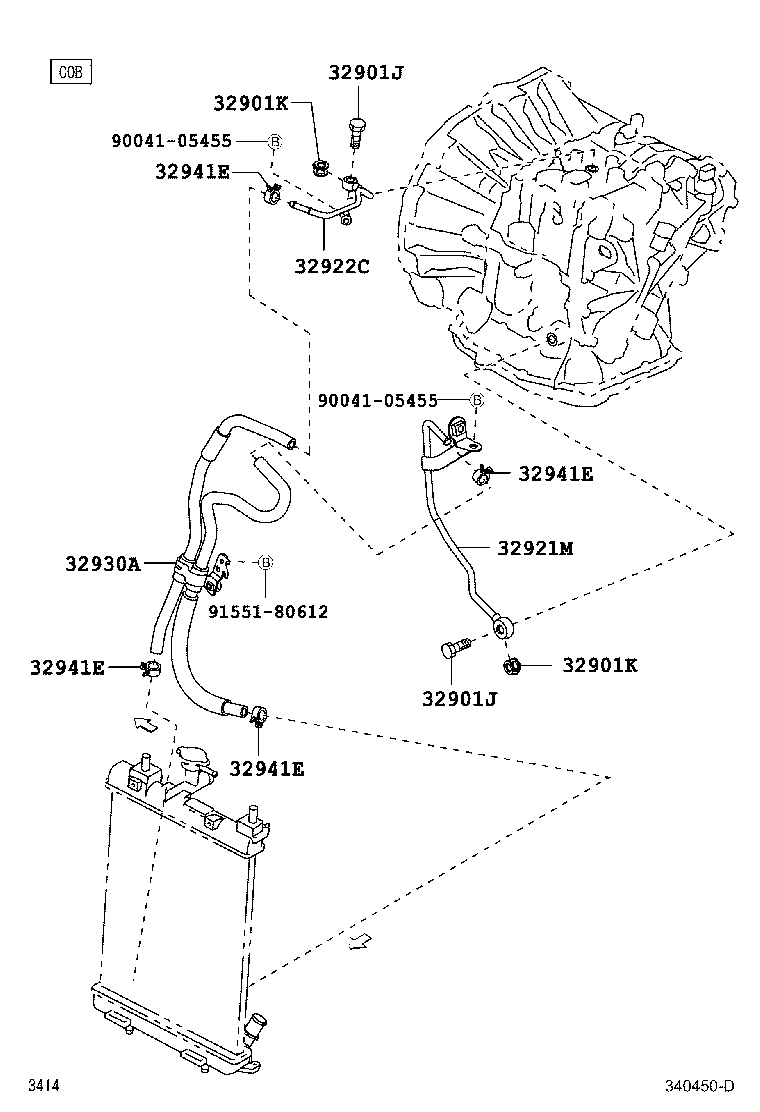

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901J - BOLT, UNION(FOR OIL COOLER) | ||||
| 90044-01479 |
L575,585..CTMRS |
2 | ||
| 90044-01479 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 32901J - BOLT, UNION(FOR OIL COOLER) | ||||
| 90044-01479 |
L575,585..CTMRS |
2 | ||
| 90044-01479 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 32901K - GASKET(FOR OIL COOLER UNION) | ||||
| 90044-30329 |
L575,585 |
2 | ||
| 32901K - GASKET(FOR OIL COOLER UNION) | ||||
| 90044-30329 |
L575,585 |
2 | ||
| 32921M - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32904-B2040 |
L575,585 |
1 | ||
| 32922C - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32905-B2070 |
L575,585 |
1 | ||
| 32930A - HOSE ASSY, TRANSMISSION OIL COOLER | ||||
| 32940-B2080 |
L575,585 |
1 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90044-67576 |
L575,585 |
4 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90044-67576 |
L575,585 |
4 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90044-67576 |
L575,585 |
4 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90044-67576 |
L575,585 |
4 | ||
| Common parts | ||||
| 90041-05455 | ||||
| 91551-80612 | ||||
