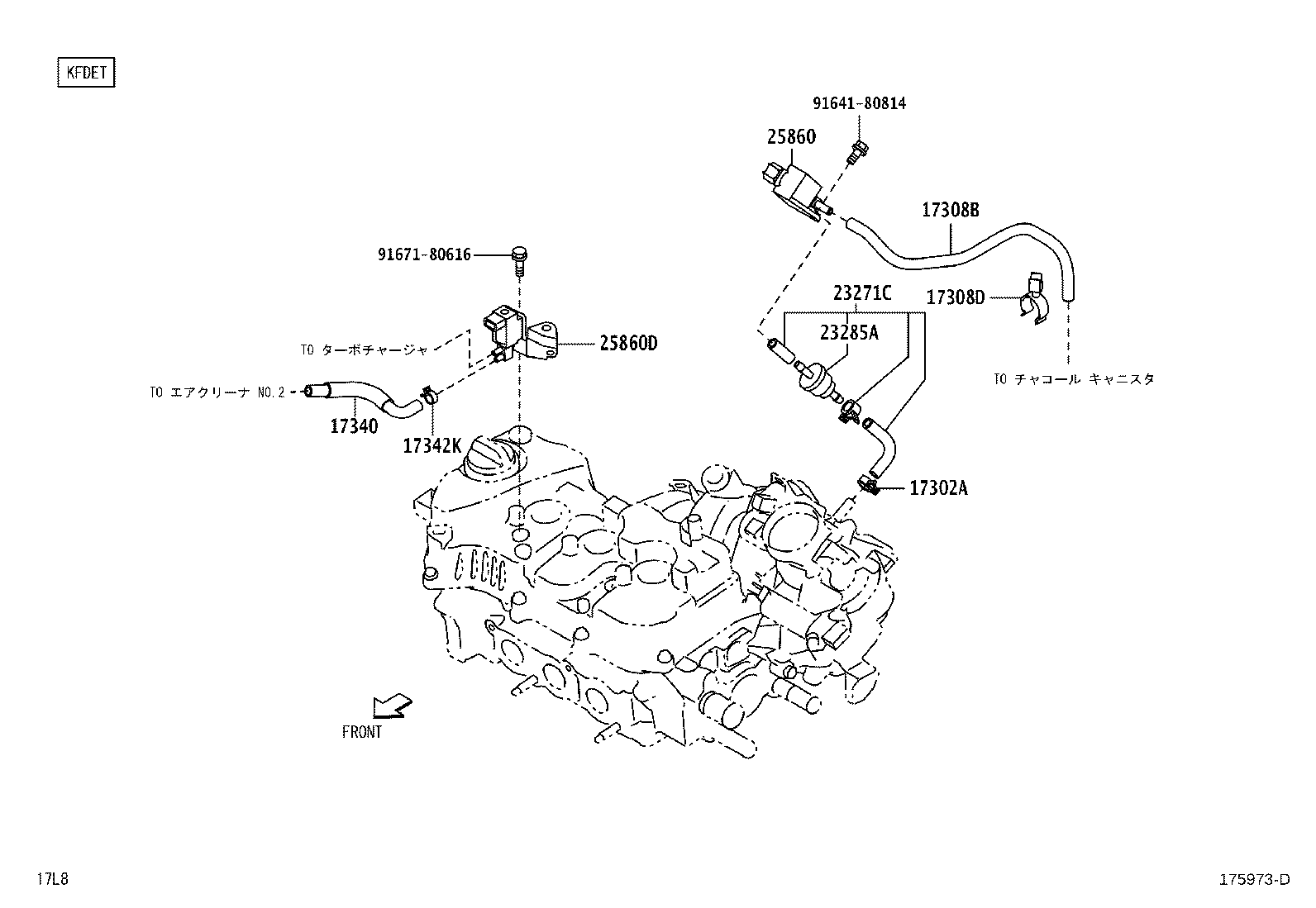

Toyota Pixis space L575A VACUUM PIPING

Part #	Description	Period	Qty
17302A - CLIP, HOSE
96135-41100	KFDET..L575,585	09/2011 - 05/2012	1
17308B - HOSE SUB-ASSY, VACUUM
77754-B2040	KFDET..L575,585	09/2011 - 05/2012	1
17308D - CLAMP, NO.2(FOR VACUUM HOSE)
90044-64831	KFDET..L575,585	09/2011 - 05/2012	1
17340 - HOSE ASSY, VACUUM SWITCHING VALVE
17340-B2010	KFDET..L575,585	09/2011 - 06/2013	1
17342K - CLIP(FOR VACUUM HOSE)
90044-67271	KFDET..L575,585	09/2011 - 05/2012	1
23271C - HOSE, FUEL
17308-B2050	KFDET..L575,585	09/2011 - 05/2012	1
23285A - VALVE, CHECK, NO.1
90048-20012	KFDET..L575,585	09/2011 - 05/2012	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
89470-B2020	KFDET..L575,585	09/2011 - 05/2012	1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
89470-B2010	KFDET..L575,585	09/2011 - 05/2012	1
Common parts
91641-80814
91671-80616

L575A-GBSZ (2011)
