L575A-GBSF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1109- )

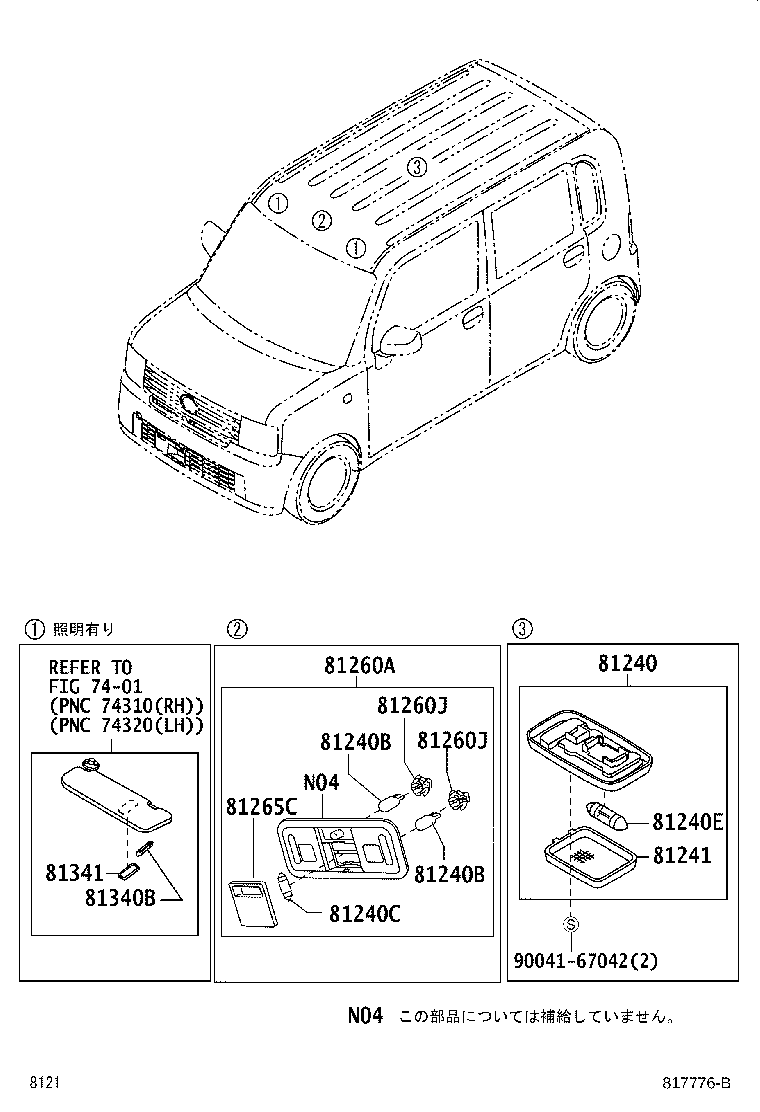

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81240 - LAMP ASSY, ROOM, NO.1
81240-B2050B0	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	1
81240B - BULB, ROOM LAMP, NO.1
90981-11013	L575,585 12V 5W T10	09/2011 - 06/2013	2
81240B - BULB, ROOM LAMP, NO.1
90981-11013	L575,585 12V 5W T10	09/2011 - 06/2013	2
81240C - BULB
90049-51153	L575,585	09/2011 - 06/2013	1
81240E - BULB, ROOM LAMP, NO.2
90049-51153	L575,585 12V 8W	09/2011 - 06/2013	1
81241 - LENS, ROOM LAMP, NO.1
81241-97201	L575,585	09/2011 - 06/2013	1
81260A - LAMP ASSY, MAP
81260-B1010B0	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	1
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-87705	L575,585	09/2011 - 06/2013	2
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-87705	L575,585	09/2011 - 06/2013	2
81265C - LENS, MAP LAMP, NO.1
81265-97201	L575,585	09/2011 - 06/2013	1
81340B - BULB (FOR VANITY LAMP)
90049-51172	L575,585..CTMG,CTMRS,CTMX 12V 2W	09/2011 - 06/2013	1
81341 - LENS, VANITY LAMP
81241-B2070	L575,585..CTMG,CTMRS,CTMX	09/2011 - 06/2013	2
Common parts
90041-67042
Linked diagrams
7401
