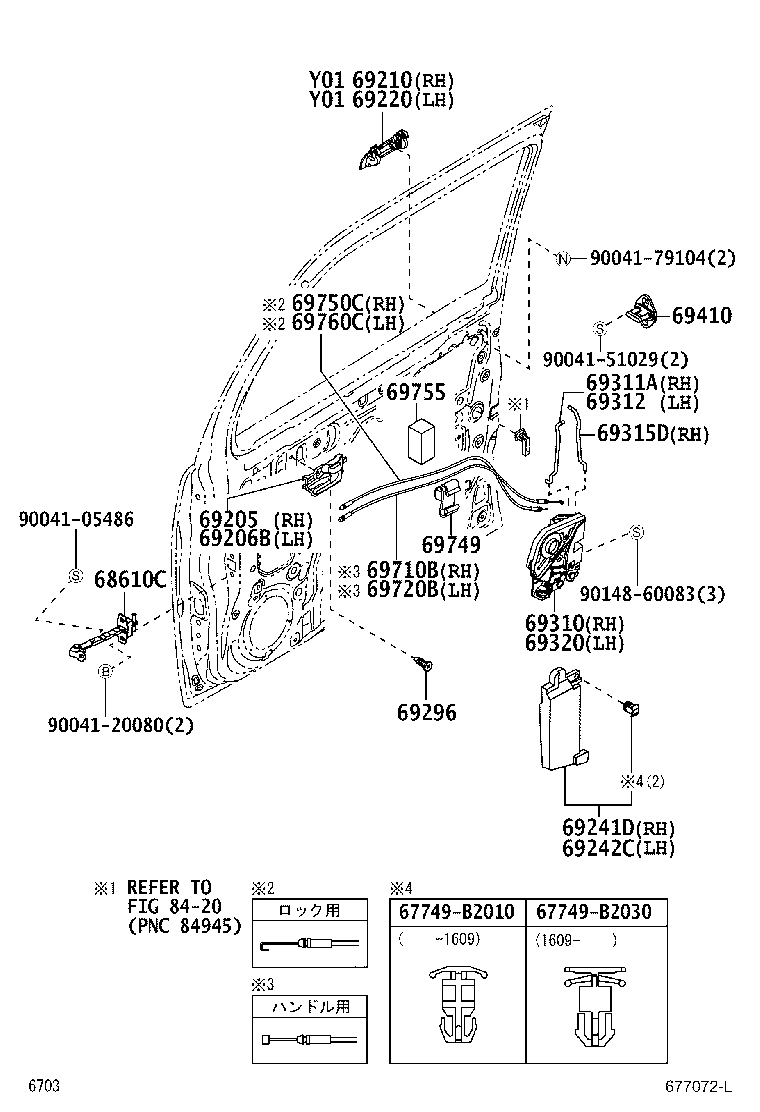

Toyota Pixis space L575A FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68610C - CHECK ASSY, FRONT DOOR
68610-B2121	L575,585	09/2011 - 09/2012	2
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-B2020	L575,585..CTMG,CTMRS,CTMX	09/2011 - 12/2012	1
69270-B2010B3	L575,585..L WARM GRAY,TRIM1#	09/2011 - 01/2013	1
69270-B2010B4	L575,585..X DK.GRAY,TRIM11	09/2011 - 01/2013	1
69270-B2010B3	L575,585..X WARM GRAY,TRIM10	09/2011 - 01/2013	1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-B2010B4	L575,585..X DK.GRAY,TRIM11	09/2011 - 01/2013	1
69280-B2010B3	L575,585..X WARM GRAY,TRIM10	09/2011 - 01/2013	1
69280-B2010B3	L575,585..L WARM GRAY,TRIM1#	09/2011 - 01/2013	1
69280-B2020	L575,585..CTMG,CTMRS,CTMX	09/2011 - 12/2012	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69230-B2020	L575,585..CTMG,CTMRS,CTMX ﾒｯｷ,単品/ﾒｯｷ	09/2011 - 07/2012	1
69210-B2150A0	L575,585..L,X WHITE PEARL MC.CS,W24,単品	09/2011 - 06/2013	1
69210-B2150S8	L575,585..L,X SILVER ME.,S28,単品	09/2011 - 06/2013	1
69230-B2010C0	L575,585..L,X BLACK M.M.,X07,単品	09/2011 - 06/2013	1
69230-B2010E4	L575,585..L,X IVORY,T19,単品	09/2011 - 06/2013	1
69230-B2010E2	L575,585..L,X LT.ROSE M.M.,T22,単品	09/2011 - 06/2013	1
69230-B2010J3	L575,585..L,X PALE BLUE M.M.,B69,単品	09/2011 - 06/2013	1
69230-B2010D3	L575,585..L,X BROWN MC.CS,R59,単品	09/2011 - 06/2013	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-B2150S8	L575,585..L,X SILVER ME.,S28,単品	09/2011 - 06/2013	1
69230-B2010D3	L575,585..L,X BROWN MC.CS,R59,単品	09/2011 - 06/2013	1
69230-B2010C0	L575,585..L,X BLACK M.M.,X07,単品	09/2011 - 06/2013	1
69230-B2010E2	L575,585..L,X LT.ROSE M.M.,T22,単品	09/2011 - 06/2013	1
69240-B2020	L575,585..CTMG,CTMRS,CTMX ﾒｯｷ,単品/ﾒｯｷ	09/2011 - 07/2012	1
69240-B2010E4	L575,585..L,X IVORY,T19,単品	09/2011 - 06/2013	1
69240-B2010J3	L575,585..L,X PALE BLUE M.M.,B69,単品	09/2011 - 06/2013	1
69210-B2150A0	L575,585..L,X WHITE PEARL MC.CS,W24,単品	09/2011 - 06/2013	1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
75787-B2060	L575,585	09/2011 - 06/2013	1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
75788-B2060	L575,585	09/2011 - 06/2013	1
69296 - SCREW, DOOR INSIDE HANDLE
90041-67041	L575,585	09/2011 - 06/2013	2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-B2280	L575,585 ﾓｰﾀｰ付き	09/2011 - 06/2013	1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-B2090	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-B2080	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH
69315-B2050	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-B2310	L575,585 ﾓｰﾀｰ付き	09/2011 - 06/2013	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-B2030	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-B2130	L575,585 ﾊﾝﾄﾞﾙ用	09/2011 - 06/2013	1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-B2130	L575,585 ﾊﾝﾄﾞﾙ用	09/2011 - 06/2013	1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-B2140	L575,585 ﾛｯｸ用	09/2011 - 06/2013	1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-87207	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-B2140	L575,585 ﾛｯｸ用	09/2011 - 06/2013	1
Common parts
67749-B2010
67749-B2030
90041-05486
90041-20080
90041-51029
90041-79104
90148-60083
Linked diagrams
8420

L575A-GBSF (2011)

(1109- )
