L575A-GBSF (2011)
Toyota Pixis Space

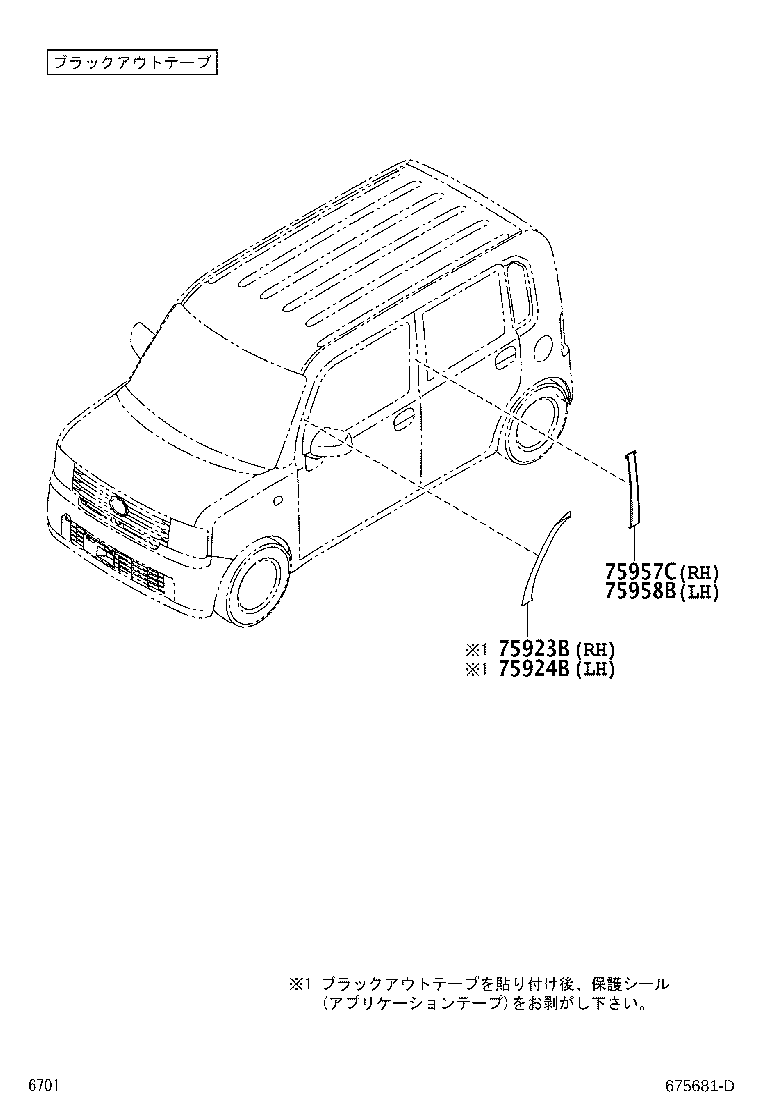

ILLUST NO. 4 OF 4(1109- )
ﾌﾞﾗｯｸｱｳﾄﾄﾞｱﾃｰﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-B2090C0 |
L575,585..CTMG,CTMRS,CTMX TUYAKESI BLACK DUMMYCOLOR,B70 ,B76 ,R59 ,R66 ,S28 ,W24 |
1 | ||
| 75923-B2090C0 |
L575,585..L,X TUYAKESI BLACK DUMMYCOLOR,B69 ,R59 ,R66 ,S28 ,T19 ,T22 ,W24 |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-B2090C0 |
L575,585..CTMG,CTMRS,CTMX TUYAKESI BLACK DUMMYCOLOR,B70 ,B76 ,R59 ,R66 ,S28 ,W24 |
1 | ||
| 75924-B2090C0 |
L575,585..L,X TUYAKESI BLACK DUMMYCOLOR,B69 ,R59 ,R66 ,S28 ,T19 ,T22 ,W24 |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75925-B2090C0 |
L575,585..CTMG,CTMRS,CTMX TUYAKESI BLACK DUMMYCOLOR,B70 ,B76 ,R59 ,R66 ,S28 ,W24 |
1 | ||
| 75925-B2090C0 |
L575,585..L,X TUYAKESI BLACK DUMMYCOLOR,B69 ,R59 ,R66 ,S28 ,T19 ,T22 ,W24 |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75926-B2090C0 |
L575,585..L,X TUYAKESI BLACK DUMMYCOLOR,B69 ,R59 ,R66 ,S28 ,T19 ,T22 ,W24 |
1 | ||
| 75926-B2090C0 |
L575,585..CTMG,CTMRS,CTMX TUYAKESI BLACK DUMMYCOLOR,B70 ,B76 ,R59 ,R66 ,S28 ,W24 |
1 | ||

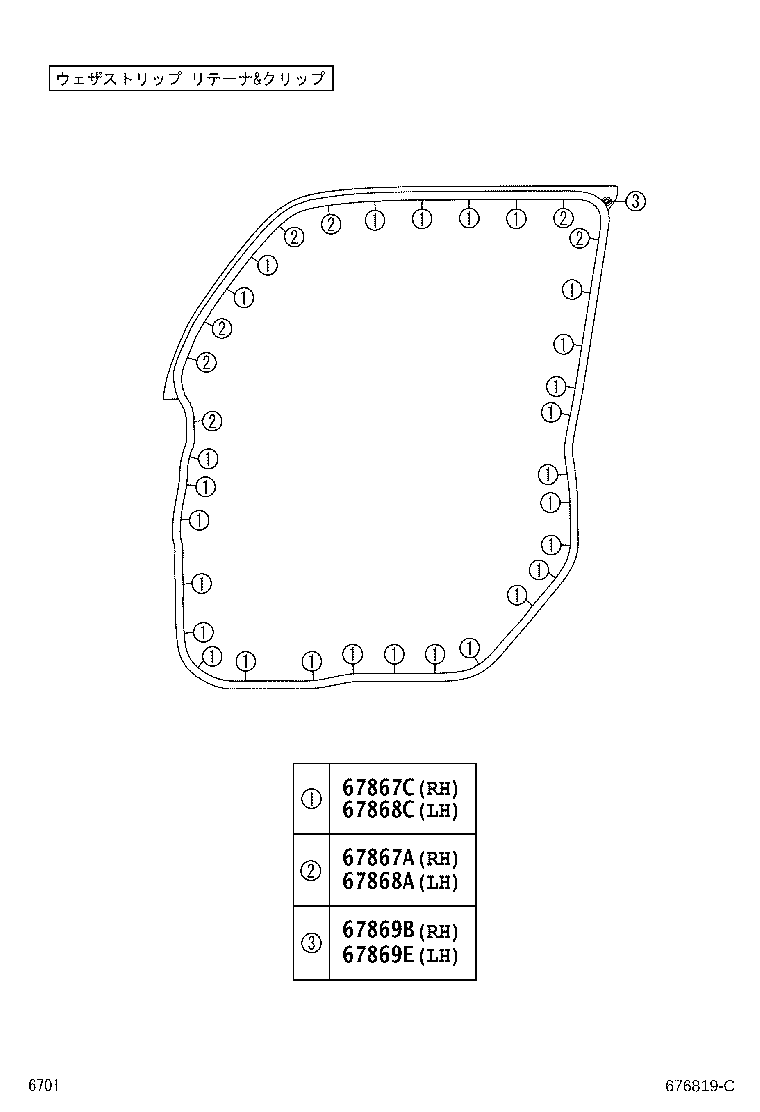

ILLUST NO. 3 OF 4(1109- )
ｳｪｻﾞｽﾄﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-B2320 |
L575,585 |
7 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-B2320 |
L575,585 |
27 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-B2320 |
L575,585 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-B2320 |
L575,585 |
27 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
L575,585 |
1 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
L575,585 |
1 | ||

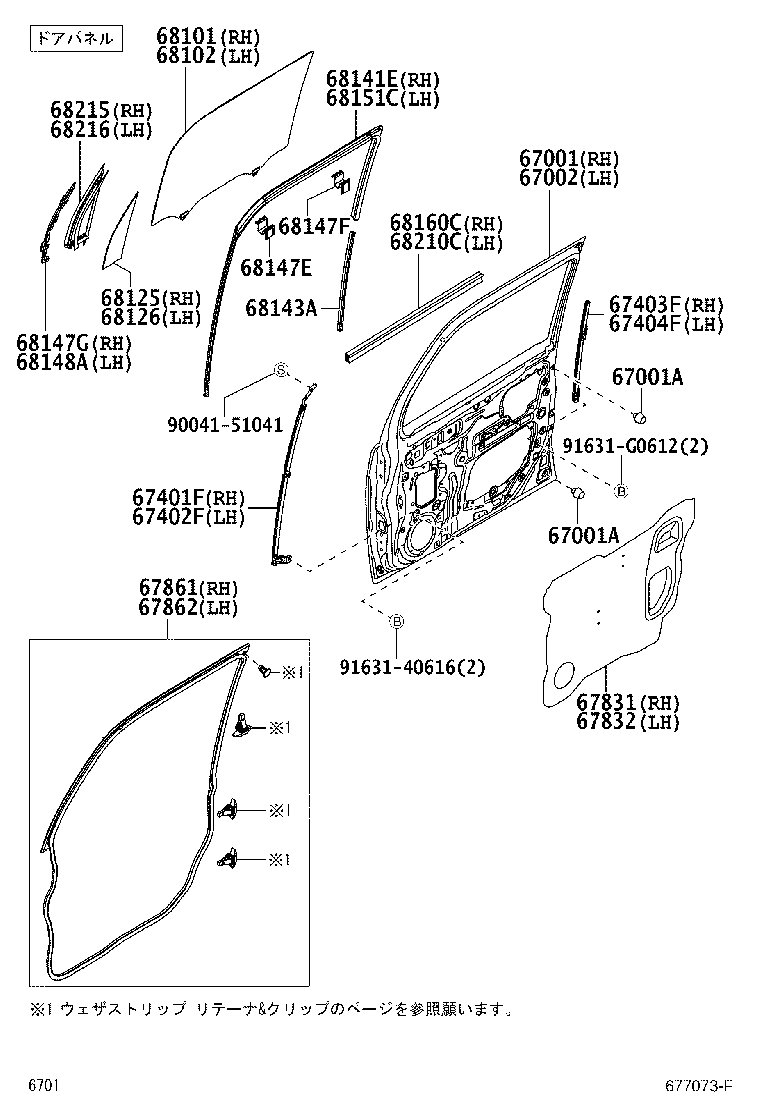

ILLUST NO. 1 OF 4(1109- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-B2260 |
L575,585..L |
1 | ||
| 67001-B2360 |
L575,585..CTMG,CTMX,X |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
L575,585..CTMG,CTMX,L,X |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
L575,585..CTMG,CTMX,L,X |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-B2260 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-B2151 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-B2141 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-B2120 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-B2120 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-B2201 |
L575,585 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-B2201 |
L575,585 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-B2130 |
L575,585 |
1 | ||
| 67861-B2131 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-B2131 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 67862-B2130 |
L575,585 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-B2300 |
L575,585 T=3.1 UVｸﾞﾘｰﾝ |
1 | ||
| 68101-B2301 |
L575,585..CTMG,CTMX,L,X T=3.1 UVｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-B2301 |
L575,585..CTMG,CTMX,L,X T=3.1 UVｸﾞﾘｰﾝ |
1 | ||
| 68102-B2300 |
L575,585 T=3.1 UVｸﾞﾘｰﾝ |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-B2050 |
L575,585..CTMG,CTMX,L,X ｸﾞﾘｰﾝ UV |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-B2050 |
L575,585..CTMG,CTMX,L,X ｸﾞﾘｰﾝ UV |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-B2132 |
L575,585 |
1 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-B2040 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 68147E - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-B2030 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 68147F - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-B2040 |
L575,585..CTMG,CTMX,L,X |
2 | ||
| 68147G - COVER, FRONT DOOR GLASS WEATHERSTRIP, RH | ||||
| 68147-B2080 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 68148A - COVER, FRONT DOOR GLASS WEATHERSTRIP, LH | ||||
| 68148-B2010 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-B2132 |
L575,585 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-B2131 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-B2131 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-B2031 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-B2031 |
L575,585..CTMG,CTMX,L,X |
1 | ||
| Common parts | ||||
| 90041-51041 | ||||
| 91631-40616 | ||||
| 91631-G0612 | ||||

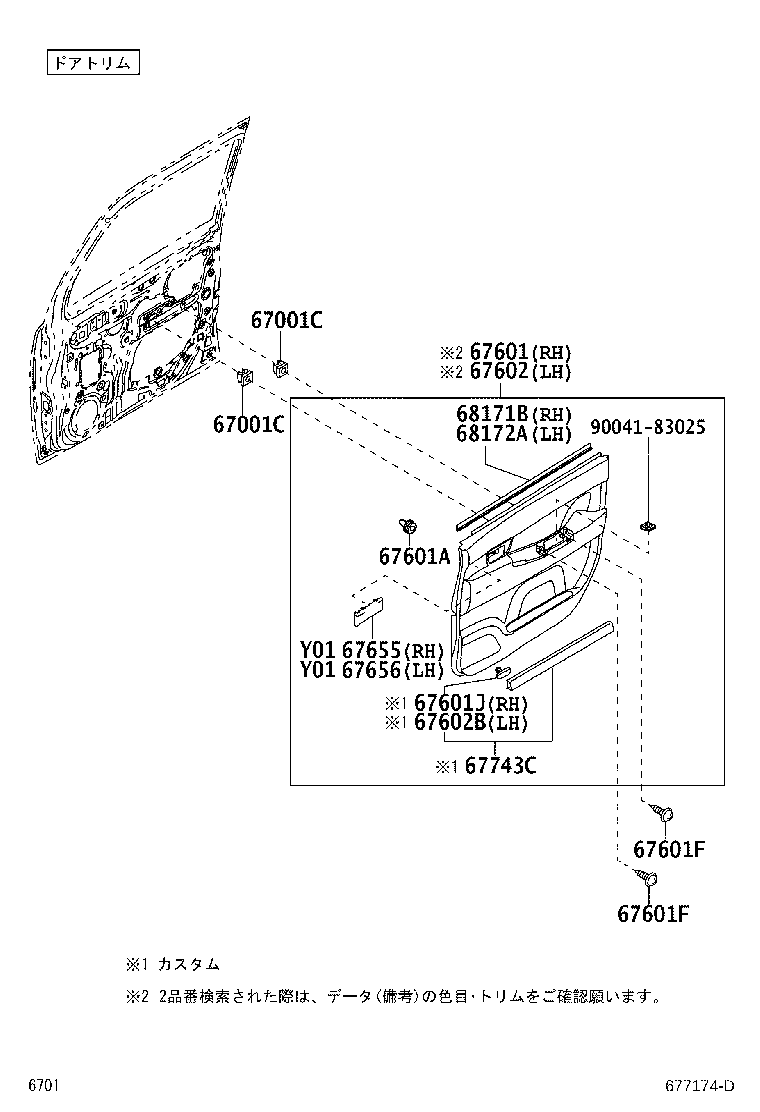

ILLUST NO. 2 OF 4(1109- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001C - GROMMET(FOR FRONT DOOR PANEL) | ||||
| 90041-89019 |
L575,585 |
4 | ||
| 67001C - GROMMET(FOR FRONT DOOR PANEL) | ||||
| 90041-89019 |
L575,585 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-B2890B2 |
L575,585..X SILVER,TRIM11 |
1 | ||
| 67610-B2A40B1 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 SILVER,TRIM1# |
1 | ||
| 67610-B2890D0 |
L575,585..X WINE RED,TRIM10 |
1 | ||
| 67610-B2890D0 |
L575,585..L WINE RED,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-B2010 |
L575,585..CTMG,CTMX,L,X |
14 | ||
| 67601F - SCREW(FOR FRONT DOOR TRIM BOARD) | ||||
| 90041-68137 |
L575,585 |
4 | ||
| 67601F - SCREW(FOR FRONT DOOR TRIM BOARD) | ||||
| 90041-68137 |
L575,585 |
4 | ||
| 67601J - RETAINER, DOOR TRIM, NO.2 RH | ||||
| 67867-B2100 |
L575,585..CTMG,CTMRS,CTMX |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-B2A00D0 |
L575,585..L WINE RED,TRIM1# |
1 | ||
| 67620-B2A50B1 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 SILVER,TRIM1# |
1 | ||
| 67620-B2A00D0 |
L575,585..X WINE RED,TRIM10 |
1 | ||
| 67620-B2A00B2 |
L575,585..X SILVER,TRIM11 |
1 | ||
| 67602B - RETAINER, DOOR TRIM, NO.2 LH | ||||
| 67867-B2100 |
L575,585..CTMG,CTMRS,CTMX |
5 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67655-B2010B1 |
L575,585..X SILVER,TRIM11 |
1 | ||
| 67655-B2010B1 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 SILVER,TRIM1# |
1 | ||
| 67655-B2010D0 |
L575,585..X WINE RED,TRIM10 |
1 | ||
| 67655-B2010D0 |
L575,585..L WINE RED,TRIM1# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67656-B2010D0 |
L575,585..X WINE RED,TRIM10 |
1 | ||
| 67656-B2010B1 |
L575,585..X SILVER,TRIM11 |
1 | ||
| 67656-B2010B1 |
L575,585..(CTMG,CTMX)..PS1;L575,585..(CTMG,CTMRS,CTMX)..PS2 SILVER,TRIM1# |
1 | ||
| 67656-B2010D0 |
L575,585..L WINE RED,TRIM1# |
1 | ||
| 67743C - SEAL, FRONT DOOR TRIM | ||||
| 67743-B2020 |
L575,585..CTMG,CTMX |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-B2160 |
L575,585 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-B2140 |
L575,585 |
1 | ||
| Common parts | ||||
| 90041-83025 | ||||
