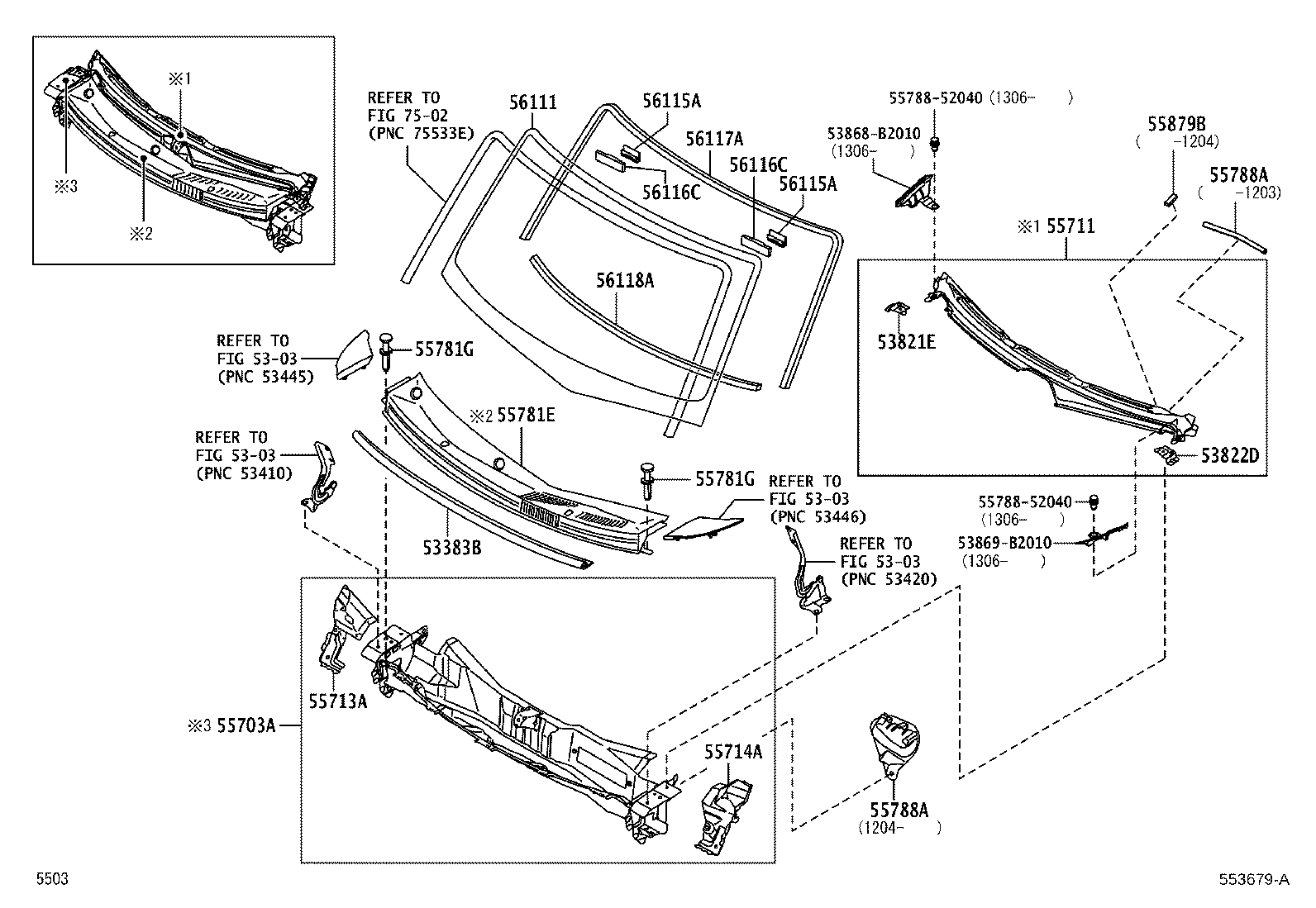

Toyota Pixis space L575A COWL PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53383B - SEAL, HOOD TO COWL TOP
53383-B2130	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
53383-B2130	L575,585..PS2	09/2011 - 06/2013	1
53821E - BRACKET, FRONT FENDER, REAR RH
61125-B2010	L575,585	09/2011 - 06/2013	1
53822D - BRACKET, FRONT FENDER, REAR LH
61126-B2010	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
61126-B2010	L575,585..PS2	09/2011 - 06/2013	1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B2380	L575,585..CTMG,CTMX,L,X	09/2011 - 05/2012	1
55703-B2381	L575,585	05/2012 - 06/2013	1
55711 - PANEL, COWL TOP, OUTER
55701-B2180	L575,585	09/2011 - 06/2013	1
55713A - PANEL, COWL TOP SIDE, RH
61121-B2090	L575,585..PS2	09/2011 - 06/2013	1
61121-B2090	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
55714A - PANEL, COWL TOP SIDE, LH
61122-B2090	L575,585..PS2	09/2011 - 06/2013	1
61122-B2090	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781-B2210	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
55781-B2210	L575,585..PS2	09/2011 - 06/2013	1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569	L575,585..PS2	09/2011 - 06/2013	2
90044-67569	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569	L575,585..PS2	09/2011 - 06/2013	2
90044-67569	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-B2080	L575,585..PS2	04/2012 - 06/2013	1
55788-B2070	L575,585	09/2011 - 04/2012	1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-B2080	L575,585..PS2	04/2012 - 06/2013	1
55788-B2070	L575,585	09/2011 - 04/2012	1
55879B - SEAL, COWL VENT
55879-B2050	L575,585	09/2011 - 04/2012	1
56111 - GLASS, WINDSHIELD
56111-B2270	L575,585..(L,X)..PS2 T=4.5,ｸﾞﾘｰﾝ	09/2011 - 06/2013	1
56111-B2270	L575,585..L,X T=4.5,ｸﾞﾘｰﾝ	09/2011 - 04/2012	1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402	L575,585..PS2	09/2011 - 06/2013	2
56115-97402	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402	L575,585..PS2	09/2011 - 06/2013	2
56115-97402	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401	L575,585..PS2	09/2011 - 06/2013	2
56116-97401	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401	L575,585..PS2	09/2011 - 06/2013	2
56116-97401	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B2080	L575,585..CTMG,CTMX,L,X 長さ=2043	09/2011 - 04/2012	1
56117-B2080	L575,585..PS2 長さ=2043	09/2011 - 06/2013	1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-B2090	L575,585..PS2 長さ=1144	09/2011 - 06/2013	1
56118-B2090	L575,585..CTMG,CTMX,L,X 長さ=1144	09/2011 - 04/2012	1
Common parts
53868-B2010
53869-B2010
55788-52040
Linked diagrams
5303
7502

L575A-GBMF2 (2012)

(1109-1306)
