L575A-GBMF (2013)
Toyota Pixis Space

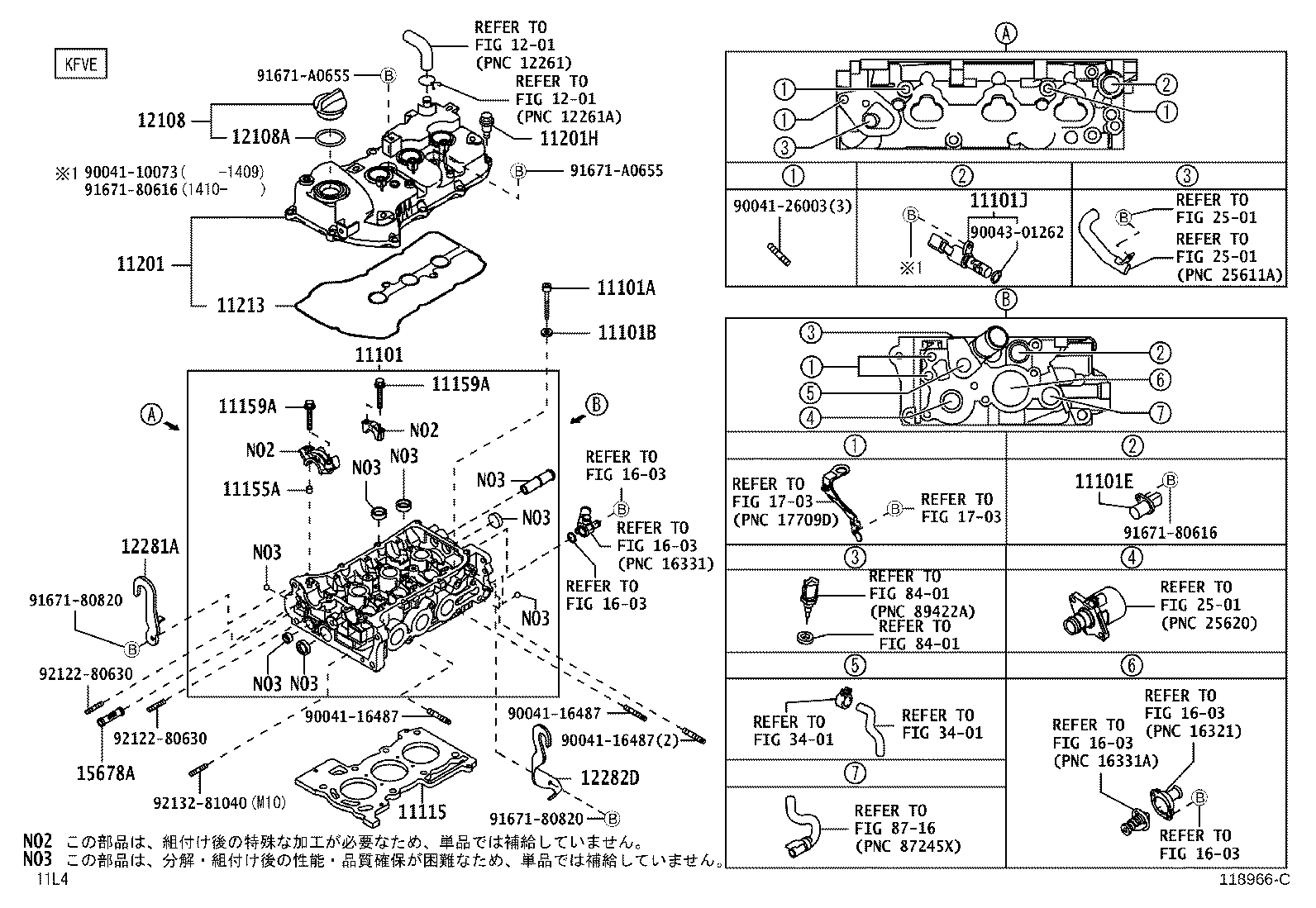

(1306-1307)KFVE
KFVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-B9600 |
KFVE..L575,585 |
1 | ||
| 11101-B9610 |
KFVE..L575,585 |
1 | ||
| 11101-B2132 |
KFVE..L575,585 SET PART(PNC 15678A) |
1 | ||
| 11101-B2131 |
KFVE..L575,585 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90041-09258 |
KFVE..L575,585 |
8 | ||
| 90041-09258 |
KF#..L575,585 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90042-01637 |
KF#..L575,585 |
8 | ||
| 90042-01637 |
KFVE..L575,585 |
8 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 19311-B2011 |
KFVE..L575,585 |
1 | ||
| 19311-B2011 |
KF#..L575,585 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-B2020 |
KFVE..L575,585 |
1 | ||
| 15330-B2020 |
KFVE..L575,585 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-B2042 |
KFVE..L575,585 |
1 | ||
| 11115-B2041 |
KFVE..L575,585 |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90042-53010 |
KF#..L575,585 |
2 | ||
| 90042-53010 |
KF#..L575,585 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-B2013 |
KFVE..L575,585 |
1 | ||
| 11210-B2014 |
KFVE..L575,585 |
1 | ||
| 11210-B2013 |
KFVE..L575,585 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90041-09271 |
KF#..L575,585 |
10 | ||
| 90041-09271 |
KF#..L575,585 |
10 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-B2011 |
KF#..L575,585 |
1 | ||
| 11213-B2011 |
KF#..L575,585 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-97201 |
KFVE..L575,585 |
1 | ||
| 12180-97201 |
KF#..L575,585 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-87206 |
KFVE..L575,585 |
1 | ||
| 12195-87206 |
KF#..L575,585 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-B2010 |
KFVE..L575,585 |
1 | ||
| 12281-B2010 |
KF#..L575,585 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-B2060 |
KF#..L575,585 |
1 | ||
| 12282-B2070 |
KFVE..L575,585 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-B2020 |
KFVE..L575,585 |
1 | ||
| 15678-B2010 |
KFVE..L575,585 |
1 | ||
| 15678-B2010 |
KFVE..L575,585 |
1 | ||
| Common parts | ||||
| 90041-16487 | ||||
| 90041-26003 | ||||
| 90043-01262 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-A0655 | ||||
| 92122-80630 | ||||
| 92122-80840 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||

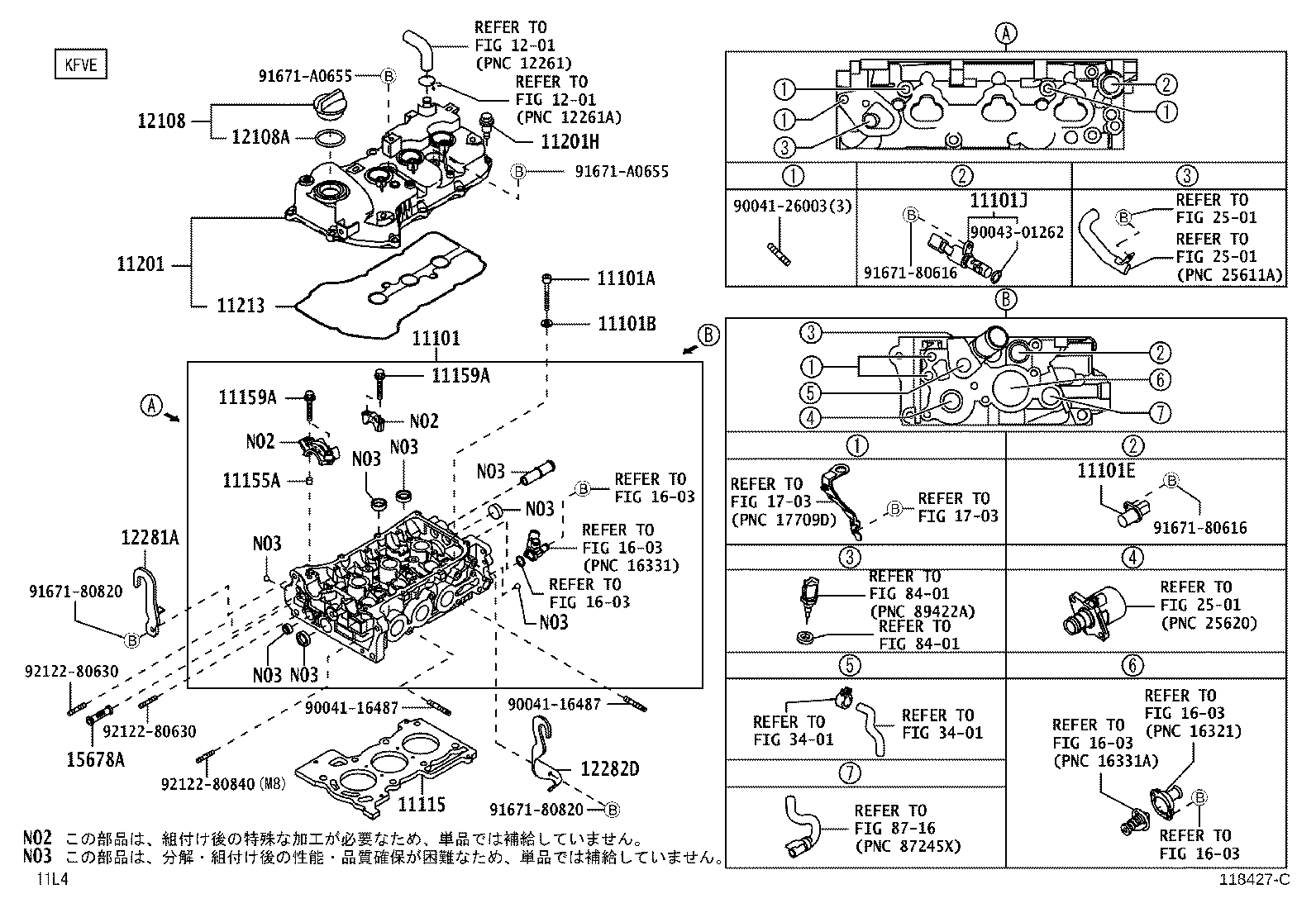

(1307- )KFVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-B9600 |
KFVE..L575,585 |
1 | ||
| 11101-B9610 |
KFVE..L575,585 |
1 | ||
| 11101-B2132 |
KFVE..L575,585 SET PART(PNC 15678A) |
1 | ||
| 11101-B2131 |
KFVE..L575,585 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90041-09258 |
KFVE..L575,585 |
8 | ||
| 90041-09258 |
KF#..L575,585 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90042-01637 |
KF#..L575,585 |
8 | ||
| 90042-01637 |
KFVE..L575,585 |
8 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 19311-B2011 |
KFVE..L575,585 |
1 | ||
| 19311-B2011 |
KF#..L575,585 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-B2020 |
KFVE..L575,585 |
1 | ||
| 15330-B2020 |
KFVE..L575,585 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-B2042 |
KFVE..L575,585 |
1 | ||
| 11115-B2041 |
KFVE..L575,585 |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90042-53010 |
KF#..L575,585 |
2 | ||
| 90042-53010 |
KF#..L575,585 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 90041-19911 |
KF#..L575,585 |
16 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-B2013 |
KFVE..L575,585 |
1 | ||
| 11210-B2014 |
KFVE..L575,585 |
1 | ||
| 11210-B2013 |
KFVE..L575,585 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90041-09271 |
KF#..L575,585 |
10 | ||
| 90041-09271 |
KF#..L575,585 |
10 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-B2011 |
KF#..L575,585 |
1 | ||
| 11213-B2011 |
KF#..L575,585 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-97201 |
KFVE..L575,585 |
1 | ||
| 12180-97201 |
KF#..L575,585 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-87206 |
KFVE..L575,585 |
1 | ||
| 12195-87206 |
KF#..L575,585 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-B2010 |
KFVE..L575,585 |
1 | ||
| 12281-B2010 |
KF#..L575,585 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-B2060 |
KF#..L575,585 |
1 | ||
| 12282-B2070 |
KFVE..L575,585 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-B2020 |
KFVE..L575,585 |
1 | ||
| 15678-B2010 |
KFVE..L575,585 |
1 | ||
| 15678-B2010 |
KFVE..L575,585 |
1 | ||
| Common parts | ||||
| 90041-10073 | ||||
| 90041-16487 | ||||
| 90041-26003 | ||||
| 90043-01262 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-A0655 | ||||
| 92122-80630 | ||||
| 92132-81040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||
