L575A-GBMF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

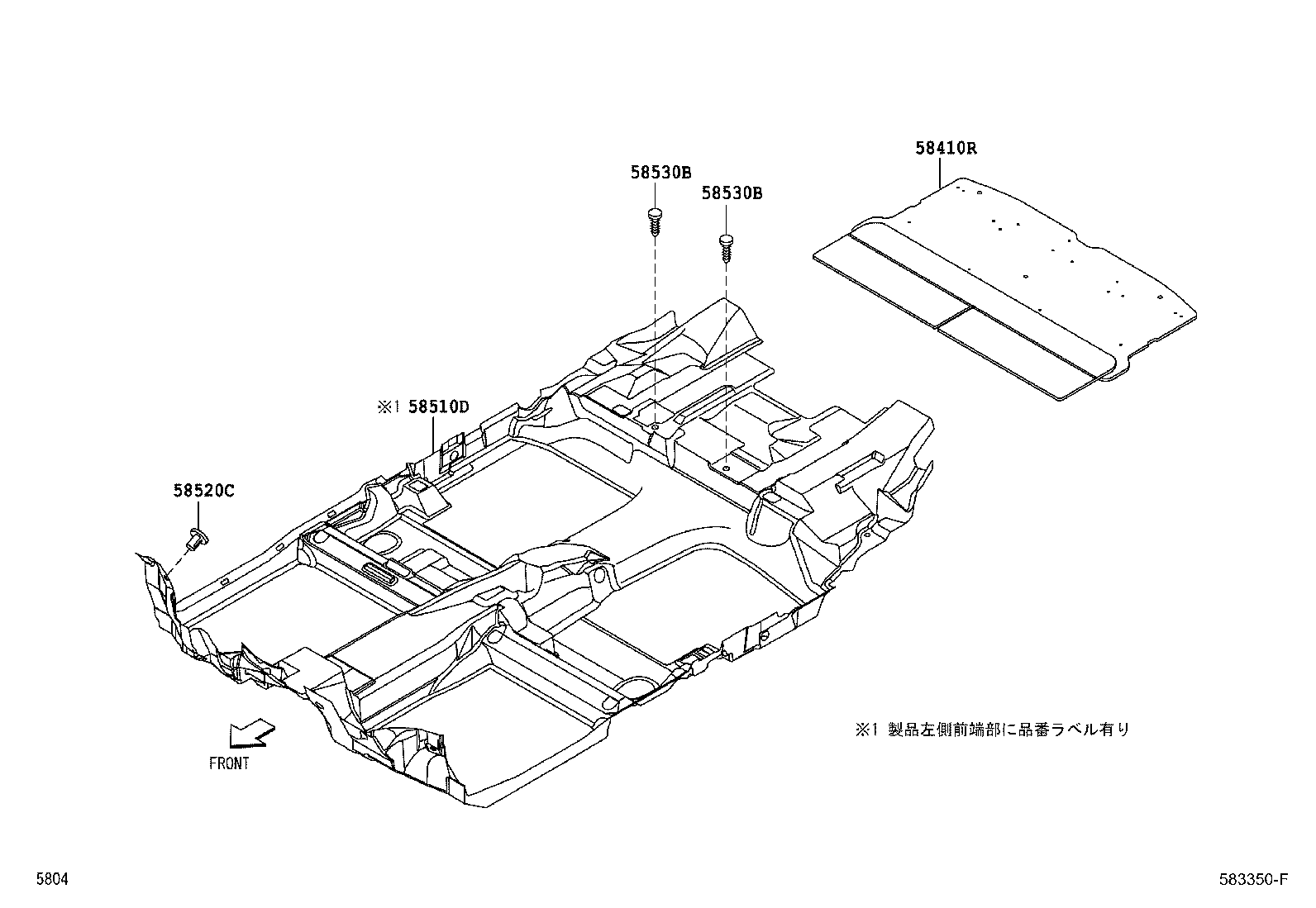

Click highlighted areas on diagram

diagram 58410R 58510D 58520C 58530B 58530B
Part # Description Qty Price
58410R - BOARD ASSY, DECK
58410-B2270B0

L575

GRAY,TRIM1#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-B2K60B1

L575

積雪地仕様,DK.GRAY,TRIM1#

 1
58510-B2K60B1

L575

寒冷地仕様,DK.GRAY,TRIM1#

 1
58510-B2J70B1

L575..CTMG,CTMRS,CTMX,L

DK.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90044-67397

L575,585..CTMG,CTMX,L,X

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90044-68046B2

L575,585

DK.GRAY

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90044-68046B2

L575,585

DK.GRAY

 2
