Toyota Pixis space L575A BRAKE TUBE & CLAMP

Part #	Description	Period	Qty

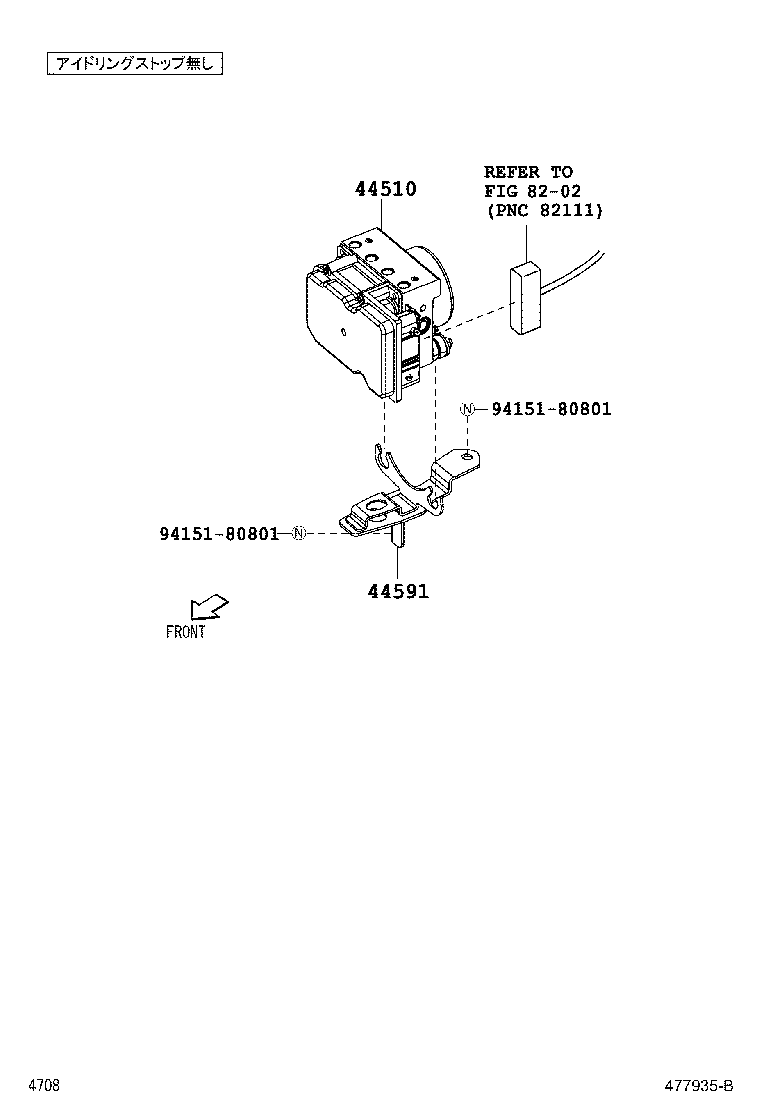

44510 - ACTUATOR ASSY, BRAKE
44050-B2190	L575..CTMX,L	09/2011 - 04/2012	1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-B2050	L575,585..CTMX,L	09/2011 - 04/2012	1
Common parts
94151-80801
Linked diagrams
8202

Part #	Description	Period	Qty

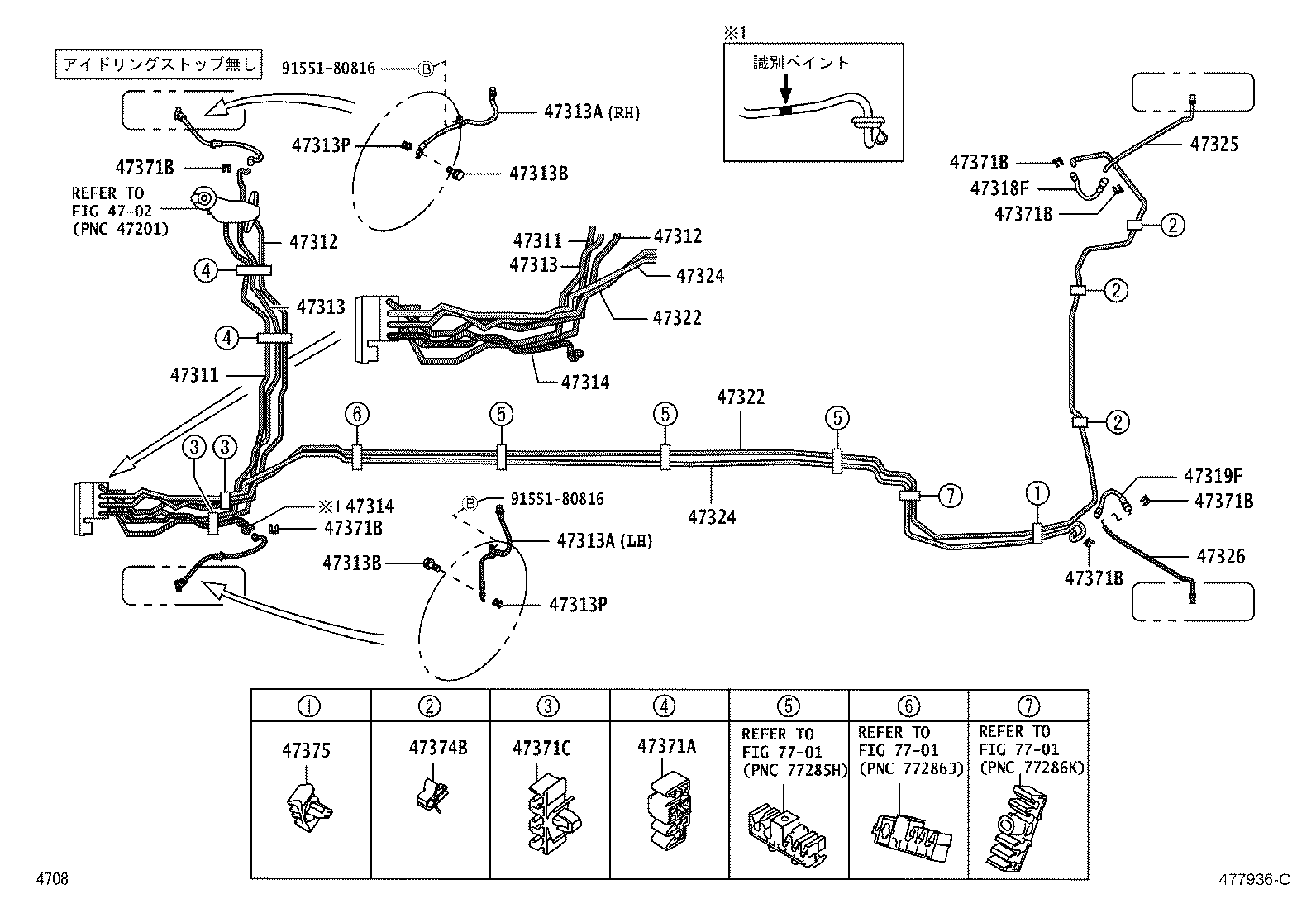

47311 - TUBE, FRONT BRAKE, NO.1
47311-B2360	L575,585..CTMX,L	09/2011 - 04/2012	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2360	L575,585..CTMX,L	09/2011 - 04/2012	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2290	L575,585..(CTMRS,CTMX,L)..PS1	09/2011 - 05/2012	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2290	L575,585..(CTMRS,CTMX,L)..PS1	09/2011 - 05/2012	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2370	L575,585..CTMX,L	09/2011 - 04/2012	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2370	L575,585..CTMX,L	09/2011 - 04/2012	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22201	L575,585..CTMG,CTMX,L,X 左側	09/2011 - 04/2012	1
90049-22200	L575,585..CTMG,CTMX,L,X 右側	09/2011 - 04/2012	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22201	L575,585..CTMG,CTMX,L,X 左側	09/2011 - 04/2012	1
90049-22200	L575,585..CTMG,CTMX,L,X 右側	09/2011 - 04/2012	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079	L575,585	09/2011 - 02/2013	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079	L575,585	09/2011 - 02/2013	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	L575,585 ｲﾗｽﾄ参照	09/2011 - 02/2013	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	L575,585 ｲﾗｽﾄ参照	09/2011 - 02/2013	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2090	L575,585..(CTMRS,CTMX,L)..PS1	09/2011 - 05/2012	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2090	L575,585..(CTMRS,CTMX,L)..PS1	09/2011 - 05/2012	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22202	L575	09/2011 - 06/2013	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22202	L575	09/2011 - 06/2013	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2310	L575..CTMX,L	09/2011 - 04/2012	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2310	L575..CTMX,L	09/2011 - 04/2012	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2350	L575..CTMX,L	09/2011 - 04/2012	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2350	L575..CTMX,L	09/2011 - 04/2012	1
47325 - TUBE, REAR BRAKE, NO.5
47325-B2060	L575	09/2011 - 06/2013	1
47326 - TUBE, REAR BRAKE, NO.6
47326-B2060	L575	09/2011 - 06/2013	1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64781	L575,585..CTMX,L	09/2011 - 04/2012	2
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	L575,585	09/2011 - 06/2013	4
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64742	L575,585..CTMX,L	09/2011 - 04/2012	2
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64659	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	3
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64485	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
Common parts
91551-80816
Linked diagrams
4702
7701

L575A-GBMF (2011)

ILLUST NO. 2 OF 2(1109-1205)CTMRS,CTMX,L..PS1

ILLUST NO. 1 OF 2(1109-1205)CTMRS,CTMX,L..PS1
