L575A-GBGF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

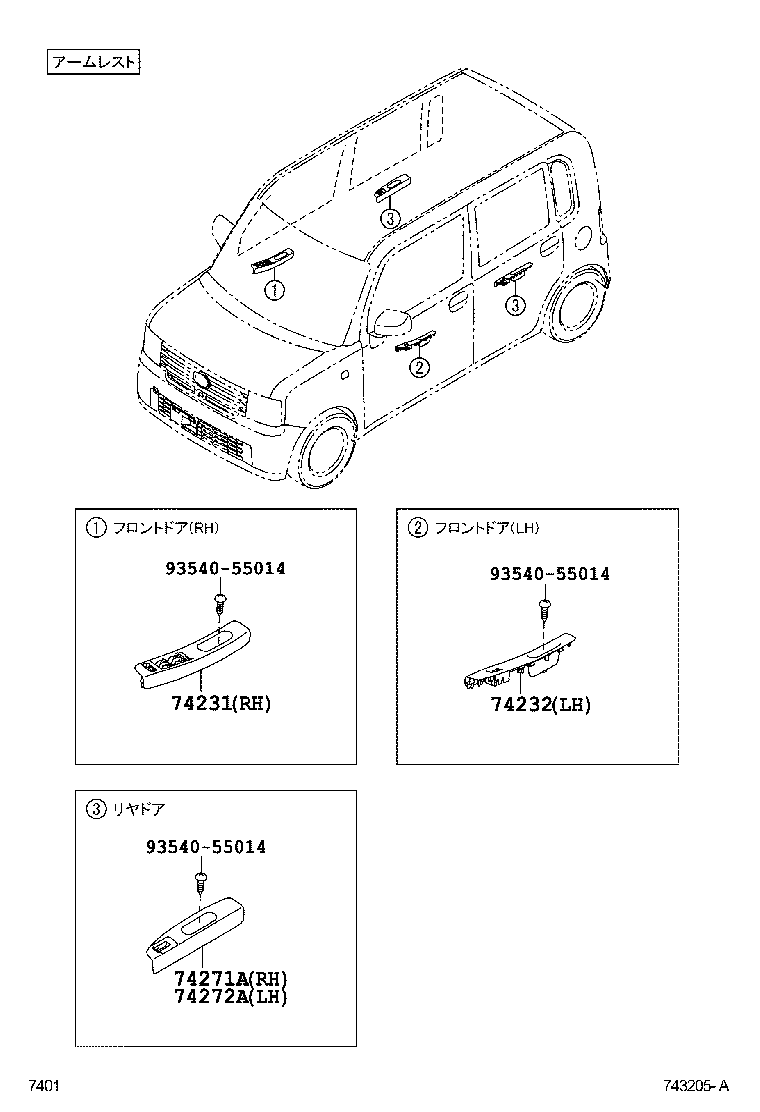

ILLUST NO. 1 OF 2(1109- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

diagram

Part #	Description	Period	Qty	Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B2090B0	L575,585..X DK.GRAY,TRIM11	09/2011 - 06/2013	1
74231-B2090B1	L575,585..L WARM GRAY,TRIM1#	09/2011 - 06/2013	1
74231-B2090B1	L575,585..X WARM GRAY,TRIM10	09/2011 - 06/2013	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B2090B1	L575,585..X WARM GRAY,TRIM10	09/2011 - 06/2013	1
74232-B2090B1	L575,585..L WARM GRAY,TRIM1#	09/2011 - 06/2013	1
74232-B2090B0	L575,585..X DK.GRAY,TRIM11	09/2011 - 06/2013	1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-B2110B1	L575,585..L WARM GRAY,TRIM1#	09/2011 - 06/2013	1
74271-B2110B0	L575,585..X DK.GRAY,TRIM11	09/2011 - 06/2013	1
74271-B2110B1	L575,585..X WARM GRAY,TRIM10	09/2011 - 06/2013	1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-B2080B0	L575,585..X DK.GRAY,TRIM11	09/2011 - 06/2013	1
74272-B2080B1	L575,585..L WARM GRAY,TRIM1#	09/2011 - 06/2013	1
74272-B2080B1	L575,585..X WARM GRAY,TRIM10	09/2011 - 06/2013	1
Common parts
93540-55014

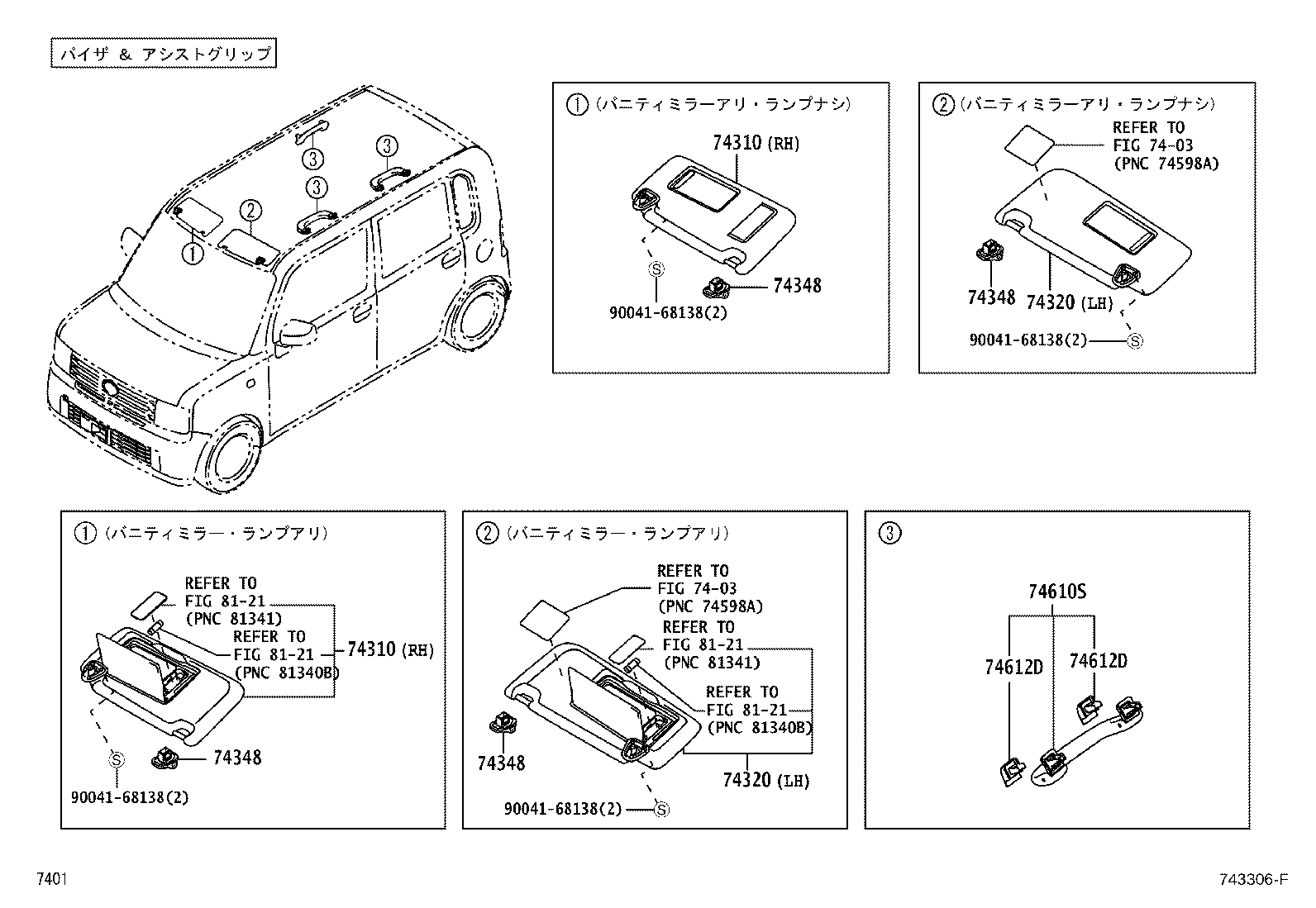

ILLUST NO. 2 OF 2(1109- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram

Part #	Description	Period	Qty	Price
74310 - VISOR ASSY, RH
74310-B2320B0	L575,585..L,X LT.GRAY,TRIM1#,ﾐﾗｰﾂｷ,ﾗﾝﾌﾟﾅｼ	09/2011 - 04/2013	1
74310 - VISOR ASSY, RH
74310-B2320B0	L575,585..L,X LT.GRAY,TRIM1#,ﾐﾗｰﾂｷ,ﾗﾝﾌﾟﾅｼ	09/2011 - 04/2013	1
74320 - VISOR ASSY, LH
74320-B2630B0	L575,585..L,X LT.GRAY,TRIM1#,ﾐﾗｰﾂｷ,ﾗﾝﾌﾟﾅｼ	09/2011 - 04/2013	1
74320 - VISOR ASSY, LH
74320-B2630B0	L575,585..L,X LT.GRAY,TRIM1#,ﾐﾗｰﾂｷ,ﾗﾝﾌﾟﾅｼ	09/2011 - 04/2013	1
74348 - HOLDER, VISOR
74348-97401B2	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	2
74348 - HOLDER, VISOR
74348-97401B2	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	2
74348 - HOLDER, VISOR
74348-97401B2	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	2
74348 - HOLDER, VISOR
74348-97401B2	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	2
74610S - GRIP ASSY, ASSIST
74610-B2030B0	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	3
74612D - COVER, ASSIST GRIP
74612-B2070B0	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	6
74612D - COVER, ASSIST GRIP
74612-B2070B0	L575,585 LT.GRAY,TRIM1#	09/2011 - 06/2013	6
Common parts
90041-68138
Linked diagrams
7403
8121
